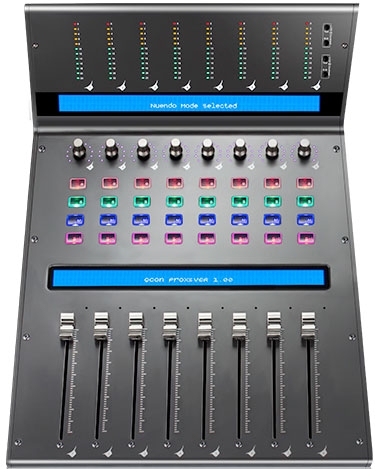

Icon Pro Audio Qcon Pro XS
8 touch-sensitive motorized faders with 10-bit resolution, 12-segment LED level metering bridge USB DAW Control Surface
Expand and command your Digital Audio Workstation (DAW) by adding true tactile control via USB2.0.
Pro X is a control surface designed to get you out of "the box" of your computer and into your music. Record and mix without always having to point and click QCon Pro X puts the functions of your DAW at your fingertips by providing you with nine (9) full sized motorized faders, eight (8) rotary dual-function encoders, two (2) large backlit LCD screens, LED volume metering, a jog wheel and plenty of buttons to press. Adjust multiple volume or pan levels simultaneously. Mute or solo numerous tracks on the fly. Use the transport section to conveniently play, stop, fast forward, rewind, record, loop, zoom, punch in and punch out of your compositions. Spin the nicely sized jog wheel to scrub through tracks and address areas of special interest. Dedicated buttons also allow you to access your entire mix by banking across tracks in groups of 8 or 1 track at a time.
CONTROL ANY DAW
QCon Pro X is a powerful control surface for any DAW. Integration is most easily facilitated using any one of our DAW specific custom modules. Simply select the module for your DAW, follow the easy install procedure, and QCon Pro X will use Mackie Control or HUI protocol to provide seamless interfacing with your DAW's functions. We offer modules to support the most popular DAWs including Cubase, Nuendo, Ableton Live, ProTools, Logic, Reason, Studio One, Bitwig, Samplitude and Reaper. Once QCon Pro X is linked to your DAW, then it will always boot up in the proper configuration; even after being powered off. If you have a module installed for one DAW, and want to use a different DAW, then no worries. You can still go into manual mode and select any of the other supported DAWs from a list displayed on the QCon Pro X LCD upon boot-up. Even if your DAW is not supported by a custom module, then you can still map its functions to QCon Pro X using our intuitive MIDI learn mode.
CONTROL YOUR PLUGINS AND AUTOMATION TOO
QCon Pro X also gives you tactile control of your VST, RTAS, Direct X and AU Plugins. Dial in EQ frequencies, Q or gain with the rotary encoders. The values of different parameters are shown on the upper LCD screen. Control Virtual Instruments as well. There's also a "FLIP" button for fader control of plug-in parameters. Automation of track and plugin parameters is also made easy with QCon Pro X. Write fader rides just like you would on any large format analog console using buttons for familiar functions like GROUP, WRITE, TOUCH, LATCH and TRIM. QCon Pro X is also scalable. Expand in groups of 8 up to 32 channels. Expansion modules will be available soon, so you can create a custom surface to fit your needs. With the QCon Pro X you get the best of both worlds; the total recall, power and flexibility of your DAW with the look, feel and functionality of a sturdy piece of hardware.
8 touch-sensitive motorized channel faders with 10-bit resolution12-segment LED level metering bridge equipped for channel (mono) level metering (Angled and located at the top for easy reading)8 x dual function encoder knobs (Enter & rotate)The multi-colour surround LED display will change colour according to the controlling parameter for easy control (Cubase only)11-segment LED surrounding the encoders to indicate the rotating position.Large dual backlit LCD displays show channel name (lower LCD) and different control parameters (upper LCD) for each channelExpandable to 32-channels control surface with 3units of QconProXSClass-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit), Windows 8 (32-bit & 64-bit), Windows 10 (64-bit) and Mac OS X (IntelMac)USB 2.0 high speed connectivityMackie control build-in for Cubase, Nuendo, Samplitude, Logic Pro, Studio One, Bitwig, Reason and Abelton Live.Mackie HUI protocol build-in for Pro ToolsiMap - Self midi mapping software is provided for user-defined mode (MIDI Learn)Firmware upgrade available simply via USB connection and iMap software.Superior build quality and robust metal casing with Kensington lock port12V/2.5A power adapter includedDimensions: 18.62"(L) x 12.17"(W) x 7.4"(H).
Connector: To computer: USB connector (standard type)
Connector: To extender : USB connector (B-Type)
Power supply: 12V2.5A DC
Current consumption: 2A or less
Weight: 6kg (13.2lb)
Dimensions: 473(L) x 416(W) x 188(H)mm
Dimensions: 18.62"(L) x 16.38"(W) x 7.4"(H)
