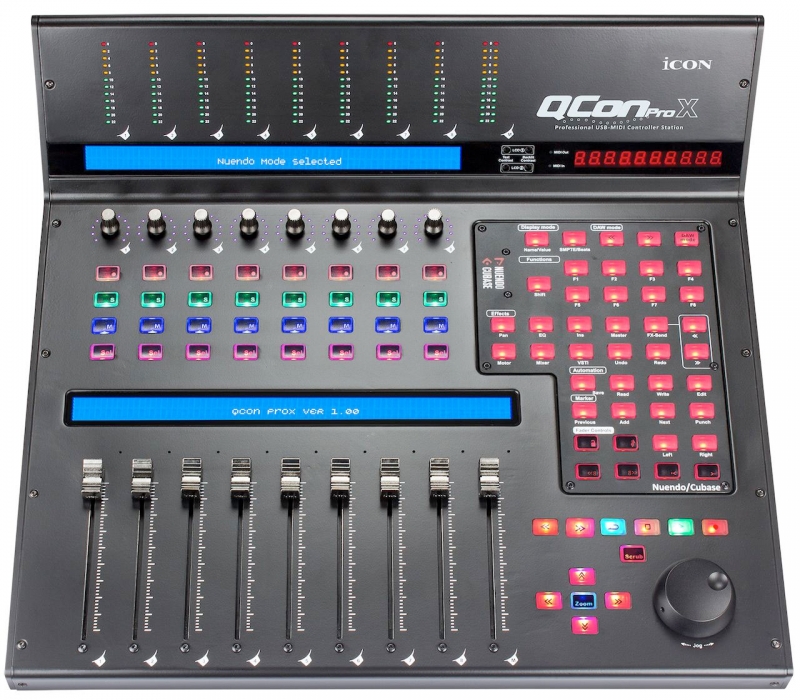

Icon Pro Audio QCon Pro X
8+1 touch-sensitive motorized faders with 10-bit resolution USB DAW Control Surface
Expand and command your Digital Audio Workstation (DAW) by adding true tactile control via USB2.0. The all new QCon
Pro X is a control surface designed to get you out of "the box" of your computer and into your music. Record and mix without always having to point and click QCon Pro X puts the functions of your DAW at your fingertips by providing you with nine (9) full sized motorized faders, eight (8) rotary dual-function encoders, two (2) large backlit LCD screens, LED volume metering, a jog wheel and plenty of buttons to press. Adjust multiple volume or pan levels simultaneously. Mute or solo numerous tracks on the fly. Use the transport section to conveniently play, stop, fast forward, rewind, record, loop, zoom, punch in and punch out of your compositions. Spin the nicely sized jog wheel to scrub through tracks and address areas of special interest. Dedicated buttons also allow you to access your entire mix by banking across tracks in groups of 8 or 1 track at a time.
CONTROL ANY DAW
QCon Pro X is a powerful control surface for any DAW. Integration is most easily facilitated using any one of our DAW specific custom modules. Simply select the module for your DAW, follow the easy install procedure, and QCon Pro X will use Mackie Control or HUI protocol to provide seamless interfacing with your DAW's functions.
We offer modules to support the most popular DAWs including Cubase, Nuendo, Ableton Live, ProTools, Logic, Reason, Studio One, Bitwig, Samplitude and Reaper. Once QCon Pro X is linked to your DAW, then it will always boot up in the proper configuration; even after being powered off.
If you have a module installed for one DAW, and want to use a different DAW, then no worries. You can still go into manual mode and select any of the other supported DAWs from a list displayed on the QCon Pro X LCD upon boot-up. Even if your DAW is not supported by a custom module, then you can still map its functions to QCon Pro X using our intuitive MIDI learn mode.
CONTROL YOUR PLUGINS AND AUTOMATION TOO
QCon Pro X also gives you tactile control of your VST, RTAS, Direct X and AU Plugins. Dial in EQ frequencies, Q or gain with the rotary encoders. The values of different parameters are shown on the upper LCD screen. Control Virtual Instruments as well. There's also a "FLIP" button for fader control of plug-in parameters.
Automation of track and plugin parameters is also made easy with QCon Pro X. Write fader rides just like you would on any large format analog console using buttons for familiar functions like GROUP, WRITE, TOUCH, LATCH and TRIM. QCon Pro X is also scalable. Expand in groups of 8 up to 32 channels. Expansion modules will be available soon, so you can create a custom surface to fit your needs.
With the QCon Pro X you get the best of both worlds; the total recall, power and flexibility of your DAW with the look, feel and functionality of a sturdy piece of hardware.
8+1 touch-sensitive motorized faders with 10-bit resolution12 segment LED meter bridgeStereo LED master channel level metering on metering bridge8 Dual function encoders with multi-color LED indication ring11-segment multi-color LED surrounding the encoders to indicate the rotation positionDual 2x56 large backlit LCDs to display channel name, control values etc. for each channel12-segment LED display showing time location of your project in either SMPTE or BBT format18 assignable buttonsJog shuttle wheel for scrubbing, fast search and controlIlluminated buttons for each channel including Record Enable, Solo, Mute, Select and Monitor6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and LoopIlluminated ZOOM button with 4 direction buttons9 illuminated assignable MIDI function buttonsExpandable to 32-channels using 3 QCon XS expander units (coming soon)Optional expander units with motorized joysticks for surround sound mixing, extra button units and extra Two (2) 1/4" connectors for foot switches and pedalsAutomatic and manual mode switch for accessing different DAW modesClass-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit), Windows 8 (32-bit & 64-bit), Windows 10 (32-bit & 64-bit) and Mac OS XUSB 2.0 high speed connectivityICON "Quick-Setup" driver is available for Cubase, Nuendo, Reason and Bitwig for instant plug & play compatibilityOptional automatic DAW detection mode is available for Cubase, Nuendo, Ableton Live, ProTools, Logic, Reason, Studio One, Bitwig, Samplitude and Reaper via custom moduleBuilt-in Mackie Control for all DAWs listed (except for ProTools which uses Mackie HUI Protocol)PVC overlays are included for all DAWs listed (except Cubase and Nuendo which is the stock module)Bundled with ICON edition Cubase LE and Samplitude LEUser self-defined (MIDI Learn) mode for other DAWs not supported with presetsEasy firmware upgrade available via USB connection and iMap softwareSuperior build quality and robust metal casing with Kensington lock port

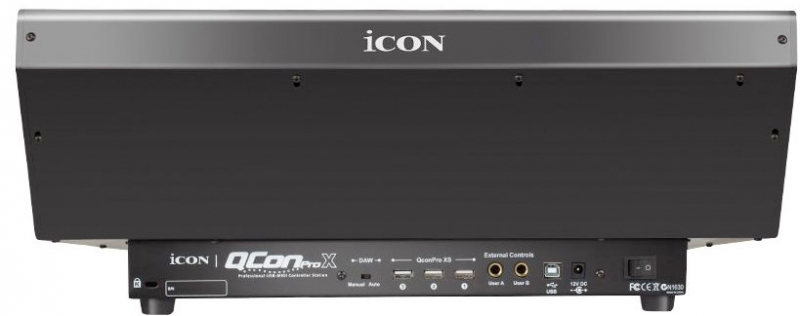

Connector: To computer: USB connector (standard type)
Connector: To extender : USB connector (B-Type)
Power supply: 12V2.5A DC
Current consumption: 2A or less
Weight: 6kg (13.2lb)
Dimensions: 473(L) x 416(W) x 188(H)mm
Dimensions: 18.62"(L) x 16.38"(W) x 7.4"(H)
Write a review about the Icon Pro Audio QCon Pro X
September 7, 2019
Pari +/- réussi
Cette alternative potentielle au Mackie Control Universal remplit plus ou moins ses promesses. Bien que je donne raison aux reviews web positifs sur la QCon, mon expérience n'a pas été positive. Mon unité avait un problème mécanique de faders connu par la compagnie. Read more
Apparemment, les nouveaux modèles sont corrects. Les boutons sont assez rigides, la barre LED sur la piste Master ne fonctionne pas, le manuel est plutôt cryptique, le site web, mal organisé, et pour changer l'assignation midi CC des touches, il faut passer par un logiciel peu intuitif... Ça pourrait être vraiment cool comme surface de contrôle, mais le manque de finition se fait sentir. Je préfère retourner l'unité et investir plus dans une valeur sûre.
July 16, 2017
The faders make too much noise and are not moving smoothly. The master level led does not work with any software and the company claims it's a problem with the mackie protocol, which is just ridiculous. All the other LEDs work so why can't they figure Read more
out how to get it to work?
May 25, 2017
Excellente surface de controle Midi-USB
Je cherchais une surface de contrôle abordable me permettant de moins utiliser la souris et d'avoir une meilleur ergonomie de travail et le QCon Pro X a parfaitement rempli ce rôle. Les curseurs et les potentiomètres sont de bonne construction et le Read more
fonctionnement se moule à merveille à Logic Pro X.
