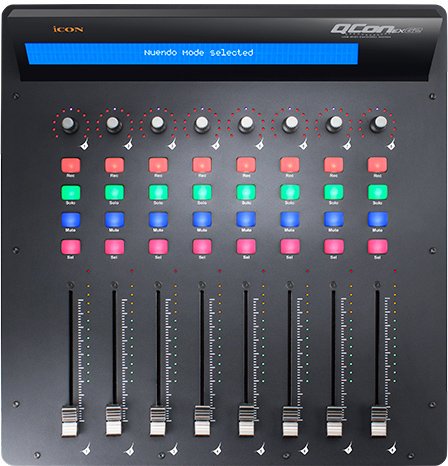

Icon Pro Audio QCon Pro EX G2
Eight channel extender for the QCon Pro G2 universal control surface
The QCon EX provides eight additional channels to your QCon Pro system allowing you to expand your system to 32 channels with three QCon EX G2 extenders.
Whether you are tracking or mixing, the QCon EX G2 provides intuitive tactile control over your session. Set your levels, fine tune your EQs and effects, record automation, punch in and out of recordings, all at the tip of your fingers. The QCon EX G2 is outfitted with eight motorized faders, eight multi-purpose push encoders, and 2 foot pedal connectors. 12-segment LED level meters are provided for each channel, and a large backlit LCD screen displays channel names and parameter values.
The Icon Pro Audio QCon EX G2 controls your favorite digital audio workstation with Mackie Control or HUI emulation (for Pro Tools) and includes presets for several popular DAWs including Cubase/Nuendo, Logic Pro, Ableton Live, ProTools, Studio One, Digital Performer, FL Studio, Samplitude, Reaper, Bitwig, Reason, Sonar, and Audition. A User Defined mode is also included to create custom presets and midi mapping.
The QCon EX G2 is class-compliant with Windows XP, Vista, Windows 7/8/10, and Mac OS X and features a high speed USB 2.0 connection.
8 touch-sensitive motorized channel faders12-segment LED level metering for channels1 touch-sensitive motorized fader for master channel8 x dual function encoder knobs (Enter & rotate)11-segment LED surrounding the encoders to indicate the rotating positionLarge backlit LCD to display channel name, control values etc. for each channelMackieControl and HUI Universal emulationiMap - Self midi mapping software is provided for user-de ned mode (MIDI Learn)Class-compliant with Windows XP, Vista (32-bit), Windows 7/8/10 (32-bit & 64-bit), and Mac OS X (IntelMac)USB 2.0 high speed connectivityFirmware upgrade available simply via USB connection and iMap softwareRobust aluminum and metal casing with Kensington lock port
Connector: USB connector (standard type)
Power supply: 12V2.5A DC
Current consumption: 2A or less
Weight: 4.521kg (9.9lb)
Dimensions: 358(L) x 375(W) x 136(H)mm
Dimensions: 14.09"(L) x 14.76"(W) x 5.35"(H)
