Heritage Audio LANG-312L
UPC/EAN #699838691315
MPN #LANG-312L
500-series preamp offering up to 90 dB of gain, ultra-low noise, built-in +25 dB lifter, features transformer-balanced inputs and fast transient response for vibrant sound

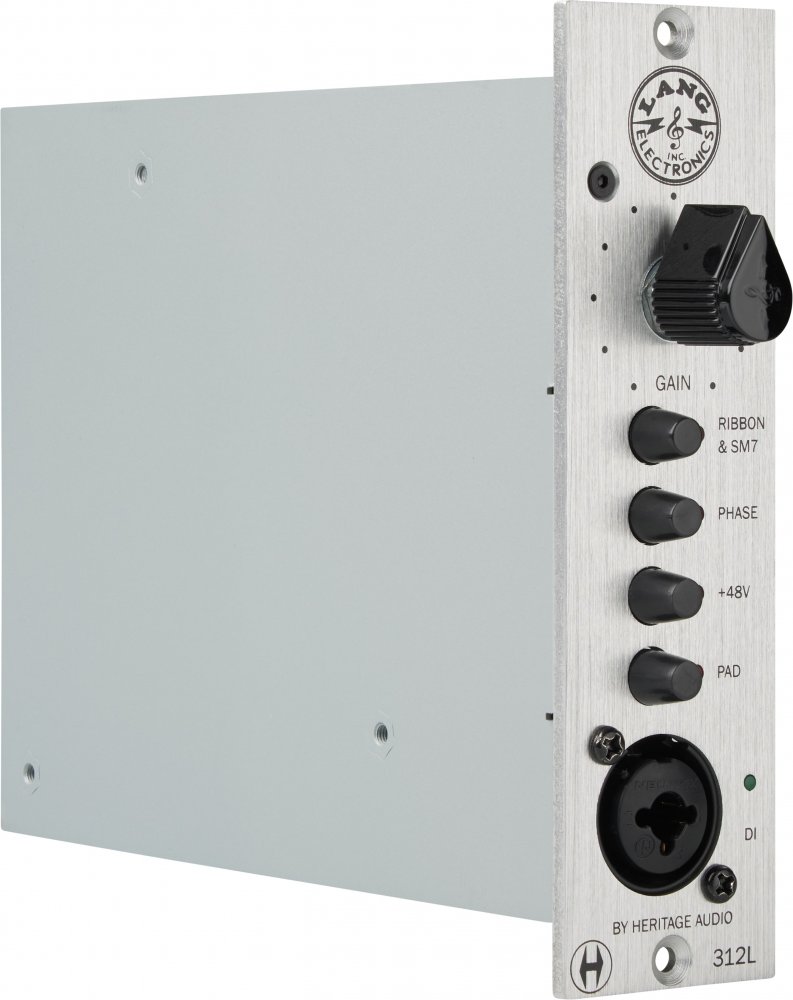

The LANG 312L is a high-performance 500-series preamp designed to capture the powerful, dynamic energy associated with classic New York-style audio processing. Ideal for studio enthusiasts and professionals alike, this preamp delivers exceptional sound quality and versatility, all at a fraction of the cost of similar units. With up to 90 dB of gain, it's more than capable of driving even the most gain-hungry microphones, like ribbons and vintage mics, without the need for external boosters. This allows users to unlock the full potential of their microphones, delivering sound quality that's clear, responsive, and free from unwanted noise.

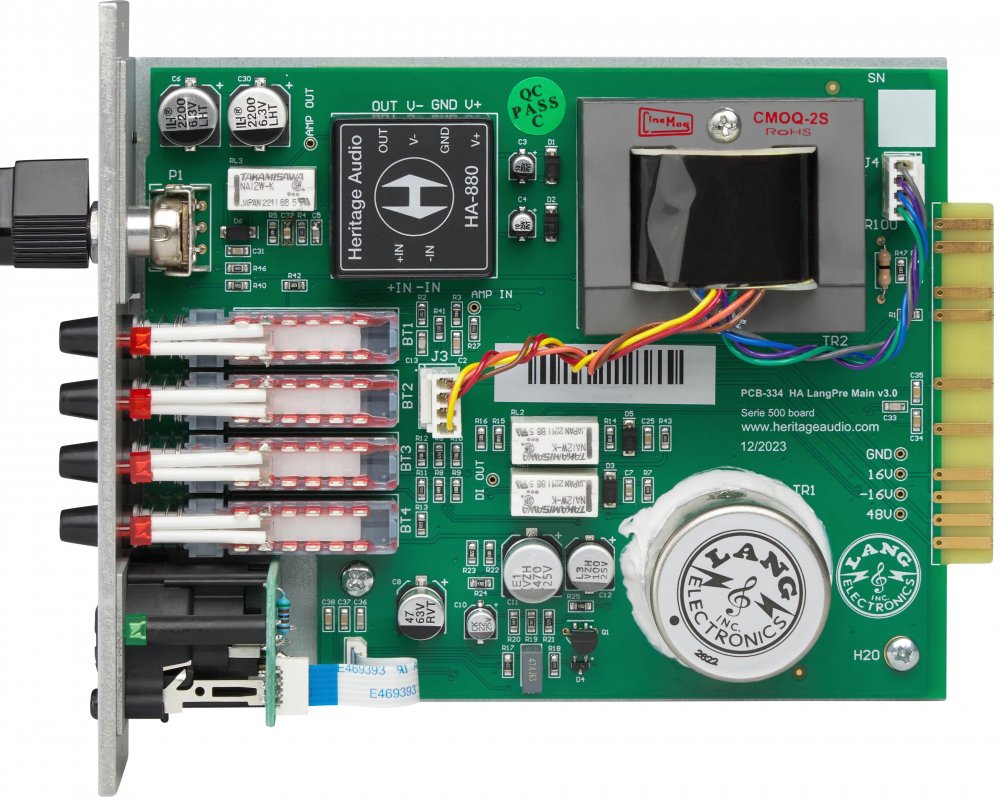

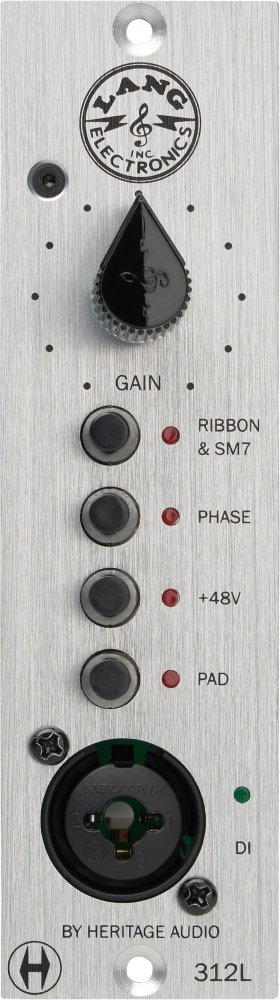

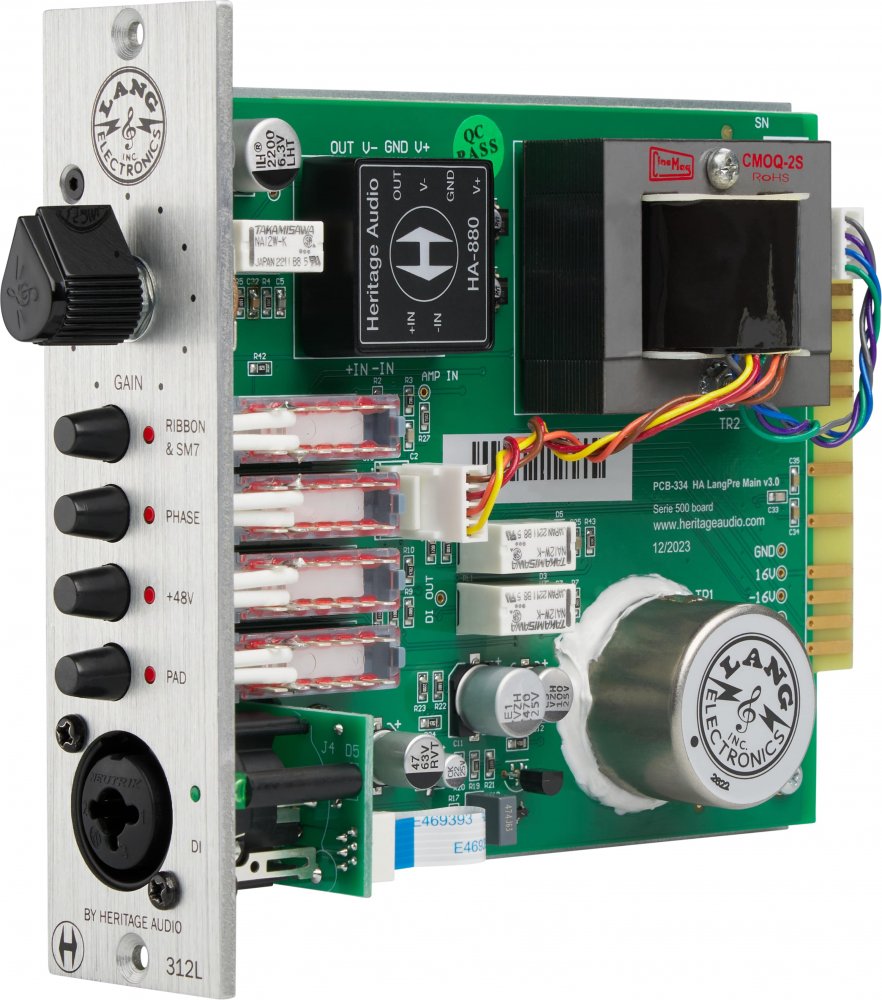

Equipped with custom-made HA-880 op-amps, CineMag transformers, and switchable features like 48V phantom power, a -20 dB pad, and phase reversal, the LANG 312L is tailored for a variety of recording needs, from vocals to instruments. Its front-panel XLR/TS combo jack provides easy access for different input types, while the built-in +25 dB lifter ensures pristine audio performance even in challenging setups. All of this comes in a compact, single-space 500-series module that is ready to bring professional sound to your recordings with legendary NYC flavor.
Features
Delivers powerful New York-style preamp sound at an affordable price.Offers up to 90 dB of gain, ideal for any microphone, including ribbon and vintage mics.Built-in +25 dB lifter removes the need for external gain boosters.Low internal noise ensures clear and dynamic audio performance.Custom HA-880 op-amp and CineMag output transformer for professional-grade sound.Features switchable 48V phantom power, -20 dB pad, and phase controls.Includes a front-panel XLR/TS combo jack with DI for instruments and mic inputs.Fits in a single-space 500-series module, compatible with 500-series racks.
Specifications
General Specifications
500-series NY style preampBuilt-in +25 dB lifter for gain-boosting microphonesSingle-space 500-series module; requires compatible 500-series rackGain range: +15 dB to +90 dBCustom HA-880 footprint compatible op-ampCineMag output transformer (custom-made in the US)Exclusive LANG 2622 input transformer (designed by Heritage Audio)Ultra-low noise floor: EIN -130 dBu48V phantom power-20 dB pad and phase switchFront-panel XLR/TS combo jack (TS hi-Z instrument DI and XLR mic inputs)
Inputs/Outputs
Microphone input impedance: High = 1200 ?, Low = 300 ? (transformer balanced and floating)Line input impedance: 10 k? (transformer balanced and floating)D.I. input impedance: Greater than 2 M? (unbalanced)Output impedance: Less than 75 ? (transformer balanced and floating)
Performance
Maximum output: Greater than +26 dBu into 600 ?Frequency response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB)Total harmonic distortion (THD): Less than 0.025% at 1 kHz, Less than 0.05% at 100 HzEquivalent input noise (EIN): Less than -130 dBuOptimized for ribbon, vintage, and condenser microphones
Additional Features
No external gain boosters needed for high-gain micsIdeal for broadcasting and recording with thick, solid signal output1970s NY-inspired design at a competitive priceDimensions (W x H x L): 38 mm x 135 mm x 150 mmPower consumption: Less than 86 mA per rail @ ±16 V DC
