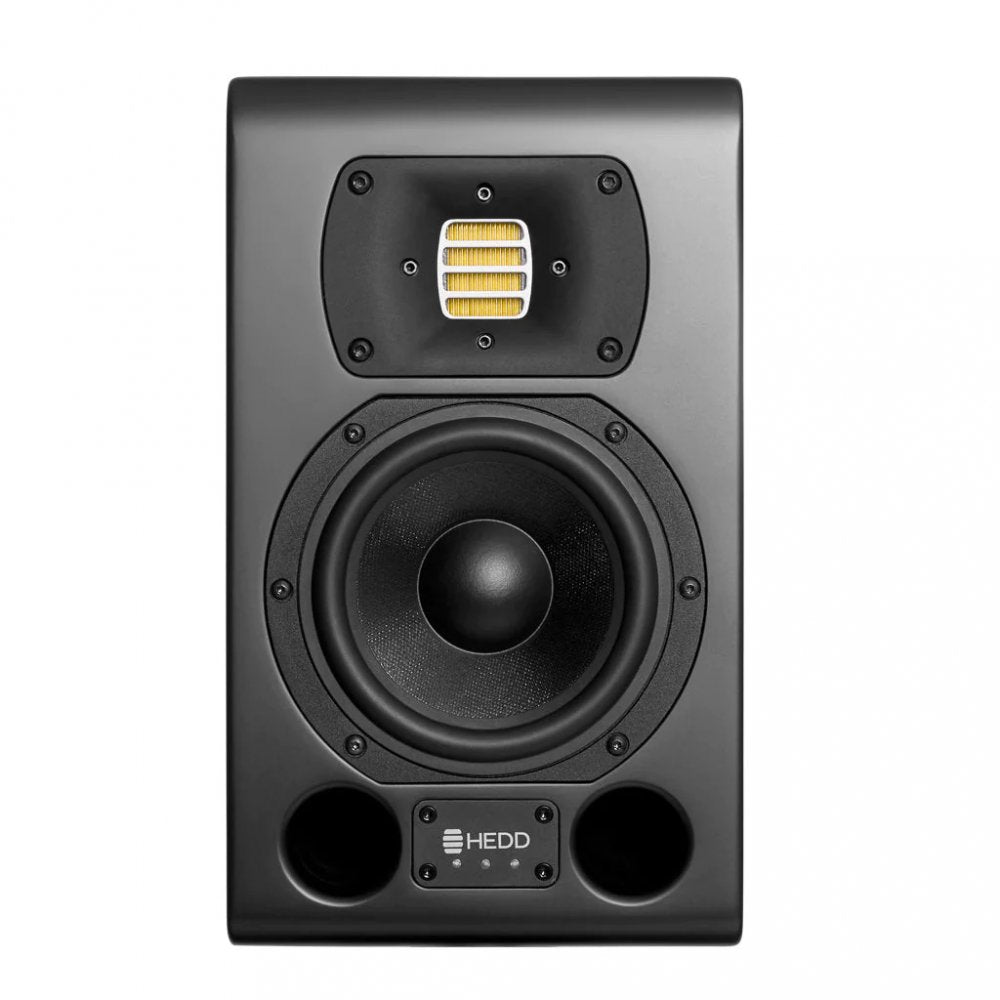

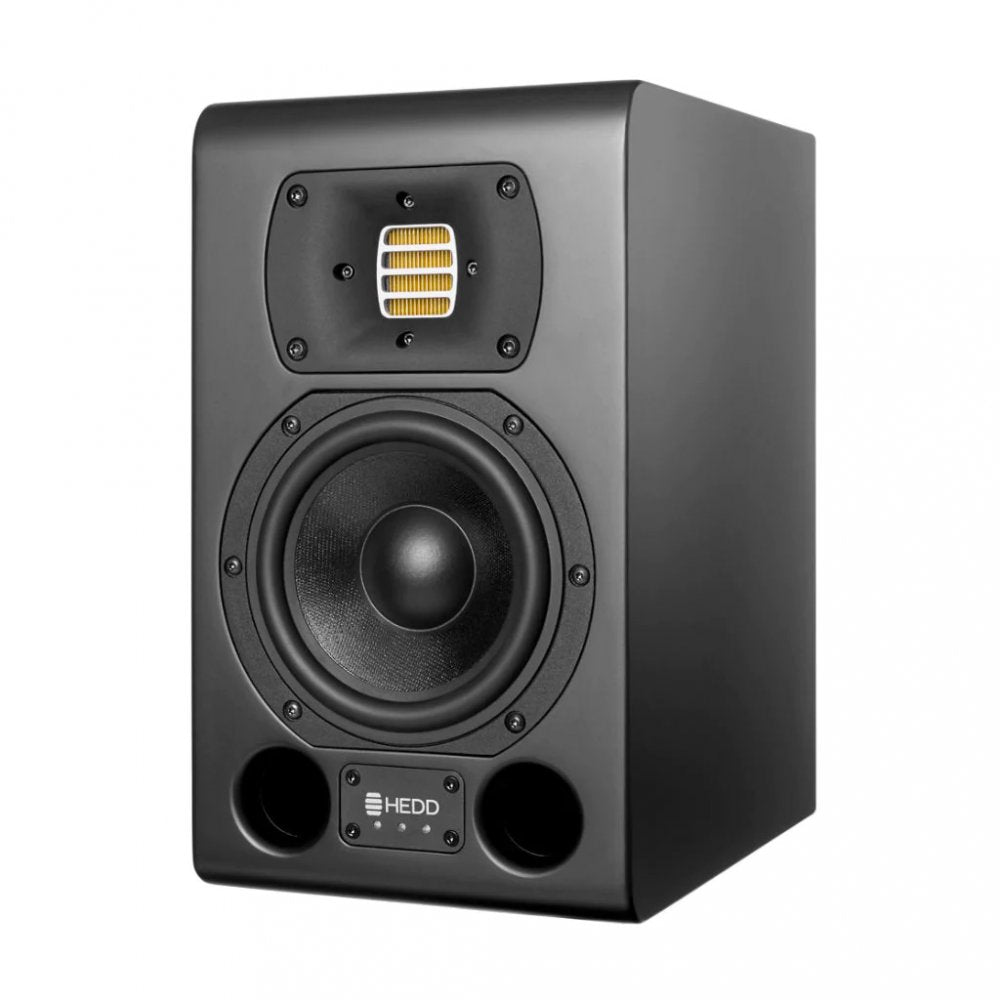

Hedd Audio Type 05 MK2 Black
UPC/EAN #007457603754007
MPN #F-038
Two-way active studio monitor with 200W power and DSP, black
Behold a speaker that defies its size, offering a breathtaking audio experience.
Experience the epitome of compact power that delivers unrivalled clarity, unveiling every sonic detail with astonishing precision.
Air Motion Transformer
Handmade in Berlin using high quality components, the HEDD Air Motion Transformer puts HEDD's expertise at your disposal to deliver impeccable transient response and ultra-high frequency extension. As a result, high frequencies remain transparent and linear and do not distort natural sound reproduction in any way.
Lineariser
HEDD Lineariser is an optional function that eliminates speaker-related time delays improving transient response and imaging precision. The phase correction can be synched with our BASS subwoofer range to compensate for group delay in a sat-sub system.
CoP: Closed or Ported
Emerging from extensive research into the HEDD Tower Mains System, the Closed or Ported functionality allows all HEDD MK2 monitors to switch between two designs with the flip of a switch and the use of a plug.
While Ported (open), the monitors can deliver the voluminous bass response with impressive sound extension you'd expect. Seal the bass ports with the plug and experience a new level of bass precision, texture details, and low-end harmonics.
Designed and made in Berlin
Heinz ElectroDynamic Designs (HEDD) is a German manufacturer of high-end studio loudspeakers and HEDDphones founded by Industry Legend Klaus Heinz and his son, Musicologist Dr. Frederik Knop.
Drawing on a rich history in audio creation and reproduction, the company designs and handcrafts its products in Berlin since 2016.
Features
5" honeycomb wooferHigh definition HEDD Air Motion TransformerPowerful SHARC-DSP and onboard LineariserR flatten speaker phase and create fascinating stereo image and depthClosed or Ported functionality for two distinct sound experiences: accurate and detailed (closed) or energetic and bassy (ported)Complete linear phase Satellite-Subwoofer setup with BASS 08 subwoofersDesktop and shelving filtersBass-extension modeAluminum pot controlsAnalog XLR and Digital AES connections
Specifications
Main Features
HEDD Lineariser, CoP, GDC, LFE, Desk and Shelf Filters
DSP Integration
Custom high-resolution 96 kHz / 32 Bit AD / DA converter
Drivers
5" Woofer (1,5" voice coil) + HEDD AMT Tweeter
Power
2x100 W ICEpower amplification (85-264 V)
Crossovers
2.500 Hz
Frequency Range
45 Hz - 40 kHz (LFE: 38 Hz - 40 kHz)
Maximum SPL
112 dB SPL (sound pressure level) per pair at 1m

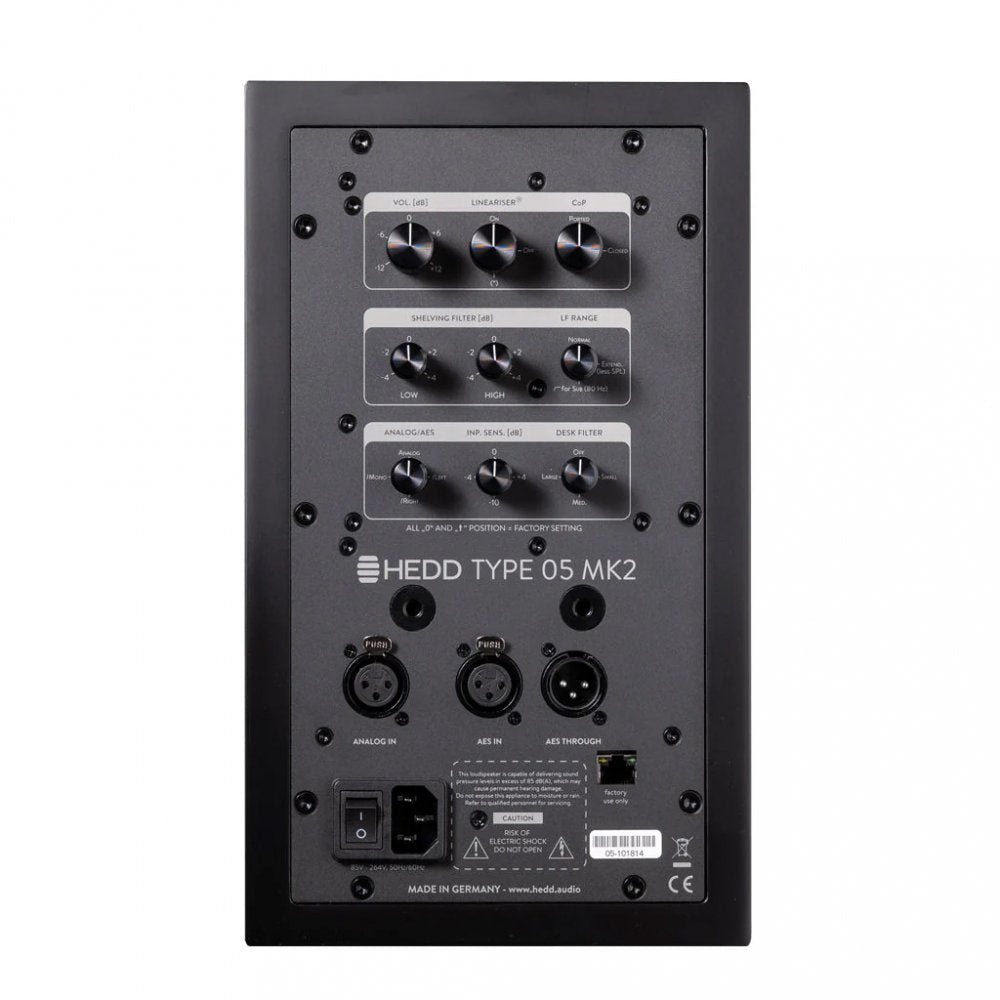

Inputs
Analog (XLR / 22 k?) and Digital 2ch (AES / XLR)
Output
Digital AES pass-through via XLR
Dimensions
308 x 180 x 245 mm
Weight
6.4 kg per unit
