16-channel monitor mixer with ADAT optical and HearBus outputs

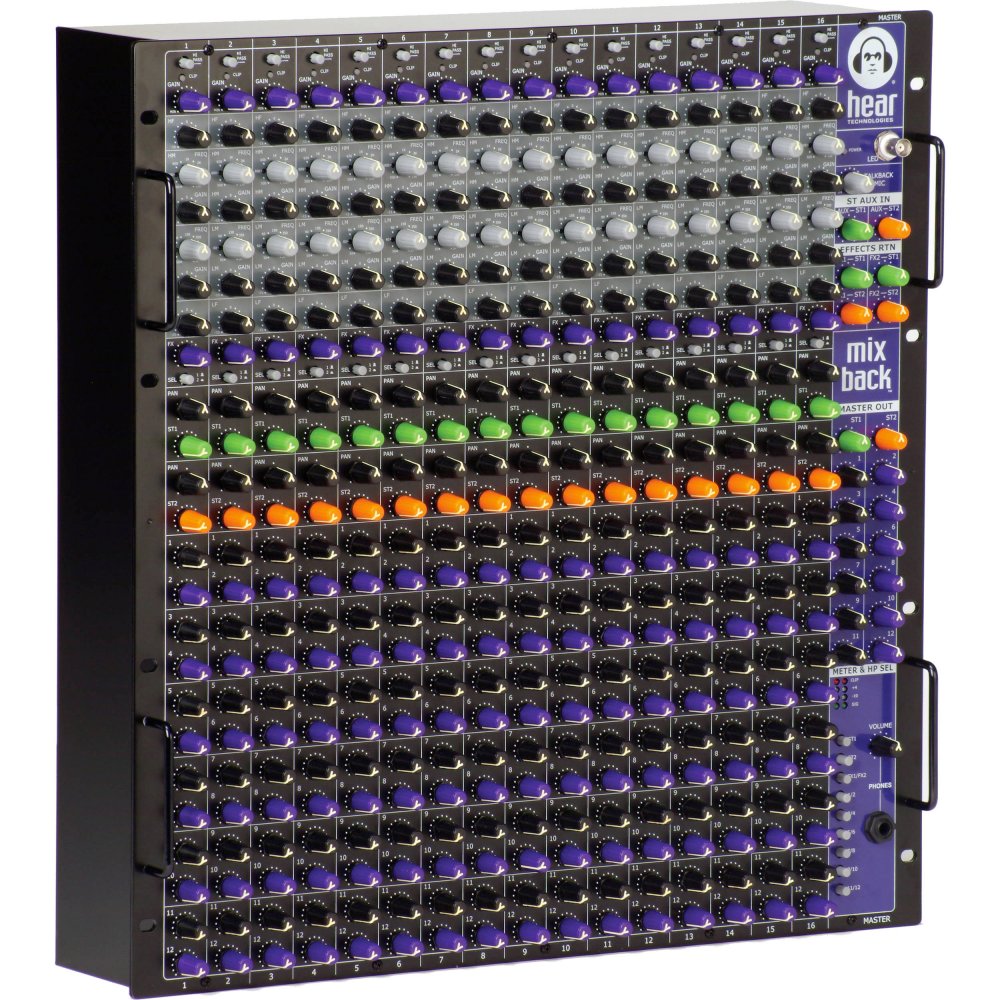

The Mix Back is a flexible and affordable 16 x 12 x 2 x 2 monitor mixer that features two stereo outputs and twelve mono outputs. There are sixteen high quality Mic/Line inputs with passive split. It also features two HearBus outputs and two ADAT optical outputs. A perfect companion to our Hear Back personal monitor system. A talkback mic preamp permits talking to any mono output, master outputs and the intercom output.

Included is a UV LED gooseneck lamp that makes the knob pointers and silkscreen on the front of Mix Back glow-in-the-dark!

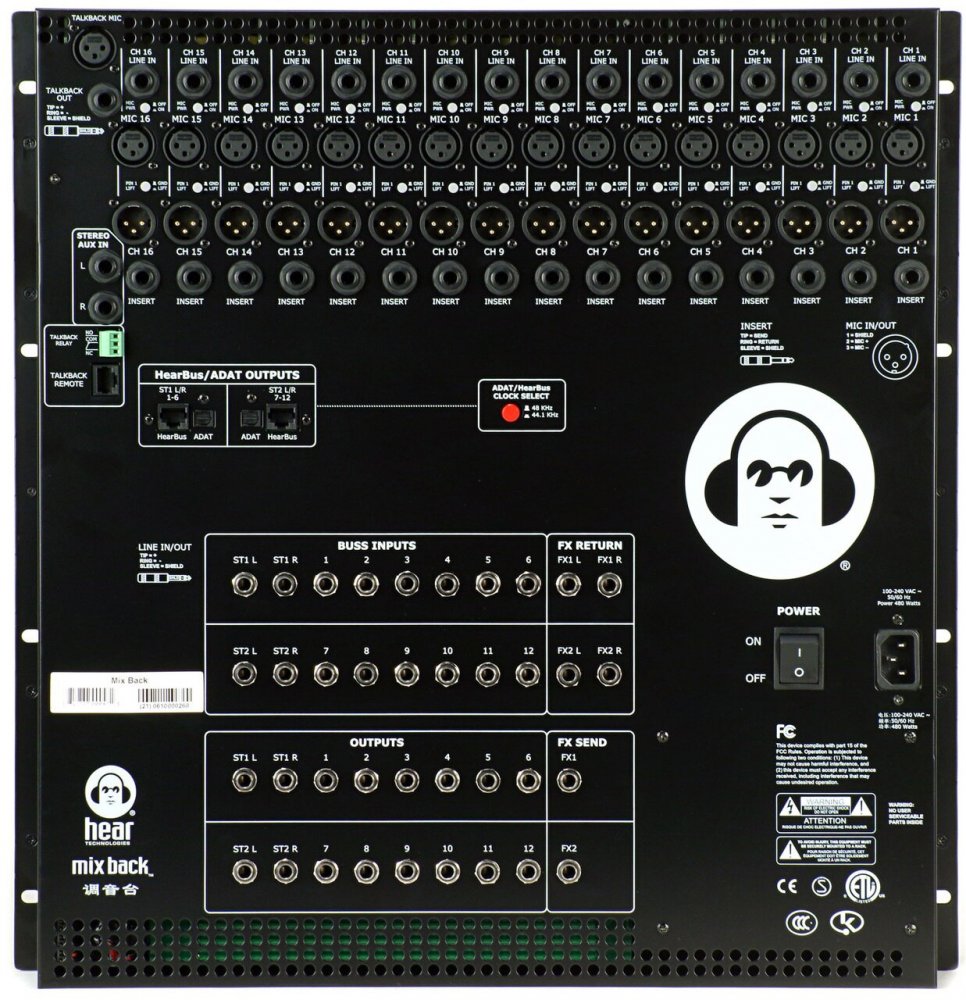

Outputs
  • ST1 L/R
  • ST2 L/R
  • Mono 1-12
  • FX1 Send
  • FX2 Send
  • Talkback output
  • Talkback Relay
  • ADAT - 16 Channels
  • HearBus - 16 Channels

  • Inputs
  • ST1 L/R
  • ST2 L/R
  • Mono 1-12
  • FX1 L/R
  • FX2 L/R
  • Stereo Aux inputs
  • Talkback Mic
  • Talkback remote Control
  • Input Channel Features:
  • 16 quality Mic/Line inputs with passive XLR split
  • Pin 1 lift and Mic phantom power switches
  • Channel inserts
  • Signal/Clip LED indicator
  • 100 Hz high-pass filter
  • Gain control
  • 4 band EQ with separate controls for sweep and cut/boost on mid bands
  • Two stereo level and pan controls (ST1 and ST2)
  • Twelve mono level controls (1-12)
  • Switch selectable effects 1-2 sends

  • Master Features:
  • 2 stereo and 12 mono TRS outputs
  • Switch selectable meter/headphone monitoring
  • 2 stereo TRS balanced effect returns
  • Switch assignable FX1/FX2 returns to the 12 mono masters
  • Stereo Aux return with level controls to both stereo busses - great for FOH mix or the studio "two mix"
  • Buss inputs permit stacking of multiple mixers
  • Talk back mic preamp assignable to stereo masters 1 and 2, mono outputs 1-12, and the balance Intercom/slate output
  • Relay contact when the talk back intercom switch is pressed

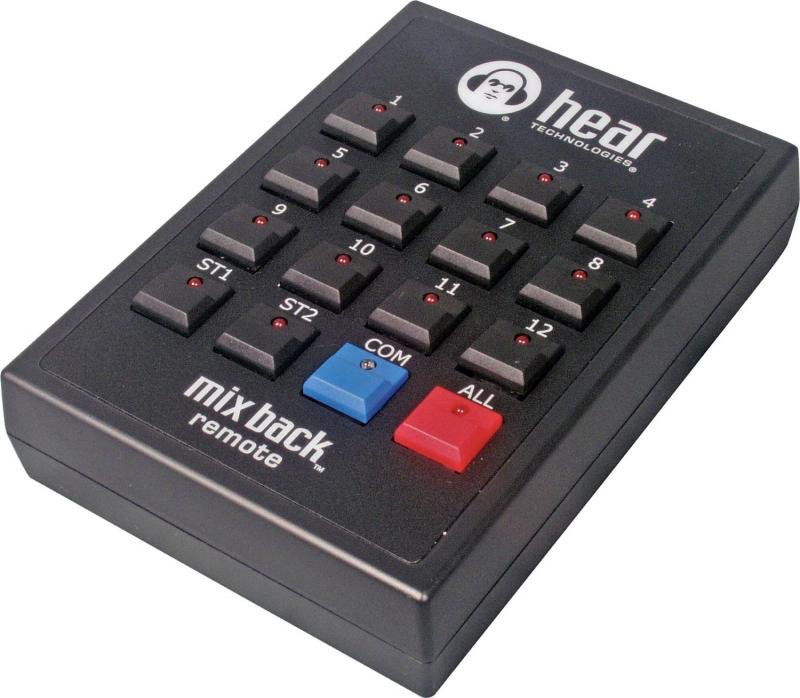

  • 16 button talkback remote connects using standard CAT5e cable
  • 16 channels of ADAT and HearBus output

  • Other Features:
  • Universal internationally approved internal power supply
  • 11 RU chassis
  • All analog inputs and outputs are balanced
  • Passive Microphone Split (Each Channel)
    Mic In to Mic Out: Passive
    Mic Power: +18 VDC
    Pin 1 Lift: Output XLR

    Mic Input to Insert Output
    Conditions: +14 dBu input, Gain full CCW, 150 Ω, Balanced
    Frequency Response:
    20 Hz to 20 KHz, +/- 0.05 dBu
    10 Hz to 120 KHz, +/- 0.3 dBu
    THD+N: 0.002%, 22 Hz to 22 KHz, unweighted
    IMD: 0.004%
    EIN: -121 dBu, 150 Source, -40 dBu input

    Mic Pre to Master Output
    Conditions: 0 dBu input, Gain full CCW, 150 Ω, Balanced
    Frequency Response: 20 Hz to 20 KHz, +/- 0.5 dBu
    THD+N: 0.004%, 22 Hz to 22 KHz, unweighted
    IMD: 0.004%
    Maximum Gain: 60 dBu, EQ Flat

    Line Inputs to Insert Outputs
    Conditions: +18 dBu input, Gain full CCW, 150 , Balanced
    Frequency Response: 20 Hz to 20 KHz, +/- 0.3 dBu
    THD+N: 0.005%, 22 Hz to 22 KHz, unweighted
    IMD: 0.005%
    Maximum Gain: 10K , balanced
    Attenuation: 18 dB

    Channel Equalization
    Hi Frequency: 10 KHz shelving, +/- 15 dB
    Hi Mid Frequency: 500 Hz to 15 KHz, +/- 15 dB
    Lo Mid Frequency: 50 Hz to 3 KHz, +/- 15 dB
    Lo Frequency: 100 Hz shelving, +/- 15 dB
    Hi-Pass Filter: 100 Hz, 3 pole, 18 dB/Octave

    Buss Inputs to Master Outputs
    Conditions: +4 dBu input, 150 Ohms, Balanced
    Frequency Response: 20 Hz to 20 KHz, +/- 0.2 dBu
    THD+N: 0.005%
    IMD: 0.005%
    Input Impedance: 10K , balanced

    Digital Output:
    ADAT Output: 24 Bit, 44.1 KHz / 48 KHz Selectable
    HearBus Output: 24 Bit, 44.1 KHz / 48 KHz Selectable
    ADAT/HearBus 1: Master 1 L/R, Channels 1-6
    ADAT/HearBus 2: Master 2 L/R, Channels 7-12

    Analog Line Outputs
    Maximum Output Level: +24 dBu, TRS Balanced
    Output Impedance: 121 , balanced
    Talkback Mic Pre Amplifier
    Conditions: -40 dBu input, 150 , Balanced
    Frequency Response: 20 Hz to 20 KHz, +/- 1.5 dBu
    Gain: Off to 50 dBu, variable
    Line Output: 121 Ω, TRS Balanced
    Input Impedance: 1K , balanced
    THD: 0.05%
    IMD: 0.09%
    Remote Control: 1-12, ST1, ST2, COM, ALL
    Remote Cable: CAT5e, 500 ft. max, wired pin-to-pin

    Effects (FX) Return
    Conditions: +4 dBu input, 150 , Balanced
    Frequency Response: 20 Hz to 20 KHz, +/- 0.5 dBu
    Gain, FX return to Master: 1 dB, Master at center
    THD+N: 0.0025%, 20 Hz to 20 KHz
    IMD: 0.0027%, 20 Hz to 20 KHz
    Input Imedance: 10K , balanced
    Maximum Input Level: +10 dBu, control centered

    Stereo Aux Input
    Conditions: +4 dBu input, 150 , Balanced
    Frequency Response: 20 Hz to 20 KHz, +/- 0.5 dBu
    Gain: Off to +6 dBu, Aux to Stereo Masters
    THD+N: 0.0033%, 20 Hz to 20 KHz
    IMD: 0.004%, 20 Hz to 20 KHz
    Input Imedance: 10K , balanced
    Maximum Input Level: +8 dBu

    Power Supply (Universal)
    Input Voltage: 100 to 240 VAC~, 50-60 Hz
    Input Current: 2 Amps
    Maximum Continuous Input Power: 240 Watts
    Fuse (Internal): 3.15 Amp
    Inrush: 60 Amps, 2 mSec
    Short Circuit Protection: Yes
    AC Input Connector: IEC 320-C14, Internationa
    Agency Listing: FCC class B, CISPR 22 class B, IEC 60950-1 safety, EN 61000-4-2, 4-4, 4-5

    Physical
    Construction: Steel Chassis / Steel Front Panel
    Size (with 1� handles): 19.23" H x 19" W x 5.35" D (488mm H x 482.6mm W x 135mm D)
    Unit Weight: 30.8 lbs (14 kg)
    Mounting Standard rack mount, 11RU
    Shipping size: 10.55" H x 25.0" W x 24.53" D (268mm H x 635mm W x 623mm D)
    Shipping Weight: 42.9 lb. (19.5 kg)
