MPN #PROHANA

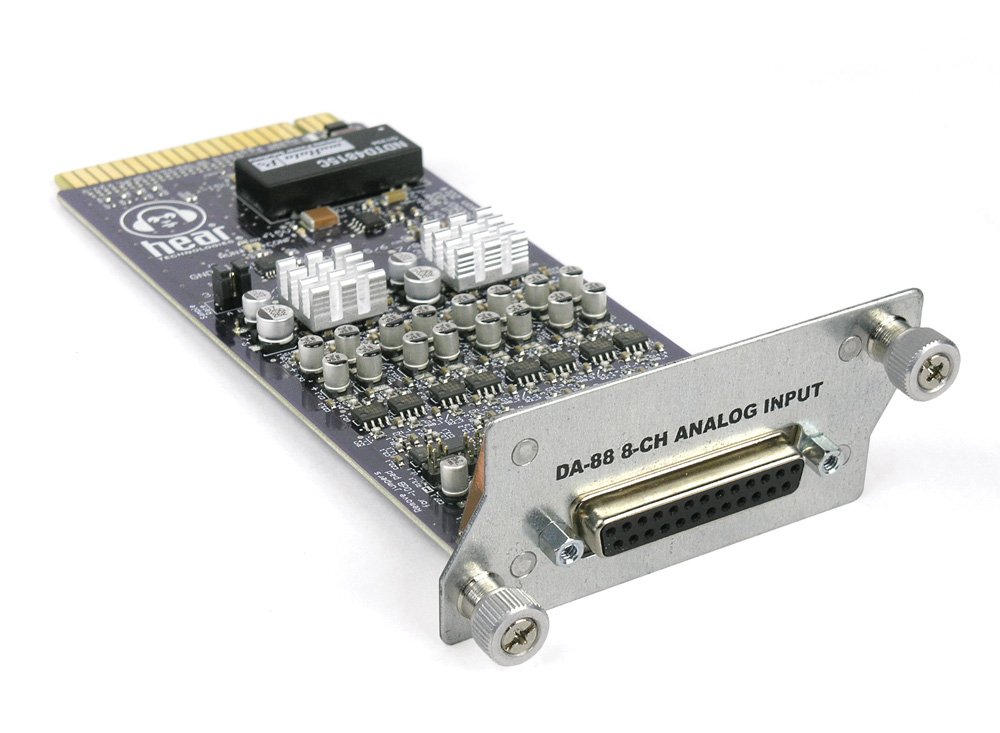

Hear Technologies Hear Back Pro Analog Input Card

$495.00

Save 19.5%, MSRP $615.00
Free shipping in Canada. Conditions

8-Channel Balalanced Input Card, DB25 Connector, Selectable Sample Rate & Sensitivity



Allows HB PRO Hub to communicate with any professional analog audio equipment. Provides (8) balanced audio inputs using a standard Tascam DA-88-style pin-out on a DB25 connector. A DB25 to 1/4-inch TRS break-out cable is sold separately, unless the Analog input card is purchased as part of the Hear Back PRO Four Pack.
  • -10dB pad on each channel allows the user to select +8dB or +18dB maximum input sensitivity level
  • Custom input sensitivities available up to +34dB upon special request
  • User configurable sampling rates of 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz using jumpers
  • (2) analog input cards are required to input 16 channels of audio
  • Up to (4) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels
  • View more products from Hear Technologies
