Harrison Audio Mix Strip 32C
MPN #723720X2
Compact 1RU analog channel strip with transformer mic preamp, 4-band EQ, high/low pass filters, stereo mix bus routing, and versatile input/output options

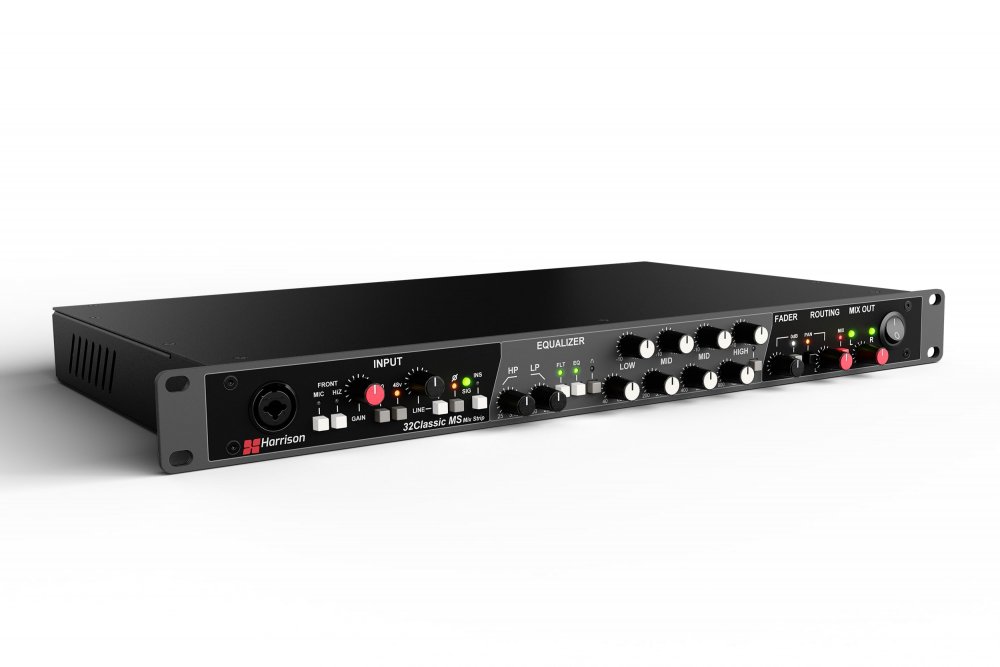

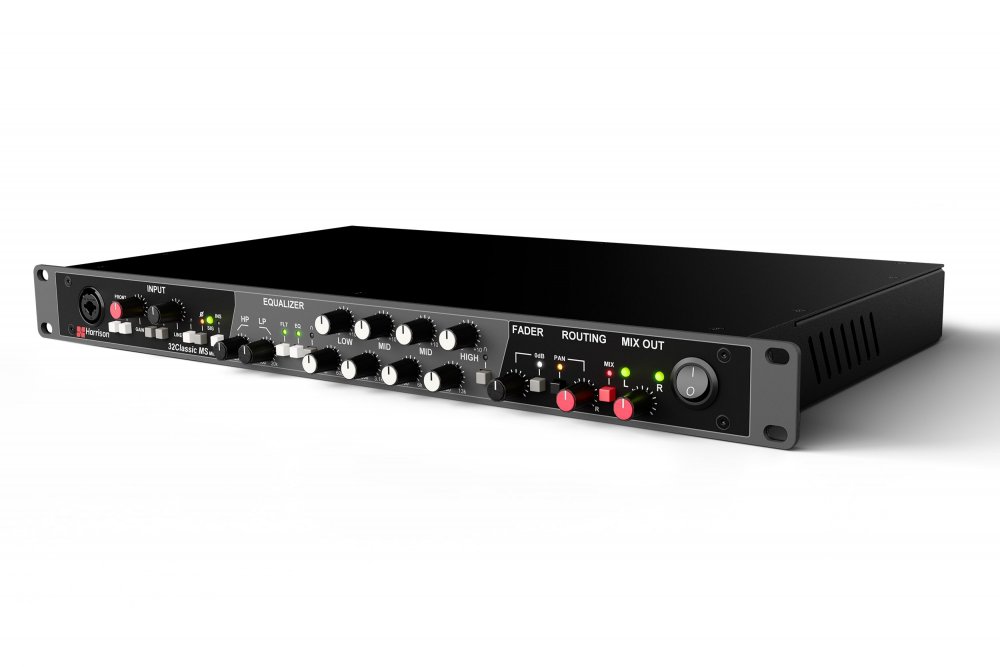

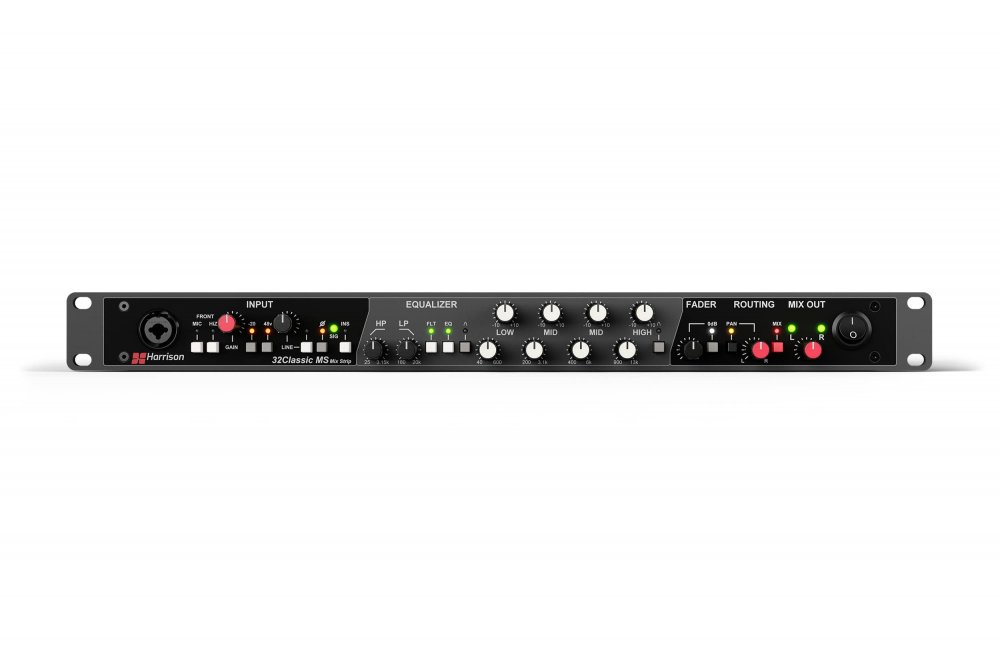

The Harrison 32Classic MS is a compact and powerful 1RU analog channel strip designed to bring professional audio quality to your studio setup. This unit combines the renowned Harrison 32Classic mic preamp with a transformer, a 4-band parametric EQ, and versatile routing capabilities. Whether you're capturing vocals, instruments, or line-level sources, the 32Classic MS offers pristine sound quality with features like 48V phantom power, a -20dB pad, and polarity reverse. It includes a unique mix bus routing system, enabling you to cascade multiple units for a scalable analog mixer solution in a 19" rack.
The EQ section is inspired by Harrison's legendary 32 Series console, offering a proportional Q design and high-pass/low-pass filters for detailed tonal shaping. With its mix bus system, you can easily integrate multiple units to form a master stereo summing mixer, providing a seamless analog mixing workflow. The unit also features balanced insert points, flexible connectivity, and user-focused design, ensuring easy operation and long-term reliability. Perfect for professional studios or engineers seeking vintage analog warmth with modern convenience, the 32Classic MS is a robust and adaptable tool for high-quality audio production.
Features
Professional-grade mic preamp with Jensen transformer, 48V phantom power, -20dB pad, and polarity reverse.Front-panel combo XLR/TRS jack for microphone or instrument (HiZ) input.Rear-panel line input with trim control for added flexibility.4-band parametric EQ with proportional Q, high-pass and low-pass filters, and switchable bell/shelf modes.Stereo mix bus routing with panning and bus assign switch for advanced mixing.Cascadable design to connect multiple units and build a larger analog mixer.Compact 19" 1RU rackmount design with a front power switch for easy access.Balanced insert points for seamless integration with outboard gear.Output level control with a 0dB lock option for precise adjustments.Master stereo bus control for connected units in multi-unit setups.Eco-friendly design using recyclable materials, optimized for long service life and repairability.
Specifications
General Specifications
19" 1RU analog channel stripMic/Instrument (HiZ) input with Jensen transformer mic preampBalanced insert point32C 4-band parametric EQ with proportional QHigh Pass and Low Pass filters with wide rangesChannel direct output level control with 0dB fixed level switchStereo Mix bus routing with panning and summing capabilityCascadable design for building an analog mixerAC power pass-through for connecting multiple units
Input Section
Rear XLR microphone input and front panel XLR/Combo jackInstrument input via front ¼" combo jack-20dB pad and polarity reverse48V phantom power (switchable)Line input via rear XLR with ±6dB trim controlBi-color input signal meter (Green, Yellow, Red)
Equalizer Section
Four EQ bands with ranges: LO (40"600Hz), MID1 (200"3.1kHz), MID2 (400"6kHz), HI (900Hz"13kHz)±10dB boost and cut for all EQ bandsLO and HI bands switchable between shelf and bell modesHigh Pass Filter: 25Hz"3.15kHzLow Pass Filter: 160Hz"20kHzSeparate in/out switches for filters and EQ
Routing and Output
FADER knob for output level control0dB switch bypasses FADERStereo mix bus with pan and bus assign switchesMix output level control and LR meters (Green, Yellow, Red)Pre and post-fader channel outputsMix bus connectors for cascading unitsElectronically balanced outputs
Connections

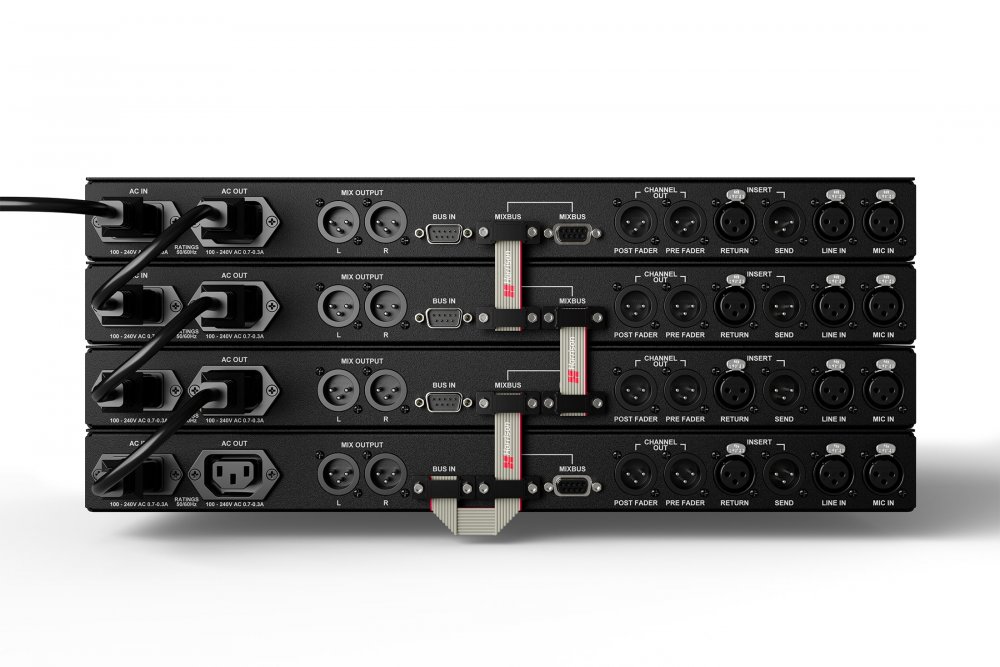

Front panel combo XLR/TRS jackRear XLR cOnnectors for microphone, line input, insert send/return, and mix outputsBus link and sum link cables included for cascading unitsAC pass-through connector
Performance Specifications
Microphone Preamp Gain: 20"70dBMicrophone Preamp Frequency Response: 20Hz"20kHz ±0.25dBMicrophone Preamp THD+N: < 0.004% at 1kHz, -20dBu @ 40dB gainMicrophone Preamp EIN: < -127dBu with 150? sourceMicrophone Input Impedance: 6.8k? (-20dB pad off)Instrument Input THD+N: < 0.01% at 1kHz, -10dBu @ 40dB gainInstrument Input Impedance: 1.2M?Line Input and Insert Return THD+N: < 0.002% at 1kHz, 10dBu @ Unity GainLine Input Impedance: 10k?Line Outputs Maximum Output Level: +24dBuLine Outputs THD+N: < 0.0008% at 1kHz, 10dBu @ Unity Gain (Insert Outputs)Line Outputs THD+N: < 0.001% at 1kHz, 10dBu @ Unity Gain (Mix Outputs)Line Outputs Output Impedance: 30?Signal Metering with thresholds: Green ? -14dBu, Yellow ? +4dBu, Red ? +18dBu
Physical Dimensions
Width: 19" (48.2cm)Height: 1.75" (1RU) (4.4cm)Depth: 10.25" (26.0cm)Weight: 8.1lbs (3.67kg)
Environmental
Operating Temperature: +1C to +30CStorage Temperature: -20C to +50C
