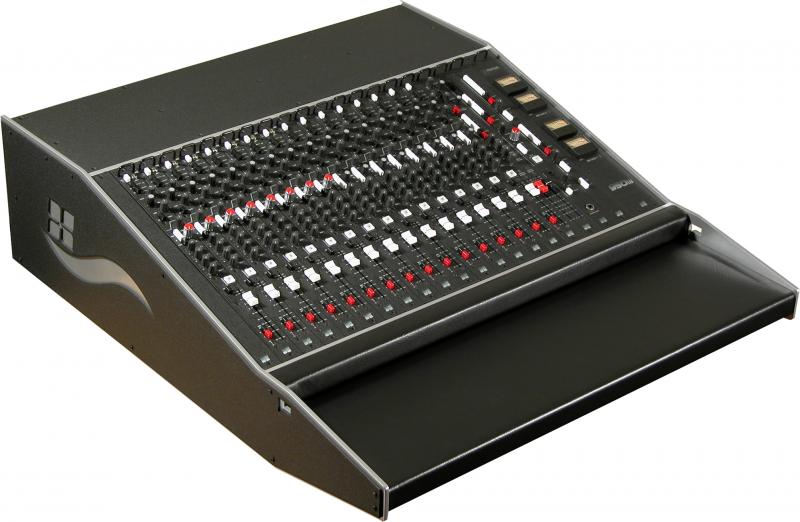

Modular analog recording console with 12 mono channels

The Harrison 950m sports a history-rich analog design incorporating many of the same high-end modular design elements found across a wide range of Harrison console models from eras past such as the 32 Series, MR Series (2, 3, 4, 5 and 7), SeriesTen, SeriesTwelve, MPC and LPC. The 950m provides a superior analog mixing platform that will cost effectively complement today's high performance music studio where investments in powerful DAW's and high-end specialized outboard gear are the norm.

The 950m was designed by Harrison's most experienced analog designers, and they were challenged to make the best-sounding, highest-spec analog console available today.

Features

Manual PCB layout

Robust ground plane design

Linear power distribution

Gold Euro-card module connectors

Gold plated switches

Conductive plastic potentiometers

100% through-hole design

All I/O is balanced

Summing buses carried via PCB's (no ribbon cable summing buses).

These features combine to provide the highest possible performance in analog mixing console design.

The Harrison 950m frame design is rugged and unique. Designed with input from studio engineers, it is specifically designed to minimize some common ergonomic issues found in today's studio using DAW and outboard based setups: "Where do I put a keyboard, mouse or trackball and where do I put the computer monitor(s)" The 950m solves those issues by providing a 2-tiered front bolster which is wide and deep enough to comfortably locate a DAW keyboard and mouse or trackball (with sufficient cable access). A generous flat top is ideal for locating DAW monitor/s and/or small speakers. The 950m module area is supported at a 15 degree pitch providing comfortable viewing access and control immediately above your keyboard, mouse, and DAW control surface(s).

Input Channels

Switchable Insert points on every input

48v (Mono Only)

Direct Out (Mono Only)

Switchable HP + LP Filters

3 Band "Tone" Controls

Pan / Balance

Input Selections

Input Gain Controls

4 Mono Aux Sends

Channel ON

Solo

104mm Fader

Mix Bus Routing

LED Input Meter

Master Section

Mix Bus 1 compressor

Mix Bus 2 Compressor

Oscillator / Talkback Assignments

Aux Send Masters

Mix Bus Master Faders

Stereo Mix Bus 1 & 2 VU Output Meters

Monitor

Oscillator

Monitor Sources

Headphone Level

Speaker Level

Monitor Solo Listen

Monitor Mono

Monitor Mute

Talkback Microphone

Talkback Level

Talkback Enable

Headphone Jack

Studio

Studio A Source Select ( Osc, Aux 1-4, Mix Bus 1/2 )

Studio A Level/Mono/Mute

Studio B Sources

Studio B Level/Mono/Mute

Studio Talkback Assignments

XLR Outputs

Stereo Mix Bus 1 ("Black") Electronically-balanced Output

Stereo Mix Bus 2 ("Red") Transformer-balanced Output

Mono Aux 1-4 Output

Stereo Studio A output

Stereo Studio B output

Stereo Solo bus output

Stereo Control Rm Output

Mono Oscillator Output

Back Panel

External Linear DC Power Supply

XLR Mic Inputs / Main Outputs

"D" Sub Line Inputs / Outputs (Tascam pinout)

Additional Connections:

Mix Bus A & B Stereo Insert point

Master Logic (Talkback, Mutes, and fader VCA connections)

Frame

15 Degree Module Pitch

Full Size Keyboard Space

Flat Top Monitor Shelf
