Harrison Audio D510r 500 Series Rack with Mixer
MPN #723730XB3

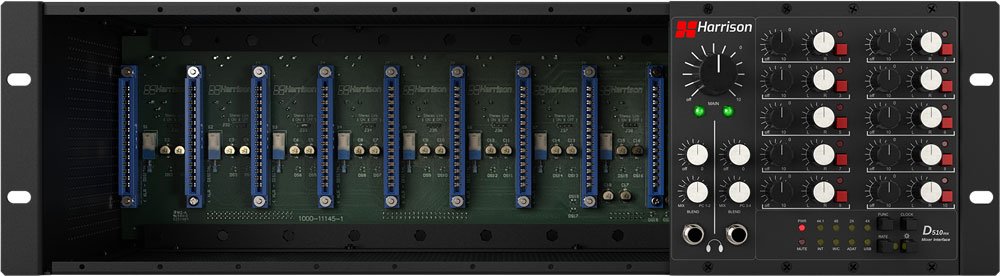

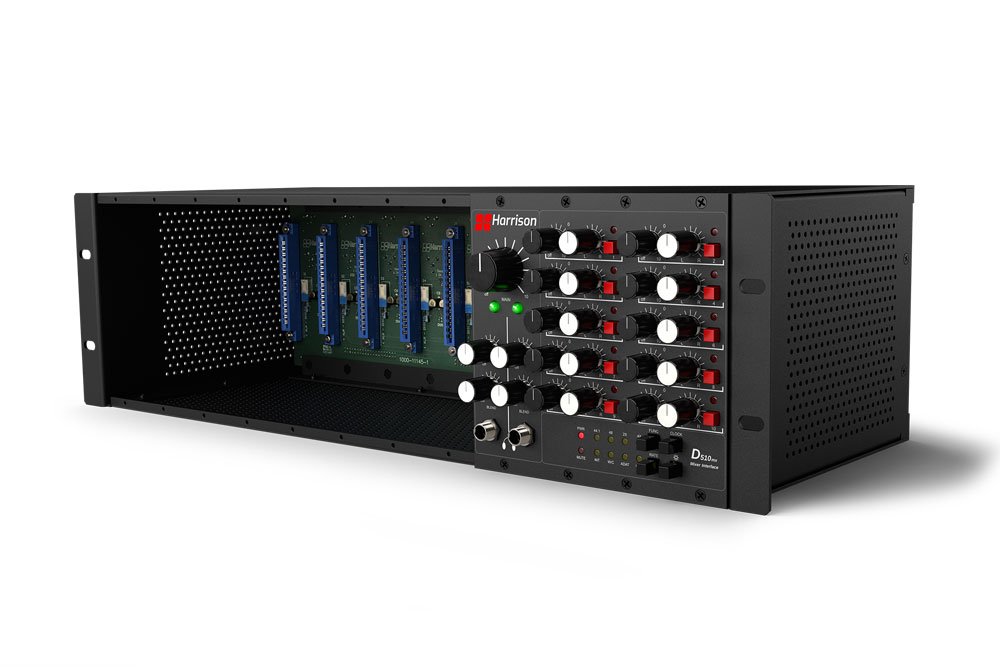

Ten-slot 500 Series rack D510r paired with the D510mx mixer module
The Harrison D510r is a powerhouse 500 Series rack system designed for creators who demand both sonic integrity and workflow flexibility. With ten available slots, this ultra-flexible chassis is the foundation for building your own custom analog mixing environment. Harrison's legacy"heard in the iconic work of artists like Michael Jackson, Steely Dan, and Led Zeppelin"lives on in the D510r's design, delivering the same depth, clarity, and analog warmth that defined classic records. Whether you're tracking, mixing, or summing in the studio or on the move, the D510r brings professional-grade signal routing and integration options into a portable 3U format.
The system truly shines when paired with the optional D510mx analog mixer module, transforming the rack into a full-featured 10x2 summing mixer. With pan and level controls on each channel, the D510mx allows you to blend eight 500 Series modules along with two dedicated inputs, making it easy to craft wide, punchy stereo mixdowns. Dual independent headphone outputs with blend controls add detailed monitoring options, and when combined with the D510dante or D510usb interface cards, the system seamlessly bridges the analog and digital worlds. Whether used for live tracking, mobile production, or as a studio centerpiece, the D510r system delivers the famous Harrison "3D" sonic depth with unmatched modular flexibility.
Caractéristiques
Transform your Harrison D510r 500 Series rack into a powerful 10x2 analog summing mixer.Individual pan & level controls for each 500 slot.Pair with optional D510dante or D510usb audio interface cards for digital connectivity.Create stereo mixdowns from eight 500 modules, alongside two analog inputs (9&10).Dual independent headphone outputs with 'blend' between MIX & PC.Dedicated 'MAIN' mix output control.
Spécifications
D510mx Inputs
Minimum Gain: <= -81 dB
- Noise A-Weighted @ Min Gain: < -87 dBu ?
Unity 0 dB
- THD+N, 1kHz 10 dBu @ Mid Gain: < 0.003%
- Noise A-Weighted @ No Gain: < -87 dBu
Maximum Gain: 11.5 dB
- THD+N, 1kHz 0dBu @ Max Gain: < 0.003%
- Noise A-Weighted @ Maximum Gain: < -85 dBu ?
Maximum Input Level: +24 dBu
- Frequency Response: 20 Hz " 20 KHz +/- 0.25 dB
- Pan " 3dB Pan Law
?D510dante Inputs (when optional D510dane interface is installed)
Maximum Input Level: +24 dBu
Frequency Response: 20 Hz " 20 KHz +/- 0.25 dB ?
Main Outputs
Maximum Output Level - +24 dBu
Minimum Gain: <= -85 dB
- Noise A-Weighted @ Min Gain: < -97 dBu
Unity 0 dB
THD+N, 1kHz 10 dBu @ Mid Gain: < 0.003%
