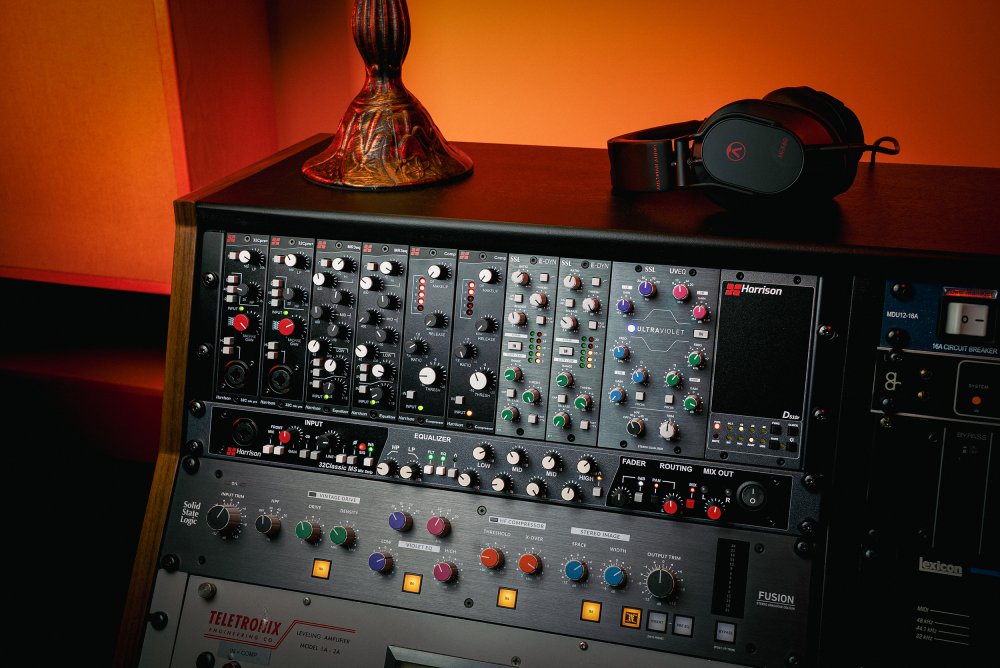

Ten-slot 500 Series rack system with Dante AoIP interface option
One of the advanced and unique features of the Harrison D510r 500 rack unit is ability to add a D510dante interface card which includes A/D and D/A converters via a Dante interface providing a direct Ethernet interface to a DAW or other Dante network such as for live performance applications.

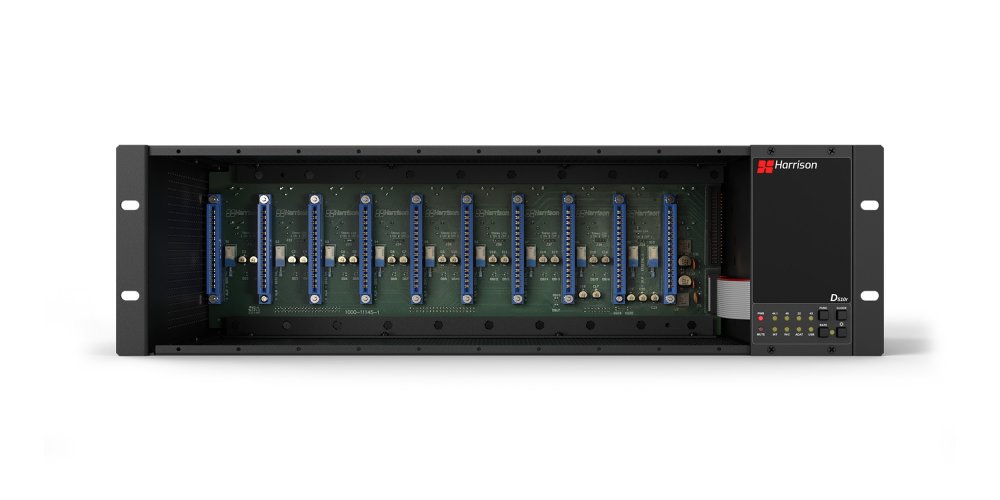

The D510dante interfaces can carry up to 10 input by 14 output channels at 44.1/48 KHz sampling rate up to 88.2/96 KHz sampling rate. Because the D510r can be fitted with up to ten 500 series modules the D510dante interface is laid out with 10 AD converters and DA converters one pair for each of the ten 500 slots.
There are an additional four DA converters provided for future use.

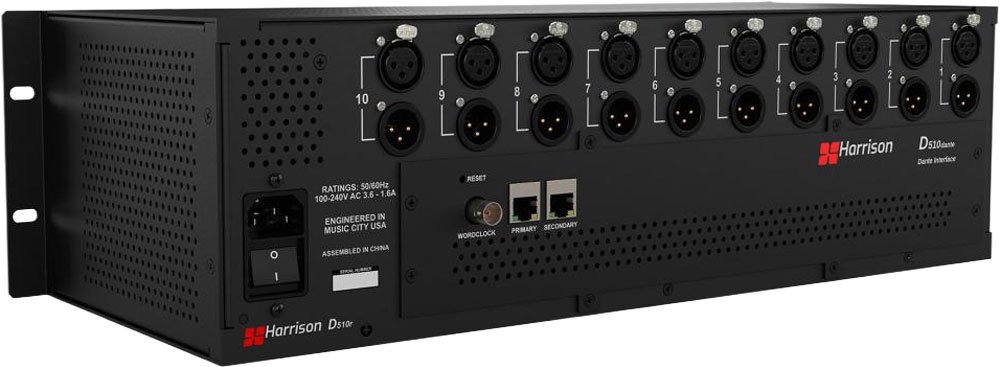

These inputs and outputs are combined by an integrated Ethernet switch to result in a single Ethernet interface to a DAW or other Dante network such as in a live performance infrastructure. The D510r with a D510di installed will appear as single device on the Dante network with a primary / secondary redundant configuration.
