Harrison Audio 32Classic 16Ch console, pre-wired for Dante
MPN #723116XA
16-channel Harrison 32Classic analog console pre-wired for Dante networking, featuring 32C EQ, transformer mic pres, inline workflow, 8 buses, and 7.1.4 monitor control.

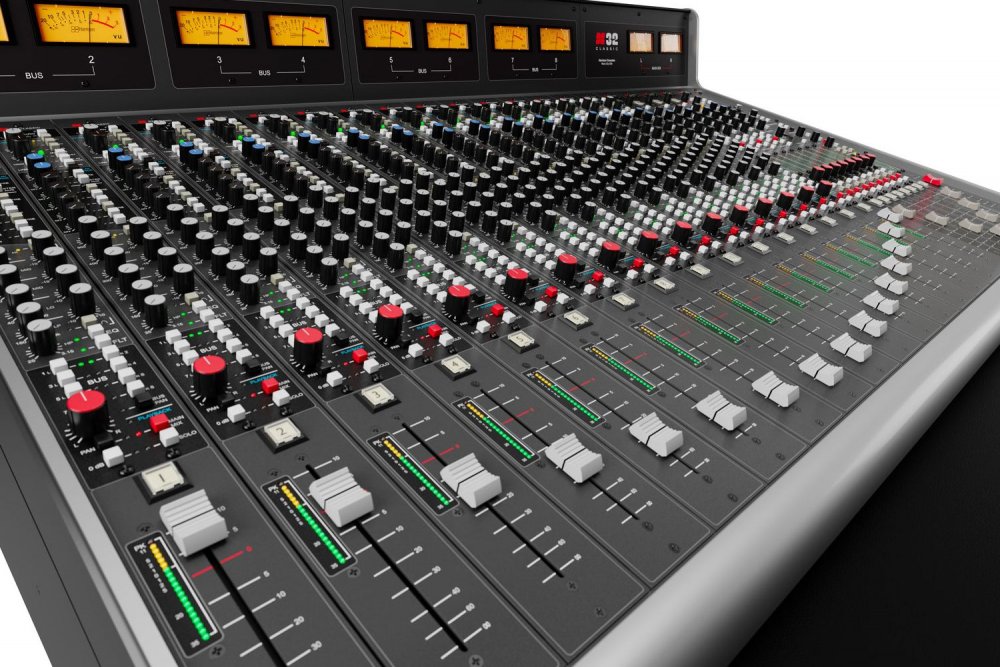

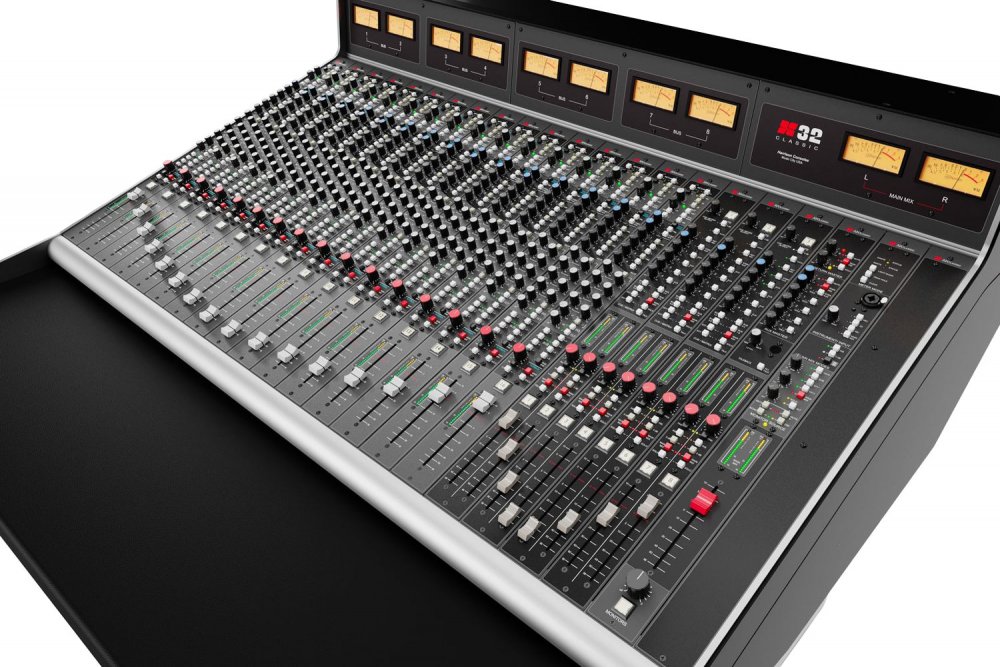

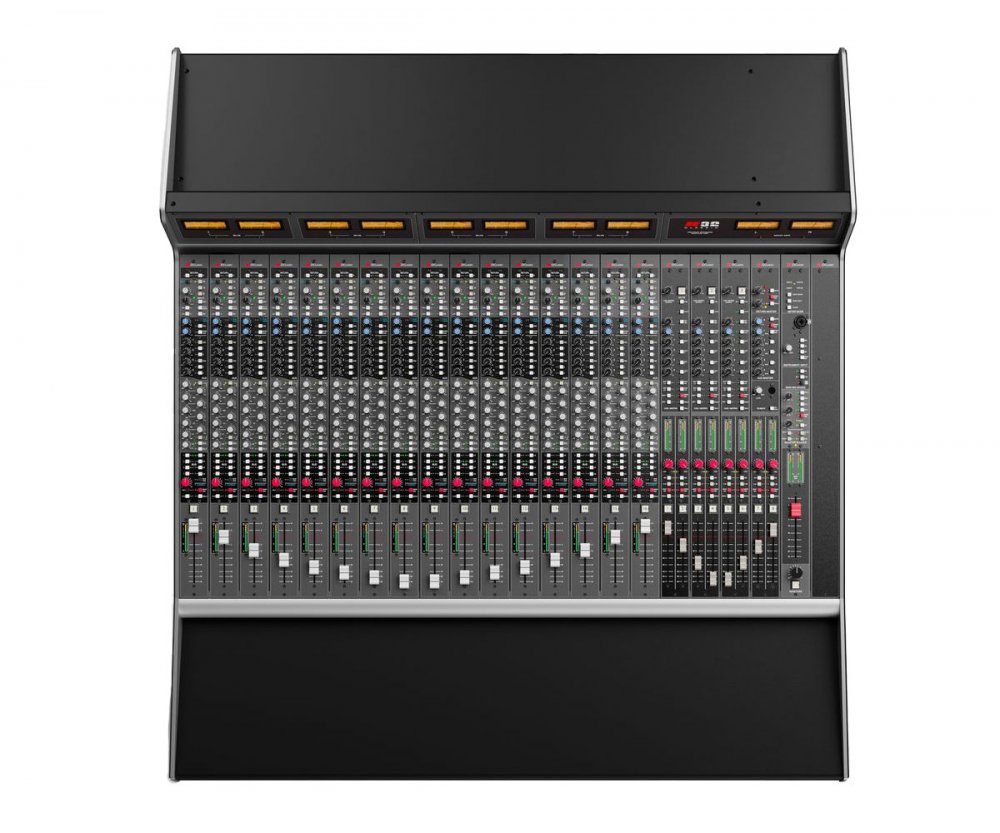

The 32Classic 16-channel distills Harrison's iconic 32C sound into a compact, studio-ready desk and arrives pre-wired for Dante so you can plug in, patch, and record over a single Ethernet cable. Each channel features a transformer-balanced mic preamp feeding the musical 32C 4-band EQ with sweepable HP/LP filters, plus flexible in-line record/monitor paths for effortless tracking and overdubs. Routing is classic and fast: assignable groups, multiple auxes (for cue and FX), and a transformer-balanced stereo mix bus deliver the punchy, open sound engineers expect from Harrison.
With the factory Dante configuration, all essential I/O is already mapped: per-channel direct outs to your DAW, DAW "playback" returns to each strip, mix and group outputs, and monitor feeds-no soldering or bay work required. Dante Controller handles patching, clocking, and expansion to additional converters, headphone amps, or live rooms, while ultra-low-latency AoIP keeps large sessions responsive.

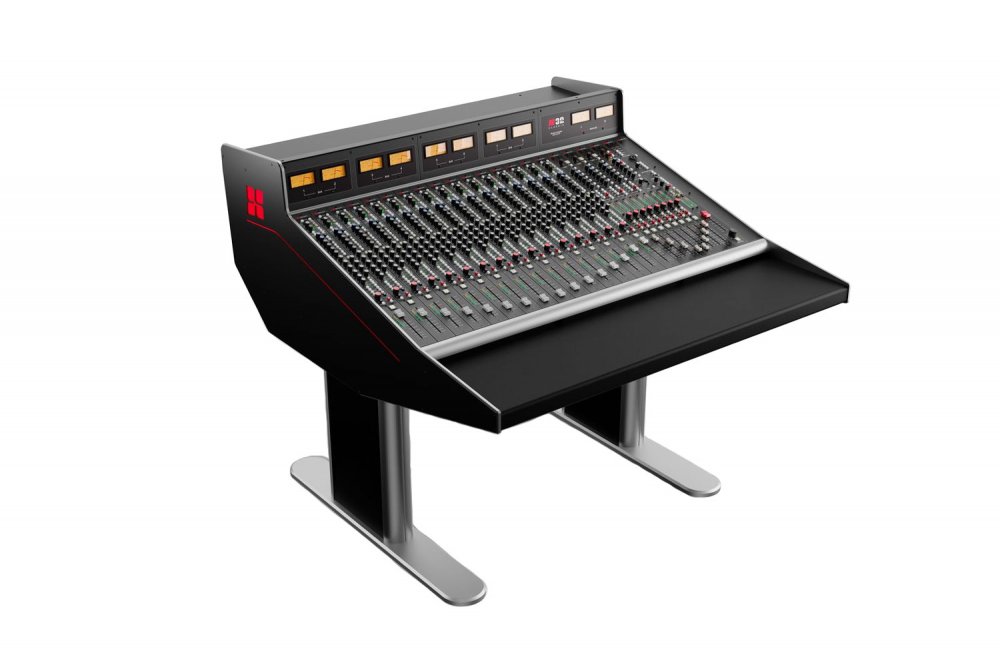

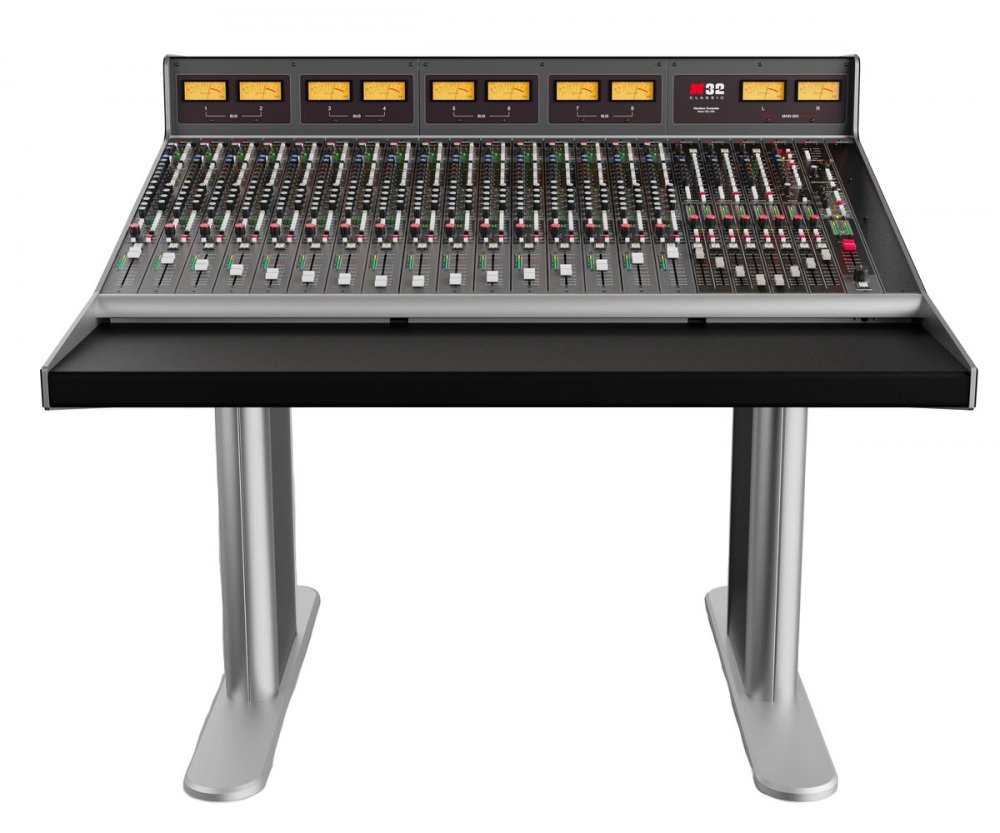

Designed for modern hybrid workflows, the 32Classic offers an ergonomic armrest for keyboard/mouse, a rear shelf for nearfields or displays, and clean cable management. The result is a streamlined, professional centerpiece: Harrison's classic tone and hands-on speed, with Dante networking baked in for immediate, scalable studio integration.
Caractéristiques
16 channel analog console with Harrison 32C 4 band EQ and HP/LP filters on every channel.Transformer balanced microphone preamps and transformer balanced main stereo mix output.Pre-wired Dante integration via built-in professional grade AD/DA converters; direct Ethernet interface to a DAW.Two internal Dante/converter cards provide 32 in x 32 out per card at 96 kHz; appear as two devices on the Dante network and are combined to a single Ethernet link.Typical factory pre-connections include channel direct outs and playback to the channel Dante card, plus master section links for main mix, cue/matrix, monitor Dante inputs, and surround monitor inputs.All analog I/O fully balanced on DB25 connectors with Tascam AES59 pinout; duplicated connectors let you access analog outs while also feeding Dante.Converter/Dante cards include RJ45 Dante ports, TTL word clock input, and integrated Ethernet switch.Console optimized for DAW workflows with inline record/mixdown modes, inserts, direct outs, auxes, groups, and 0 dB fader lock.Comprehensive monitor section with multiple external inputs and 11.1 or 7.1.4 surround capability.Front panel mic/instrument input assignable to any channel for quick overdubs.
Spécifications
General Specifications:
Console configuration 16 channel Harrison 32Classic pre wired for DanteModule type 32C input strips with transformer balanced mic preamps and 32C four band EQInline or split operation with channel insert and direct out on every channelUniversal internal power supply and fanless cooling
Microphone Input:
Gain range 20 dB to 70 dB in stepped incrementsEquivalent input noise better than minus 129 dBuTransformer balanced and earth free
Line Input:
Input impedance 10 k ohms bridgingTrim range plus or minus 9.5 dBMaximum input level plus 24 dBuTransformer balanced and earth free
Output:
Maximum output level plus 24 dBuOutput impedance 30 ohms typicalMain mix output 75 ohms when output transformer engagedBalanced and earth free
Distortion and Noise:
THD at 50 dB gain less than 0.01 percentFrequency response 20 Hz to 20 kHz plus or minus 0.25 dBA to D and D to A THD plus N less than 0.01 percent at plus 4 dBu
High Frequency EQ:
32C shelving typeBoost and cut range program dependent with musical Q
Low Frequency EQ:
32C shelving typeBoost and cut range program dependent with musical Q
Mid Frequency EQ:
32C peaking type two sweepable midsMusical proportional Q behavior
High Pass and Low Pass Filters:
Continuously variable high pass and low pass per channelAdjustable to remove rumble and ultra high content
Buses and Aux Sends:
Group buses 8 mono assignableAux sends 4 mono plus 1 stereo cueDirect out per channel switchable pre or post fader
Monitoring:
Control room monitor section up to 12 speakers including 7.1.4 layoutsExternal monitor inputs and alternate monitor outputs on master sectionTalkback and slate functions
Dante and Converter Section:
Factory pre wired Dante interface integrated to channel and bus pointsTwo converter and Dante cards each 32 input by 32 outputTotal Dante capacity 64 by 64 at 44.1 or 48 kHz or 32 by 32 at 88.2 or 96 kHzSingle RJ45 Dante network port with word clock input on BNCTypical mapping Dante playback to channels 1 to 16 and Dante direct outs from channels 1 to 16
Converter Performance:
A to D maximum input level plus 24 dBuA to D THD plus N less than 0.01 percent at plus 4 dBuD to A maximum output level plus 24 dBuD to A THD plus N less than 0.01 percent at plus 4 dBuFrequency response 20 Hz to 20 kHz plus or minus 0.25 dB
I O and Connectivity:
DB25 Tascam pinout for analog direct outs groups mains cue matrix aux and monitor I ORJ45 Dante primary network portBNC word clock input 75 ohm
Controls and Switches:
100 mm channel faders with solo and muteChannel EQ in or out and filter in or outBus assign switches and pre or post direct out selectMonitor source select speaker select and dim controls
