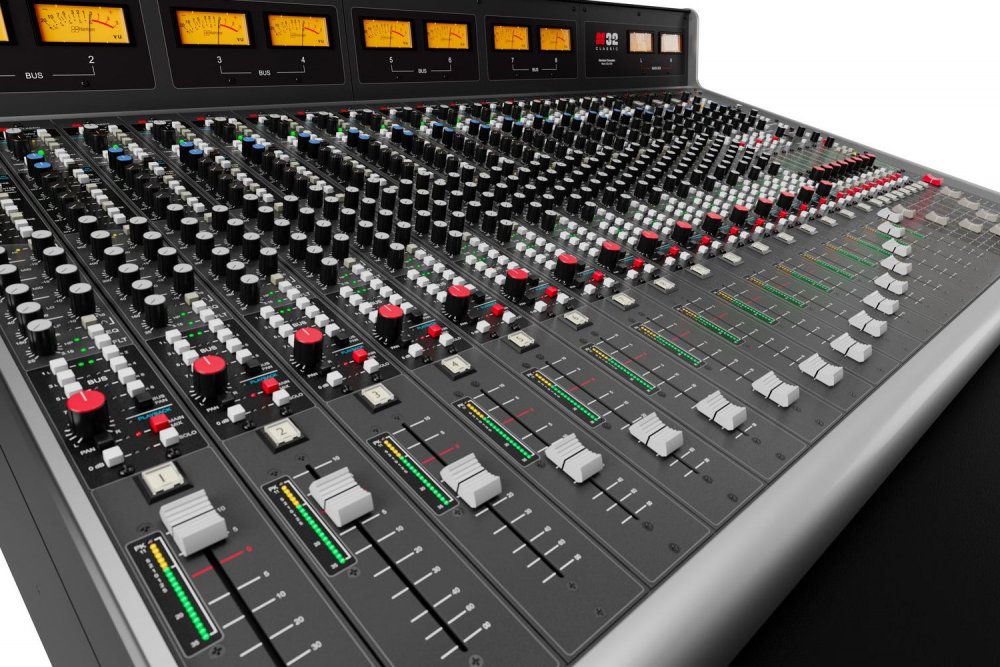

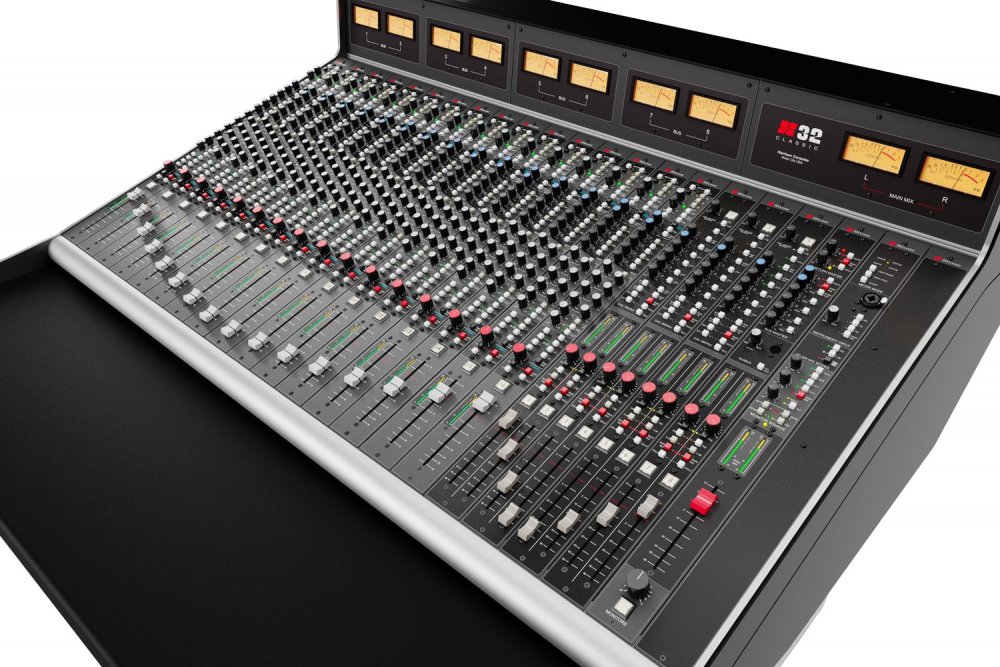

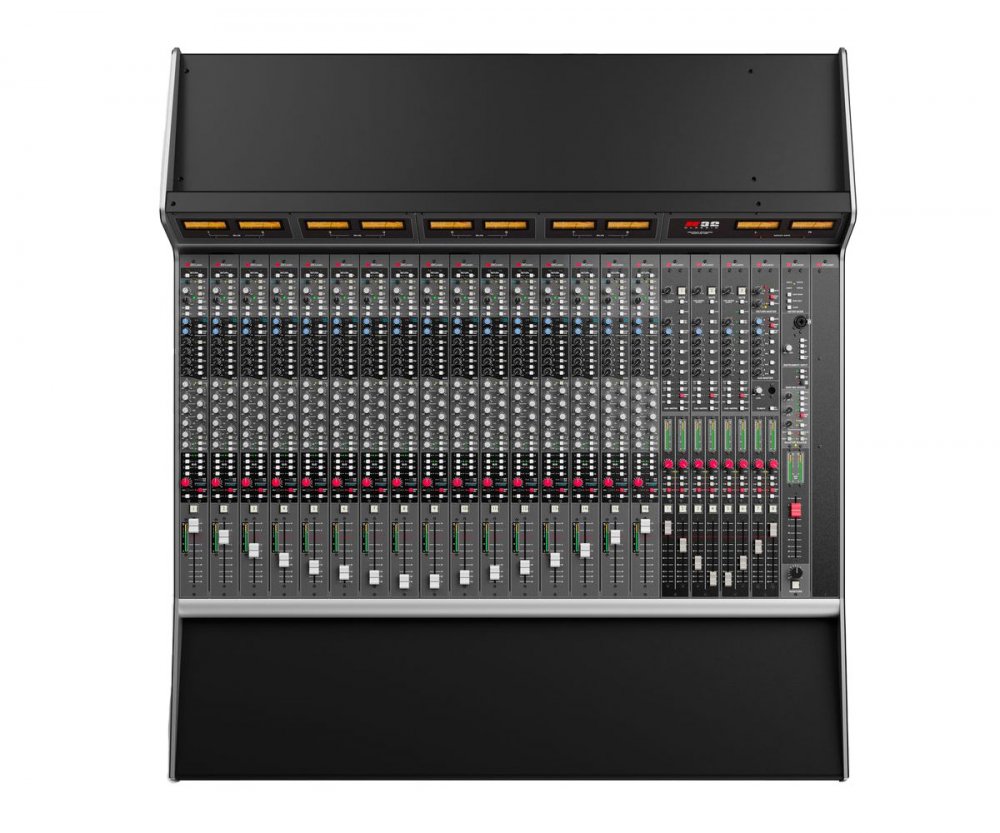

Harrison Audio 32Classic 16Ch console, includes Dante
MPN #723116XD
16-channel analog console with 32C EQ, transformer mic pres, and built-in 32x32 Dante I/O. Inline workflow, 8 buses, and 7.1.4 Atmos monitoring for modern studios.
The 32Classic 16-channel brings Harrison's legendary 32C sound to compact studios without compromise. Each mono strip features the transformer-balanced mic preamp and musical 32C 4-band EQ with HP/LP filters, feeding a flexible routing architecture with up to 8 mono mix buses (configurable as stereo groups), 4 mono auxes, a stereo aux, and a transformer-balanced main stereo mix bus. An in-line record/monitor path with dedicated Dante "Playback" inputs streamlines DAW tracking and headphone feeds while enabling large input counts at mixdown.
Dante is fully integrated: professional A/D and D/A conversion with a 64-channel Dante AoIP interface (typically configured as 32-32 at 96 kHz per card) provides a single Ethernet connection to your DAW for seamless recording, patching, and studio routing. Standard Dante assignments include per-channel direct outs and playback returns, group outs, main/cue mixes, and 7.1.4 monitor inputs for immersive workflows.

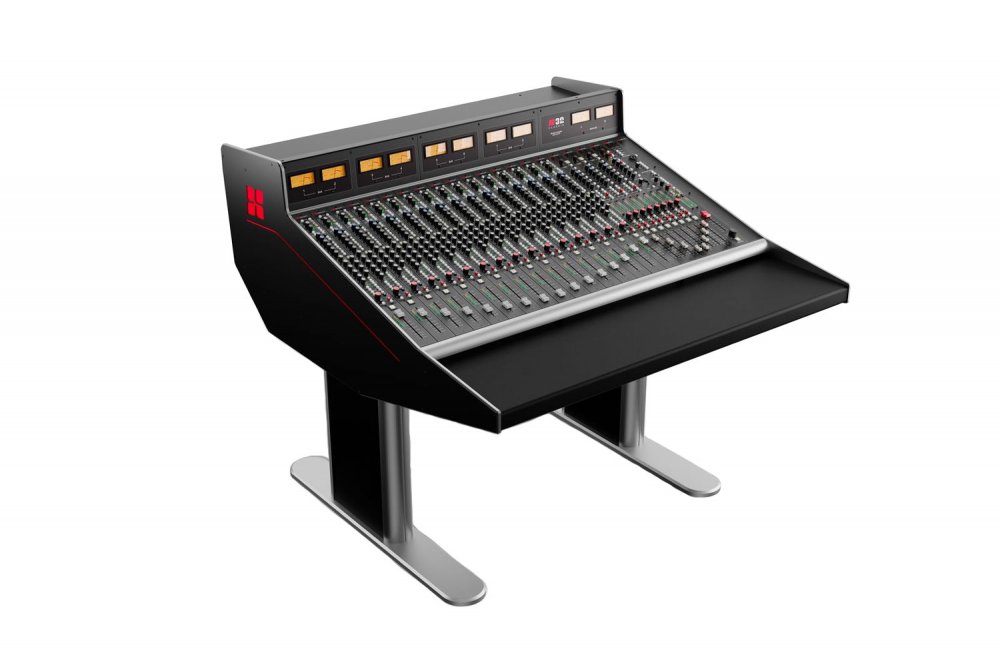

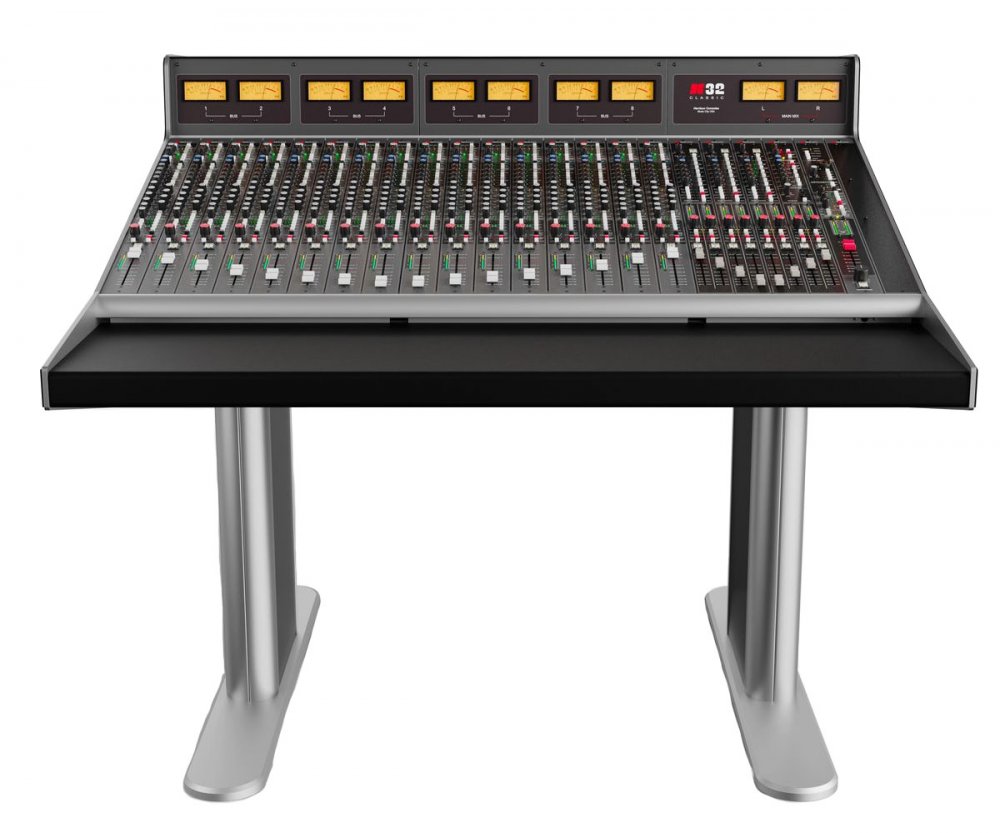

Built for DAW-centric rooms, the frame offers a deep armrest for keyboard/mouse and a rear shelf for screens and nearfields, keeping wiring hidden for a clean install. Classic tone, modern workflow-scaled to 16 channels, with Dante at its core.
Caractéristiques
16 mono input channels with classic Harrison 32C 4-band EQ and high/low filters; inline architecture supports tracking and mixdown on the same strip.Per-channel "Return" input feeding a separate stereo Return mix, enabling high-count mixdowns.8 mono mix buses (pairable for stereo subgroups) with inserts, pan-to-pair, meters, mute/solo, and Main Mix assign.4 mono AUX sends plus 1 stereo AUX; masters with level, solo and ability to feed Main Mix.3 stereo foldback/cue/matrix mixes with talkback integration and "All Talk" to all cue outputs.Main stereo mix bus with insert, 0 dB fader lock, and selectable Jensen transformer-balanced output for analog color.Integrated pro A/D and D/A conversion with Audinate Dante networking up to 64x64 channels at 96 kHz; two Dante interfaces (channel I/O and master I/O) with front-panel status LEDs.Converter/Dante cards provide 32x32 analog I/O on DB25, dual RJ45 Dante ports, and TTL wordclock input; sample rates 32"96 kHz.Dante clocking: operate as network slave or master (internal or external TTL wordclock).Prewired Dante channel maps for channels 1"16 I/O and master section sends/returns.Comprehensive monitor section: stereo control-room with ALT speakers, headphone out, DIM/Mono/L-R mutes, plus 11.1 or 7.1.4 surround monitoring via 12 Dante inputs.External monitor sources: two analog stereo inputs and a Dante stereo input, sum-selectable.Front-panel mic/instrument input on the master module, assignable to any channel; matches channel-strip preamp character, with 48 V and pad.Fully balanced analog I/O on DB25 (AES59/Tascam pinout); duplicated outputs let you use Dante and analog simultaneously.Metering everywhere: 20-segment LED meters on channels, buses, and main; meter-bridge analog meters; global Peak Hold/Clear and a meter "Light Show."Robust DAW-friendly frame with concealed cabling, long-life pots and faders, and all-electronic switching.
Spécifications
General Specifications:
Console configuration 16 channel Harrison 32Classic including DanteModule type 32C input strips with transformer balanced mic preamps and 32C four band EQInline or split operation with channel insert and direct out on every channelUniversal internal power supply and fanless cooling
Microphone Input:
Gain range 20 dB to 70 dB in stepped incrementsEquivalent input noise better than minus 129 dBuTransformer balanced and earth free
Line Input:
Input impedance 10000 ohms bridgingTrim range plus or minus 9.5 dBMaximum input level plus 24 dBuTransformer balanced and earth free
Output:
Maximum output level plus 24 dBuOutput impedance 30 ohms typicalMain mix output 75 ohms when output transformer engagedBalanced and earth free
Distortion and Noise:
THD less than 0.01 percent at 50 dB gainFrequency response 20 Hz to 20 kHz plus or minus 0.25 dBConverter THD plus N less than 0.01 percent at plus 4 dBu
Dante Interface:
Installed Dante and converter cards two cards each 32 in by 32 outTotal Dante capacity 64 by 64 at 44.1 or 48 kHz or 32 by 32 at 88.2 or 96 kHzPrimary RJ45 Dante network port and BNC word clock inputTypical mapping Dante playback to channels 1 to 16 and Dante direct outs from channels 1 to 16
Controls and Switches:
100 mm faders with solo and mute per channelEQ in or out and filter in or out per channelBus assign switches and pre or post direct out selectMonitor source select speaker select and dim controls
