Studio quality 2 channel instrument & mic preamplifier / DI / EQ. Silver version



FELiX is our new, studio quality 2 channel blending acoustic instrument and mic preamp, designed for working musicians, engineers, sound companies or venues looking for the highest quality solution for amplifying stringed instruments. FELiX is built into a roadworthy (beer-resistant) floor unit chassis of anodized aluminum and steel, portable enough to leave the rack at home but bring studio quality to the stage. With the same stunning audio performance and legendary reliability as Grace Design's pro audio range, FELiX brings open, musical and nuanced preamplification to any performance situation.

A powerful eq section allows simple and intuitive tone shaping for even the most unruly of instruments. Each channel's variable high pass filter cuts 12dB per octave from 20Hz to 1kHz, and can also be set as a notch filter for chasing down problem feedback or rumble areas. Parametric mid range controls cover from 70Hz all the way to 8KHz. While fixed low and high controls are carefully voiced for musical shading of bass and treble.

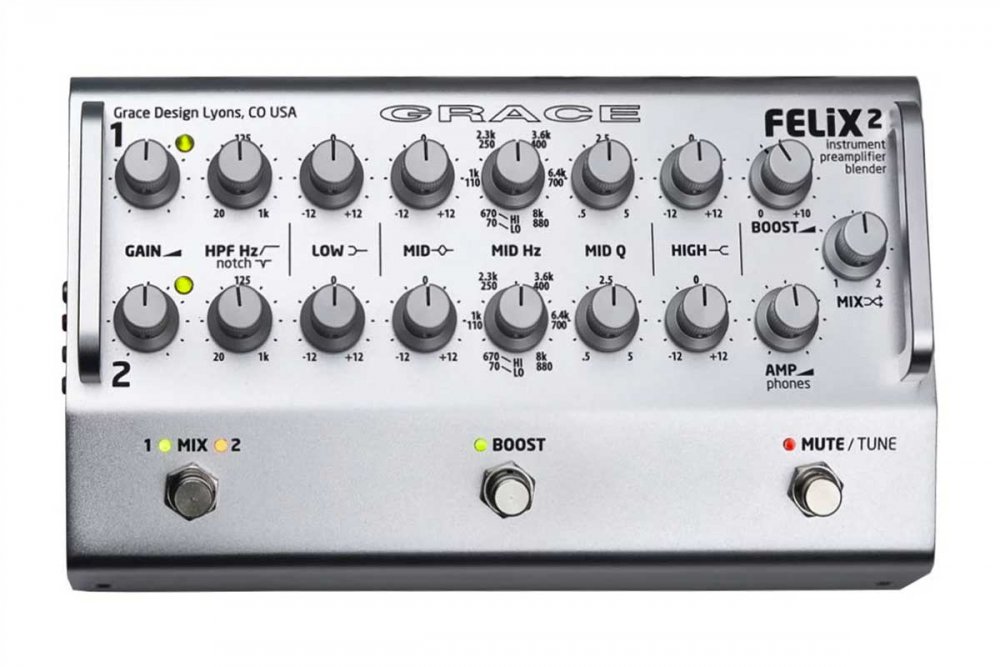

Controls are simple and clearly marked on a bright panel, making them easy to read and tweak on a dark stage. Footswitch functions include a mute / tune switch for muting all outputs except the dedicated tuner out, a boost switch which activates a variable boost circuit, and finally, an A/B mode switch for when FELiX is in A/B mode (which simply toggles between the two different channels).

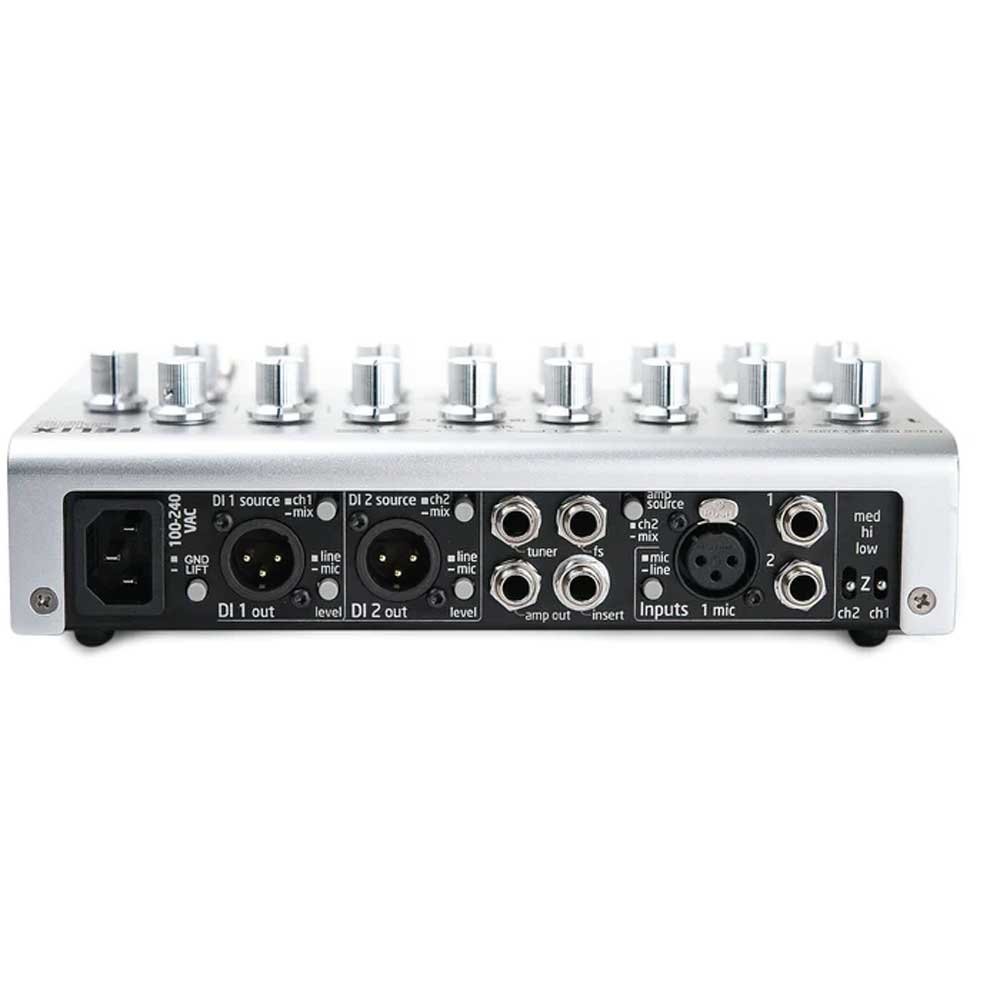

FELiX brings the kitchen sink approach to I/O. Inputs include a 48V XLR mic input and two instrument inputs. Two independent transformer isolated DI outputs can be sourced from either the mix or the individual channel. This allows you to send the front of house a mix or each channel independently. A dedicated, level controlled amplifier output can be sourced from the mix or channel 2. A dedicated tuner output stays active when all the other outputs are muted. A side panel mounted 1/8" mini jack headphone amplifier is there for practicing, private noodling during boring soundchecks, or scrutinizing dubious eq decisions. A TRS insert is included for adding effects, and finally, a remote footswitch jack is included if FELiX is going to spend his life in a rack or up off the floor.

Guitar, bass, fiddle, mandolin, cello, dare we say banjo, that weird 3 string gourd thing - FELiX is your instrument's new best friend. Flexible, reliable, a good listener and eager to make you sound better, he is also your new best friend.

STEREO OPERATION
New dual mono or true stereo FX loop allows for independent FX loops on either channel or stereo FX operation with mono or stereo in
Stereo amp output for connecting to stereo stage amp rig
Stereo headphone output for stereo headphone personal monitoring bliss

VARIABLE PHASE CONTROL
Built in variable phase control on channel 2 allows users to adjust mic / pickup blending systems to be perfectly phase coherent

MORE EQ POWER
HIGH shelving EQ control updated to include 2 transition frequency settings at 1k and 2k, allowing for more flexible high frequency tone control
New notch filter uses a much higher Q setting for better surgical control of problem frequencies

NEW POWER SUPPLY
Class II power supply eliminates ground loops when connecting to stage amps and other non-isolated stage equipment
NOTE: this is now a 2 prong power input

BETTER STAGE MANNERS
New protective side rails and slightly lower profile knobs to help protect controls from extra left feet and floppy stray instrument cables

CHANNEL 1 BOOST DEFEAT
Allows the boost circuit to only affect channel 2
  • Open, musical and detailed instrument and mic preamplification for discerning artists and engineers
  • 2 channel audio path with blend output control
  • m101 style transimpedance microphone preamplifier, no electrolytic capacitors in the signal path
  • Variable Phase control on channel to for fine tuning phase between a microphone and pickup
  • Ultra precision 0.5% thin  film resistors are used in the signal path
  • Careful power supply design and grounding yield an ultra-quiet signal path and professional level headroom and line driving ability
  • Fully ground isolated DI outputs with high quality, low distortion, fully shielded transformers
  • Super rugged 1/4" connectors with heavy duty metal bushings
  • New side rails to protect control from inadvertent changes via cables or feet
  • Powerful, independent EQ on both channels - hi and low shelving and full parametric midrange
  • Mid frequency control has two ranges 70-880Hz / 670 - 8kHz
  • 20Hz-1kHz sweepable HPF on both channels, can also be set as notch filter
  • A / B footswitch for multiple instrument configurations or soloing different pickups
  • Mute/ tune footswitch mutes all outputs except dedicated tuner out
  • Boost footswitch for variable 10dB level boost (global)
  • DI outputs sources are configurable - Ch1 (mix or Ch1) Ch2 (mix or Ch2)
  • Dedicated level controlled stereo stage amp output (configurable as blend or Ch2)
  • Dedicated tuner out, remains hot when unit is muted

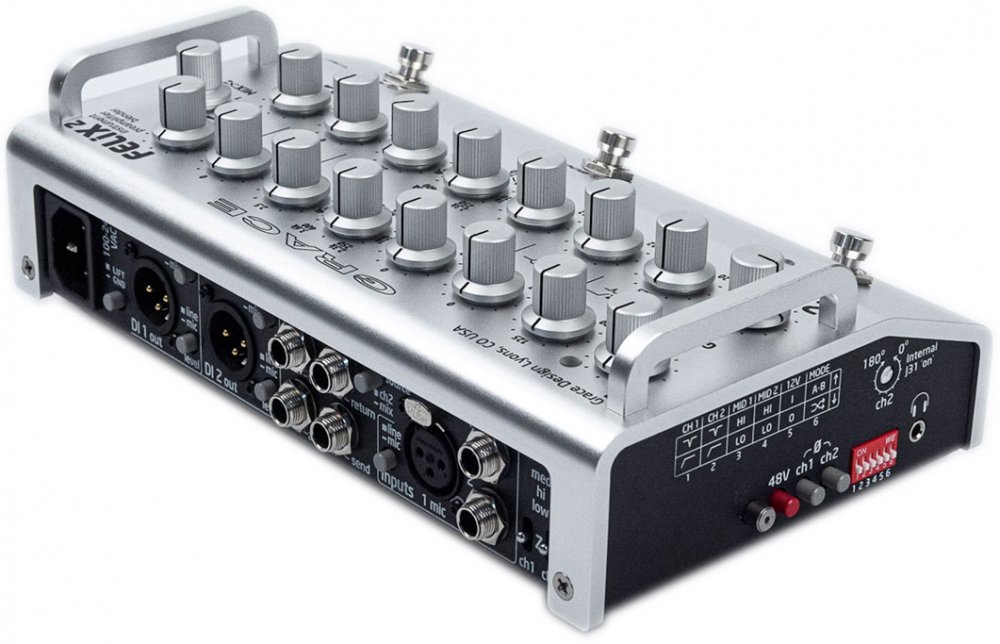

  • Side panel switches for 48V, phase, mid Hz range select, HPF/notch select, 12V and A/B mode select
  • 12V mic input power available on Ch2
  • Phase reverse switch for each channel
  • 3 input impedance settings on each channel - Ch1 10K, 1MEG, 10MEG / Ch2 332K, 1MEG, 20MEG accommodating a wide range of pickup types
  • Mic stand flange mount screw holes holes for putting FELiX on a mic stand
  • 1/8" stereo headphone jack, active when FELiX is muted
  • Stereo FX loop or independent dual mono FX loops
  • NEW CLASS II Universal 100-240 AC power supply with standard IEC cable
  • Full 5 year transferable warranty / built for long, happy life on the road
  • Designed and built by family and friends in Lyons, CO, USA
  • GAIN RANGE (Input to DI Output)
    CH1 Mic input : 21-62dB
    CH1 Instument input : Low Gain: 3-44dB, High Gain: 21-62dB
    CH2 Instument input : -1.5-36.5dB, Boost : 0-9dB

    THD+N 1kHz, 22Hz-22kHz BW (MIC Input to DI Output)
    @ 20dB Gain +10dBu out : <0.0045%
    @ 40dB Gain +10dBu out : <0.0050%
    @ 60dB Gain +10dBu out : <0.010%

    INTERMODULATION DISTORTION - SMPTE/DIN 4:1 7kHz/50Hz (MIC Input to DI Output)
    @ 40dB Gain +10dBu out : <0.05%

    NOISE - REFERRED TO INPUT CH1 MIC @60dB Gain 22Hz-22kHz BW
    50 source : <-128dB

    CMRR @60dB Gain
    100Hz : >55dB
    1kHz : >75dB
    10kHz : >75dB

    FREQUENCY RESPONSE (Input to DI Output)
    Mic input @ 40dB Gain -3dB : 20Hz - 65kHz
    Inst input @ 20dB Gain -3dB : 20Hz - 65kHz

    I/O IMPEDANCE
    CH1 MIC Input : 8.1k
    CH1 Inst Input : HI: 10Meg, MED: 1Meg, LOW: 10k
    CH2 Inst Input : HI: 20Meg, MED: 1Meg, LOW: 332k
    Insert Input : 10k
    DI Outputs : 150
    Amp, Tuner, Headphone and Insert Outputs : 150

    SIGNAL / PEAK LED METER
    Green threshold : -10dBu
    Red threshold : +10dBu

    MAXIMUM INPUT LEVEL
    CH1 MIC : 0dBu
    CH1 Inst : Low Gain: +21dBu, High Gain: 0dBu
    CH2 Inst : +20.5dBu

    MAXIMUM OUTPUT LEVEL - 100k Ohm load, 0.1% THD
    DI Outputs : Line: +20dBu, Mic: -6dBu
    Amp, Tuner, Headphone and Insert Outputs : +22dBu

    High Pass Filter / Notch Filter
    High Pass Filter : 20Hz - 1kHz @ -12dB/octave
    Notch Filter : 20Hz - 1kHz, >-35dB, Q>1.0

    EQ
    Gain : +/- 12dB
    Low Frequency : Low Range: 125Hz Shelving, High Range: 250Hz Shelving
    Mid Frequency : Low Range: 70Hz - 880Hz, High Range: 670Hz - 8kHz
    Mid Frequency Q : 0.5 - 5
    High Frequency : 2kHz Shelving

    OUTPUT NOISE 22Hz-22kHz BW @ MIN Gain
    CH1 MIC Input (50 ohms) to DI Output : <-88dBu
    CH1 Inst Input to DI Output : <-88dBu
    CH2 Inst Input to DI Output : <-98dBu

    EXTERNAL FOOTSWITCH
    MUTE (TIP) : Momentary - Normally Open - Switch to GND < 10
    BOOST / TOGGLE (RING) : Momentary - Normally Open - Switch to GND < 10

    POWER CONSUMPTION
    100-240VAC 50/60Hz : 10 Watts Max

    WEIGHT and DIMENSIONS
    3.2lbs : H3.0" x W9.5" x D5.5"
