Golden Age Project PRE-73 Jr MKII

UPC/EAN #687398893157 MPN #PRE-73 JR MKII

$369.00

Save 19.8%, MSRP $460.00

Be the first to write a review

Free shipping in Canada. Conditions

1073 Vintage Style Microphone Preamplifier

The Golden Age Project PRE-73 Jr MKII is a single-channel vintage-style microphone and instrument preamplifier. The signal path uses only discrete components such as resistors, capacitors, and transistors. The input and output stages are transformer balanced, with each transformer optimized for its purpose. This MKII version features a small format perfectly suited to the UNITE MKII rack kit.

By employing vintage analog circuitry and avoiding integrated circuits, the PRE-73 Jr MKII is able to deliver a prized vintage sound with up to 70 dB of gain. The circuit in the unit is similar to the classic 1073 module with a corresponding sound character that is warm, punchy, sweet, and musical. To reduce unwanted low-end rumbles, engage the 6 dB high-pass filter at either 40 or 170 Hz. To add presence to vocals and instruments, engage the two-position AIR boost to add 3 or 6 dB at 30 kHz. The preamp can supply 48V phantom power for microphones that require it.

Features

Vintage-style Class-A electronics; no integrated circuits in the signal path; no surface mount components

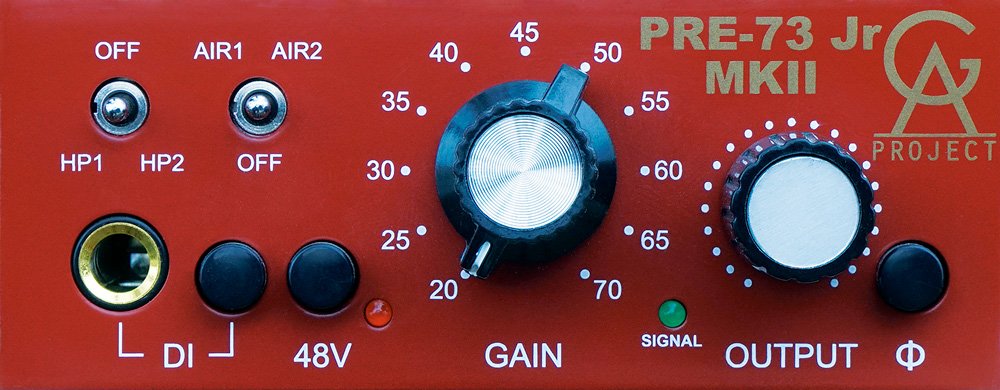

GAIN switch range from 20 to 70 dB

Selectable two-position high-frequency AIR boost EQ, 3 or 6 dB at 30 kHz

Selectable 6 dB/octave two-frequency high-pass filter at around 40 (HP1) and 170 Hz (HP2)

Switchable phantom power and absolute phase

High-impedance instrument input for any sound module, electric guitar, or bass

Simple signal LED indicator

The output level control makes it possible to do fine gain adjustments and also to overload the main gain stage for more character and then lower the signal to a suitable level before the output stage

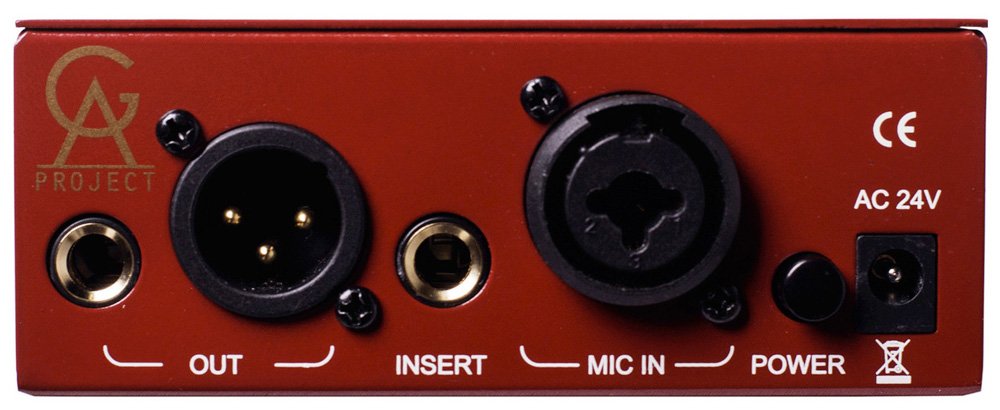

Combo XLR/TRS input jack and separate output XLR and TRS jacks for flexible connections

Insert jack for inserting EQs and other units

Circuit board is prepared for the Carnhill input transformer.

External power supply to avoid interaction with the audio circuits and transformers

Small format makes it possible to mount 4 units in the separately available 19-inch UNITE MKII rack kit

Solid build quality will last for many years of normal use

Specifications

Inputs / Outputs
Audio I/O
1 x XLR 3-Pin Mic Input
1 x 1/4" TS Hi-Z/Instrument Input
1 x XLR 3-Pin Line Output
1 x 1/4" TS Line Output
1 x 1/4" Input/Output

Power
Power Source: AC Adapter with Power Brick (Included)
DC Input Power: 24 VDC

Physical
Mounting: Back: Multiple x UNITE MKII
Color: Red
Cable Length: Not Specified by Manufacturer
Dimensions: 10 x 4.1 x 1.65" / 25.4 x 10.4 x 4.19 cm
Weight: 4.5 lb / 2 kg

Packaging Info
Package Weight: 4.42 lb
Box Dimensions (LxWxH): 13.3 x 10 x 3.7"
