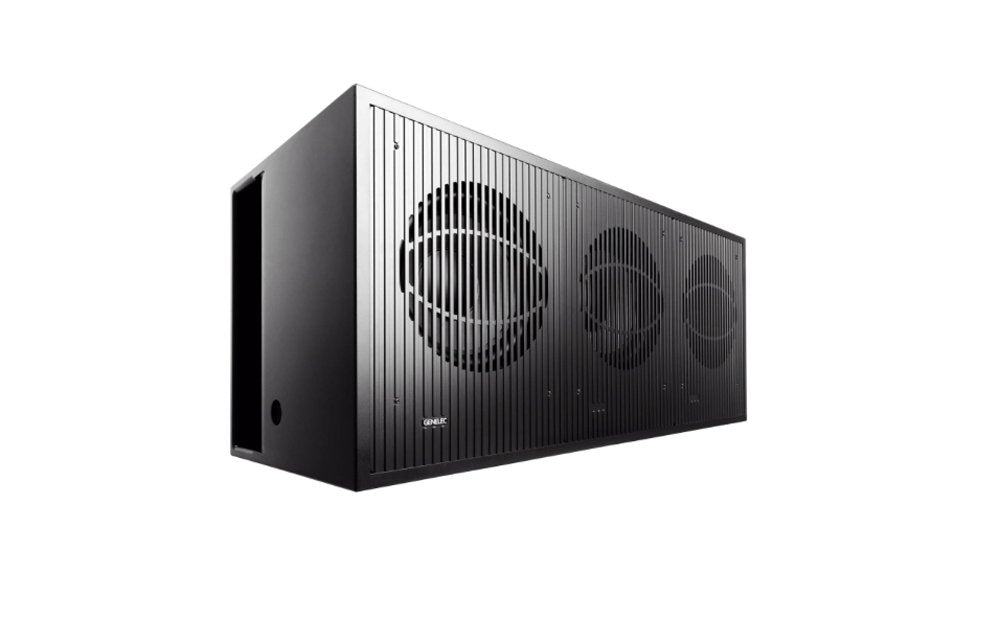

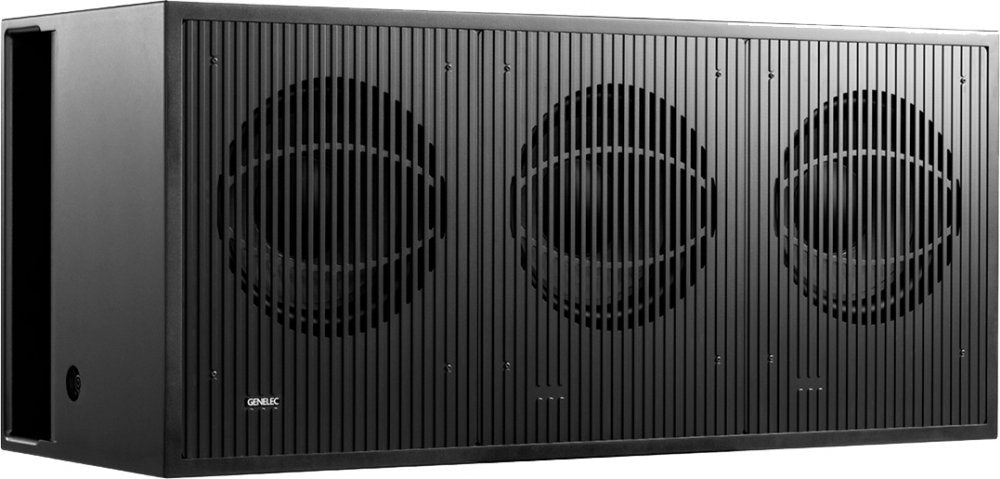

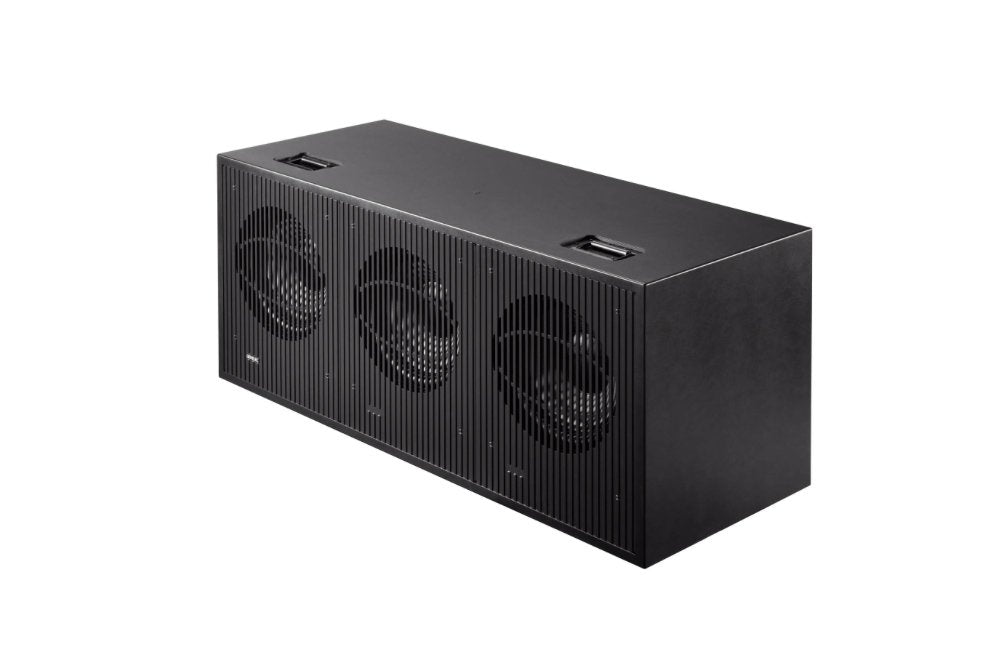

With a frequency response down to 15 Hz, and a maximum SPL capability in excess of 130 dB, the 7382A is Genelec's most powerful subwoofer to date.
Power and flexibility
Combining power and clarity with flexible calibration and bass management features, the 7382A is designed for use in recording studios, film mixing facilities, mastering suites, post-production houses, EDM playback and premium home theatres. With high SPL, low frequency cutoff and low distortion performance, the 7382A provides precise bass articulation even at the very lowest frequencies.
Totally optimised listening
As part of the growing Smart Active Monitoring family, the 7382A tightly integrates with GLM software, via which it can be configured, calibrated and controlled. GLM offers control of bass management, solves issues of subwoofer placement in unpredictable rooms, and even allows the creation of entire arrays of Genelec subwoofers where required. As part of a Genelec Smart Active system, the 7382A produces a totally optimised listening experience, delivering mixes that translate beautifully.
Caractéristiques
Active Crossovers
Bass Management System
Intelligent Signal Sensing (ISS?) Technology
Laminar Spiral Enclosure (LSE?) Technology
Optimized Amplifiers
Protection Circuitry
Smart Active Monitor (SAM?) Systems
Spécifications
Driver: 3 x 15" LF Amplifier Power: 2,500W Frequency Response:
Main Channel: 15 - 100Hz (-6 dB)
LFE Channel: 15 - 120Hz (-6 dB) Maximum SPL: 129 dB Crossover Frequency: 1.8kHz Connectors:
2.1 XLR analog XLR (input), 2.0 XLR analog (output), XLR digital AES/EBU (input & output), 2 x RJ45 control networks Dimensions: 625 x 1400 x 558 mm
(24 58 x 55 18 x 211516 in.); RAM-SW: 3U (19 in.) Weight (Enclosure): 145 kg (320 lb.) Weight (RAM-SW): 11.3 kg (25 lb.) Transducteur: 3 x graves 15" Puissance d'ampli: 2 500W Reponse en frequence:
Canal prinicipal:15 - 100Hz (-6 dB)
Canal LFE: 15 - 120Hz (-6 dB) Niveau maximal de pression sonore: 129 dB Frequence de coupure : 1,8kHz
Connecteurs : XLR 2.1 analogique (entree),
XLR 2.0 analogique (sortie), XLR numerique AES/EBU (entree et sortie), 2 x reseaux RJ45 Dimensions :
625 x 1400 x 558 mm
(24 58 x 55 18 x 211516 po.); RAM-SW : 3U (19 po.) Poids (boitier) : 145 kg (320 lb.)
Poids (RAM-SW) : 11,3 kg (25 lb.)
Package contains:
1 x 7382A subwoofer
1 x individually calibrated RAM-SW amplifier
unit
1 x mains cable
1 x GLM network cable 5 m
1 x Speakon signal cable 10 m (33,3 ft)
1 x user manual
