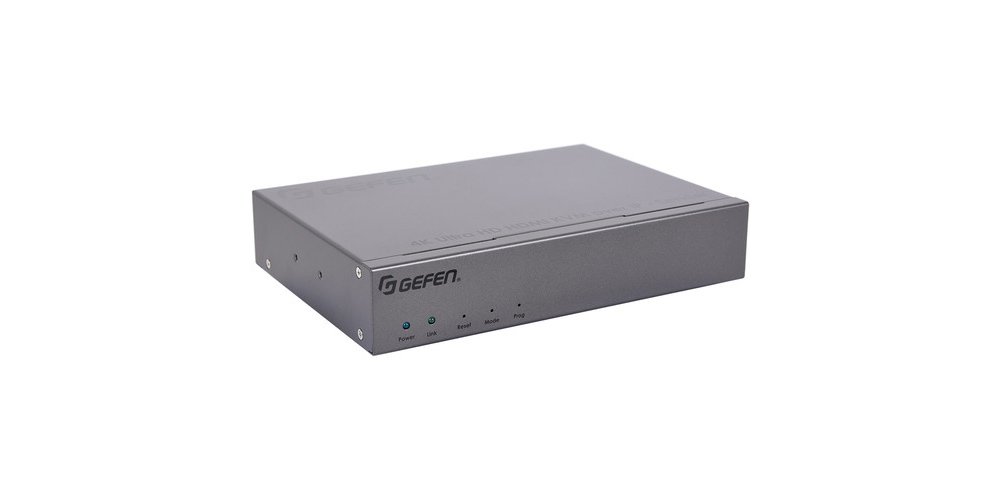

Gefen EXT-UHDKA-LANS-TX
MPN #EXT-UHDKA-LANS-TX
4K Ultra HD HDMI KVM over IP - Sender Package. Extend and Distribute 4K HDMI w/ HDR, USB, RS-232, IR, and 2-way audio over a Local Area Network
Gefen â??s AV over IP solutions continue our tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. Our Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing**, and backward-compatibility with our first generation products. Each Sender and Receiver extends and routes video, USB, 2-way audio, RS-232, and IR.Â
The EXT-UHDKA-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio can pass through the system as well.Â
The Sender unit features a video output for local monitoring of the source. USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the (more...)
Features
Extends HDMI, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
Independent video, USB, RS-232, IR, and audio routing**
Backward-compatible with first generation Gefen AV over IP products
Supports input resolutions up to 4K 60Hz 4:2:0
Supports output resolutions up to 4K 30Hz 4:4:4Â
Supported HDMI Features:
 HDR
 HDCP 2.2 and 1.4
 Deep Color
 Lip-Sync
Uncompressed LPCM digital audio up to 7.1 channelsÂ
Up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby AtmosÂ, Dolby TrueHD, DTS:Xâ?¢, and DTS-HD Master Audioâ?¢
When used with Gefen DVI-to-HDMI cables (not included), supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920-1200 (WUXGA)
Video output on Sender unit for local monitoring of the source
KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
Built-in video wall controller accommodates any number of rows and columns up to 16-16
Built-in Audio De-Embedder on Receive(more...)
Specifications
General
Device Type: Video/audio/infrared/serial extender
Form Factor: External
Networking
Connectivity Technology: Wired
Data Link Protocol: HDMI
Max Resolution: 2160p @ 60 Hz
Max Video Bandwidth: 165 MHz
Max Transfer Distance: 328 ft
Features: LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, built-in audio de-embedder, Dolby Atmos support, DTS:X support, HD (HBR) audio
Compliant Standards: HDCP 1.4, HDCP 2.2
Expansion / Connectivity
Interfaces:
1 x HDMI (input) - 19 pin HDMI Type A
1 x HDMI (output) - 19 pin HDMI Type A
1 x IrDA (input) - mini jack
1 x IrDA (output) - mini jack
1 x audio (input) - mini jack
1 x audio (output) - mini jack
1 x USB 2.0 - Type B
1 x RS-232 - DB-9
1 x network (PoE) - RJ-45
Included Accessories: 4 self-adhesive rubber feet, mounting brackets
MTBF: 50,000 hours
Power
Power Device: External power adapter
Power Consumption Operational: 7.2 Watt
Dimensions & Weight
Width: 8.4 in
Depth: 5.9 in
Height: 1.7 in
Weight: 2.2 lbs
