Gefell M300 Stereo
MPN #2111239

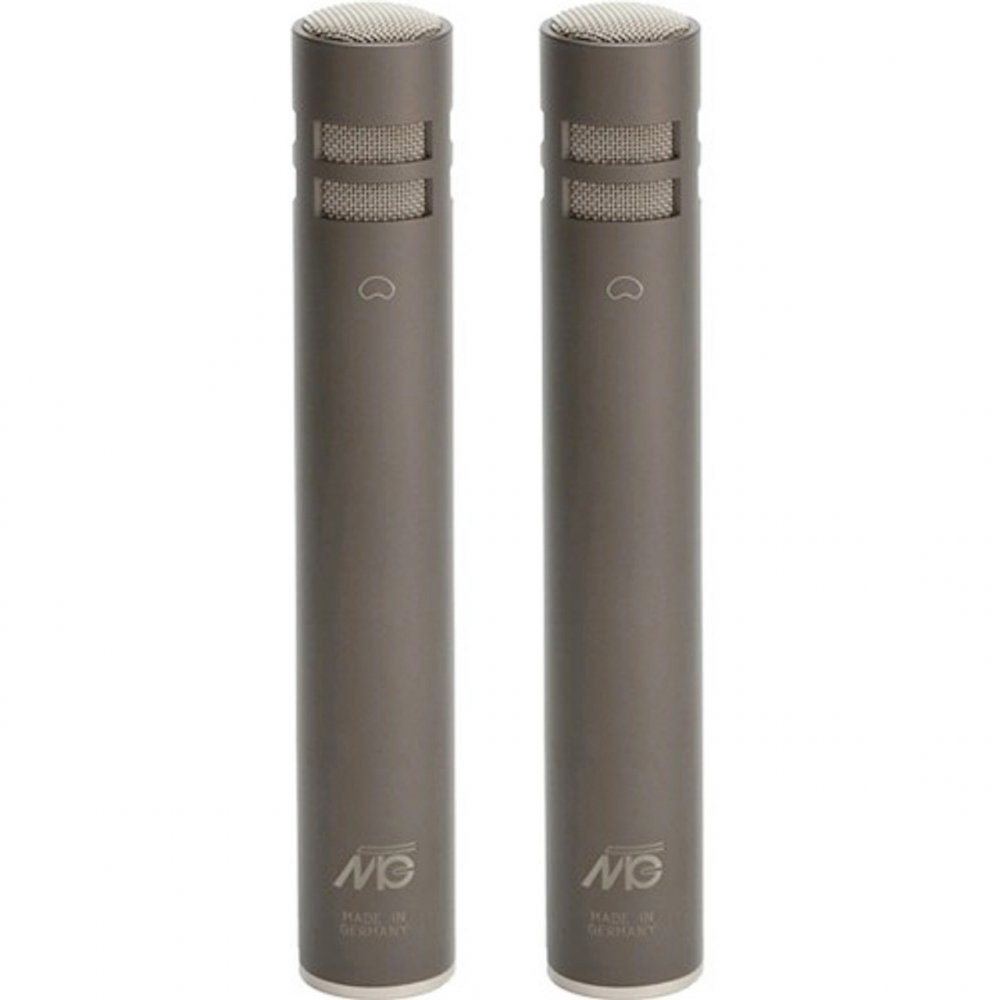

Matched pair of miniature condenser mics M300-Stereo, dark bronze
The M 300 is a compact condenser microphone in studio quality. The frequency response of the transmission factor is practically linear for a wide range of sound incidence and has a smooth treble boost rising to about 3 dB between 6 and 10 kHz. The miniature microphone is well suited for vocal and instrumental soloists. lt permits a lifelike recording also at various sound incidence, e.g. announcer in synchronous studios, speaker, blower.
The M 300 is designed for studio applications in radio, television broadcasting and films for live performance and recording of instruments, vocals and speech and sound reinforcement in the professional and
semiprofessional market also under adverse acoustic conditions, e.g. in churches.
A new low-noise integrated hybrid circuit and the transformerless circuit design guarantee an extremely wide dynamic range by a low equivalent loudness level and a high reliability in operation.
RFI susceptibility is very low.
The microphone is powered by a 3-pin XLR connector with the C 70 microphone cable. The power supply is provided by 48 V phantom powering, which is internationally standardized as P 48 in DIN 45596 and
IEC 268-15. A two-channel powering is possible with the N 200 power supply.
The finish of the miniature microphone is dark bronze.
Features
High-Quality Audio Capture: Compact condenser microphone with a cardioid polar pattern, delivering studio-quality sound for vocals, instruments, and speech.Wide Frequency Response: Smooth, nearly linear frequency response with a slight treble boost for enhanced clarity, ideal for various sound sources.Versatile Applications: Suitable for studio recording, live performances, broadcasting, and film; performs well even in challenging acoustic environments.Low Noise & Reliable Performance: Built with a low-noise hybrid circuit and transformerless design, ensuring a wide dynamic range and dependable operation.Reduced Interference: Designed to have very low radio frequency interference (RFI) susceptibility.Standardized Power Supply: Operates via a 3-pin XLR connector with 48V phantom power.Elegant Design: Comes in a dark bronze finish, with additional accessories like a windscreen, table stand, and various mounts available.
Specifications
General
Type: Condenser miniature microphone
Polar Pattern: Cardioid
Acoustical Operating Principle: Pressure gradient transducer
Frequency Range: 40 Hz " 18,000 Hz
Sensitivity (at 1 kHz): 12 mV/Pa
Output Impedance: 100 ?
Connector Type: 3-pin XLR with gold-plated contacts
Finish: Dark bronze
Performance
Equivalent Loudness Level (Inherent Noise): 26 dB (CCIR-weighted), 16 dB (A-weighted)
Signal-to-Noise Ratio (1 Pa at 1 kHz): 68 dB (A-weighted), 78 dB (CCIR-weighted)
Maximum SPL (Sound Pressure Level) for 0.5% THD: 147 dB
Dynamic Range: 131 dB
Current Consumption: 3.3 mA (with P48 phantom power, per DIN 45596, IEC 268-15)
Dimensions & Weight
Dimensions: 130 mm (length) x 21 mm (diameter)
Weight: 126 g
Powering
Phantom Power Requirement: 48 V, standardized as P48
Included Accessories
Wooden case
Windscreen (black)
Optional accessories: Table stand, double mount, gooseneck, elastic suspension, pop screen, and various connection cables (order numbers available for each item)
Applications
Intended for professional and semi-professional use in studio applications, including:
Vocal and instrumental solo recordings
Radio, television, and film sound recording
Sound reinforcement in challenging acoustic environments (e.g., churches)
Stereo Recording Capabilities
Supports stereo configurations:
XY arrangement
ORTF arrangement (specifically for matched pairs)
