The Panamax MIW-XT is a code-compliant in-wall extension system that delivers clean, noise-free power from Panamax or Furman power management units to remote AV equipment. Perfect for flat-panel displays, ceiling-mounted projectors, or powered subwoofers, it provides a professional, streamlined installation by discreetly routing both power and signal lines within the wall.
Designed with an ultra-thin profile, the MIW-XT allows displays to hang less than one inch from the wall. It includes a filtered outlet with built-in EMI/RFI noise suppression, ensuring optimal AV performance by reducing power line interference. A 6-foot detachable inlet power cord and 11-inch flat plug output cord make connection simple and flexible, while CSA certification ensures compliance with electrical codes.
Caractéristiques
Extends Clean Power: Delivers safe, filtered power from Panamax or Furman units to remote displays, projectors, or subwoofers.
Ultra-Thin Profile: Slim design lets equipment mount less than one inch from the wall.
Integrated Noise Filtration: Built-in EMI/RFI filtering reduces interference for cleaner audio and video.
Discreet Installation: Power and signal cables run hidden inside the wall for a clean, professional look.
Protected Equipment Coverage: Maintains equipment protection policies when used with compatible power management devices.
Expandable System: Supports optional MIW Signal Line Modules (sold separately) for added signal routing.
Code-Compliant and Certified: CSA-certified for safe in-wall use with compatibility for both plastic and metal boxes.

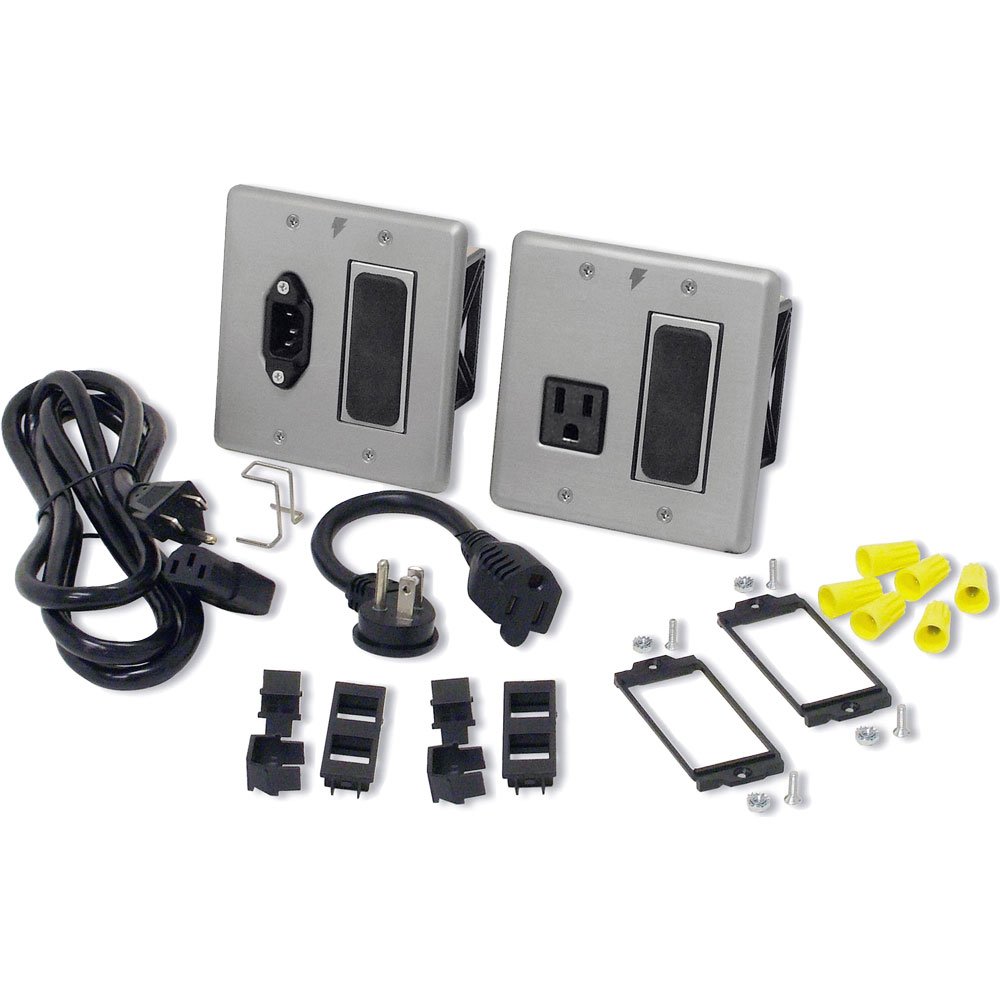

Detachable Power Cords: Includes 6-ft inlet cord and 11-inch flat output plug for flexible installation.
Spécifications
General Specifications
Product Name: MIW XT
Product Type: In wall power and signal bay extension system
Family: In Wall Series
Line Voltage: 120 Volts
Number of Outlets: 1
Outlet Type: 1 filtered outlet
Compliance: CSA certified
Dimensions: 4.75 in W x 0.25 in D x 4.75 in H
Weight: 2.9 lbs
UPC: 050616008488
Compatible Wall Boxes: New Work Plastic: Carlon SC200DV, New Work Metal: Raco 8355, Old Work Plastic: Carlon B114R, Old Work Metal: Raco 508 (hardware removed)
AC Protection and Power
Maximum Current Rating: 15 Amps
AC Protection Technology: Not applicable
Undervoltage Shutoff: Not applicable
Overvoltage Shutoff: Not applicable
Power Cord: 6 foot detachable inlet cord, 11 inch flat plug output cord
Filtration
Filtration Type: RFI and EMI noise filtration built into the outlet
Installation and Features
Profile: Ultra thin design allows equipment to mount within one inch of the wall
Signal Line Compatibility: Supports optional MIW signal line modules (sold separately)
Cable Management: Power and signal lines hidden in the wall for clean installation
Connected Equipment Policy: Extended when used with Panamax or Furman power components
