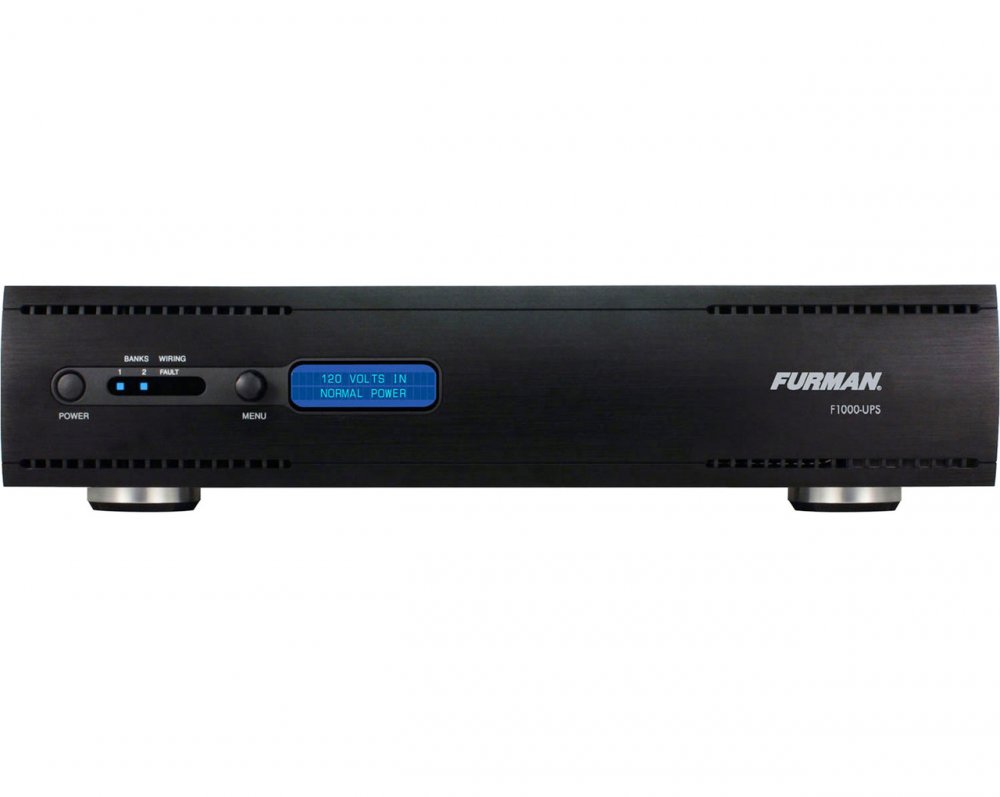

Uninterruptible power supply with 8 outlets, 1000VA - 600W, battery backup / power conditioner. AVR, RS-232 & USB interface, no fan, 2RU
The Furman F1000-UPS: battery backup is designed exclusively for audio/video professionals and home theater aficionados.
For decades, traditional audio/video components were simple analog devices designed to easily weather power outages of well over two seconds. Later, as computer and microprocessor based components gained in popularity, their extraordinary sensitivity to even a fraction of a second?s power loss was managed with traditional UPS (uninterruptible power supply) technology.
Unfortunately, these units were solely designed for the I.T. professional. Though they included many technologies and features appropriate to that application, they fell short for premium audio/video components. Though many of these manufacturers later recognized the ever emerging professional audio/video, broadcast, and home theater market, their lack of experience led merely to a re-tooled chassis. These hastily produced UPS devices lacked the technologies necessary to truly optimize protection, performance, and control for today?s audio video components.
The Furman F1000-UPS more than fills this void, and offers your system unparalleled battery back-up technology, created from the ground up to meet the exacting demands of the world?s most sensitive audio, video and control systems!
Typical UPS systems feature antiquated surge suppression technologies that can cause as much damage and annoying lock-ups as they attempt to prevent. Only Furman offers battery back-up with our road-proven SMP non-sacrificial, zero ground contamination surge suppression technology and EVS Extreme Voltage Shutdown. After all, the most robust battery can not function if the accompanying circuits are damaged. With Furman?s F1000-UPS, you can expect years of trouble free operation.
Though many control devices are relatively immune to moderate levels of AC line noise, today?s more sensitive devices (such as DLP projectors and line-level signal processors) certainly are not. High-definition technologies have pushed resolution to levels so extreme that virtually any AC noise capable of coupling with your system?s signal will distort, mask, or destroy the performance advantages we all strive so hard to capture and reproduce. Once again, the F1000-UPS is different. While other UPS devices feature AC line filters suitable for a I.T. closet, only Furman employs our exclusive Linear Filtering Technology (LiFT). This advanced noise filtering technology assures that today?s ultra-wide dynamic range is maintained as it must be " pristine. Remember, less AC noise equals greater content, greater resolution, and higher definition.
Programmability & Control
Audio/video systems can vary greatly in their size and components, and as such, flexibility is needed in determining how a battery backup solution should function under different circumstances. Because of this, Furman has provided open source RS-232 control over two independent AC outlet banks, with a wide range of control features to interface with an existing automation solution. Dual programmable IR control allows the unit to send a shut down command to remote components " no more expensive projector bulbs to replace in the event of a blackout.
* As with any battery back up system, the battery pack must be replaced periodically (typically every 2 years)
Typical Backup Components
Given the nature of battery backup technology, high-current audio and video components such as power amplifiers, powered subwoofers, and high-wattage displays are not recommended for use with the F1000-UPS. Not only will these components drain battery power quite rapidly, line impedance will be raised due to the F1000-UPS?s (or any) AVR and AC to DC inverter, which can induce current compression and noticeably diminish performance with high-current A/V equipment. The following components are ideal for use with the
Digital Video Recorders
External Hard Drives
Digital Mixing Consoles
Lamp Based Video Displays
For power management of other components, Furman recommends Classic or Prestige Series Power Conditioners. For high-current components such as power amplifiers and powered subwoofers, solutions featuring Furman?s exclusive Power Factor Technology are ideal.
Surge ProtectionFurman?s exclusive SMP technology provides the highest level of surge & spike protection available.Noise FiltrationLiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.Voltage ProtectionAdvanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.Diagnostic LightsLED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.Standard Voltage RegulationStandard Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities.Battery Backup1000VA Simulated Sine Wave battery backup protects your data in a power failure allowing the opportunity to save your applications, programs, and shut-down the system gracefully.Infrared ControlLearning IR control allows you to program connected equipment for shut-down sequencing.RS-232 ProtocolRS-232 Open Source Code Protocol provides custom programming for connected equipment.12 AMP Rating12 Amp rating featuring a circuit breaker for added protection.Eight Total Outlets8 rear panel outlets.Critical Load ManagementCritical Load Management prioritizes the allocation of temporary power to connected equipment.Power Control SoftwareEasy to use power control software assists you in maximizing the performance of your UPS.
Line Voltage120 (Volts)
Number of Outlets 8
Number of Isolated Banks 0
Outlet Descriptions All 8 outlets surge protected, linearly filtered, and backud up
Rack Mountable Yes
Rack Ears Included Yes
Front Panel Meter(s) LCD Displays status and menu navigation items
Front Media Light(s) No
ControlRemote control through RS-232 serial port
AC Power Cord10 ft, captive
Dimensions 17? W (19? w/ rack ears) x 13? D x 3.5? H (4? tall with feet installed)
Weight 36 lbs.
Input Frequency 57 " 63 Hz
Regulation Capture Range 99 " 135V (Sensitive Mode) 94 " 142V (Standard Mode)
Output Frequency 60 Hz Â± 1%
UPS Output Capacity 1000VA, 600W @ 0.6pf
Regulation Output Range120V Â± 5% (Sensitive Mode)
120V Â± 10% (Standard Mode)
UPS Backup Time (Full Load) 3 minutes
Transfer Time< 10ms
AC Protection Technology Non-sacrificial SMP (Series Multi-Stage Protection)
Under-Voltage Shutoff 90V Â± 5V
Over-Voltage Shutoff 150V Â± 5V (fast rise)
132 Â± 5V (slow rise)
Maximum Current Rating12 (Amps)
Filtration Technology Linear Filtering Technology (LiFT)
Filtration Rating10 dB @ 10kHz
40 dB @ 100 kHz
50 dB @ 500kHz
Length 22.2 (Inches)
Width 17.6 (Inches)
Height 9.4 (Inches)
Weight 37.25 (Lbs)
