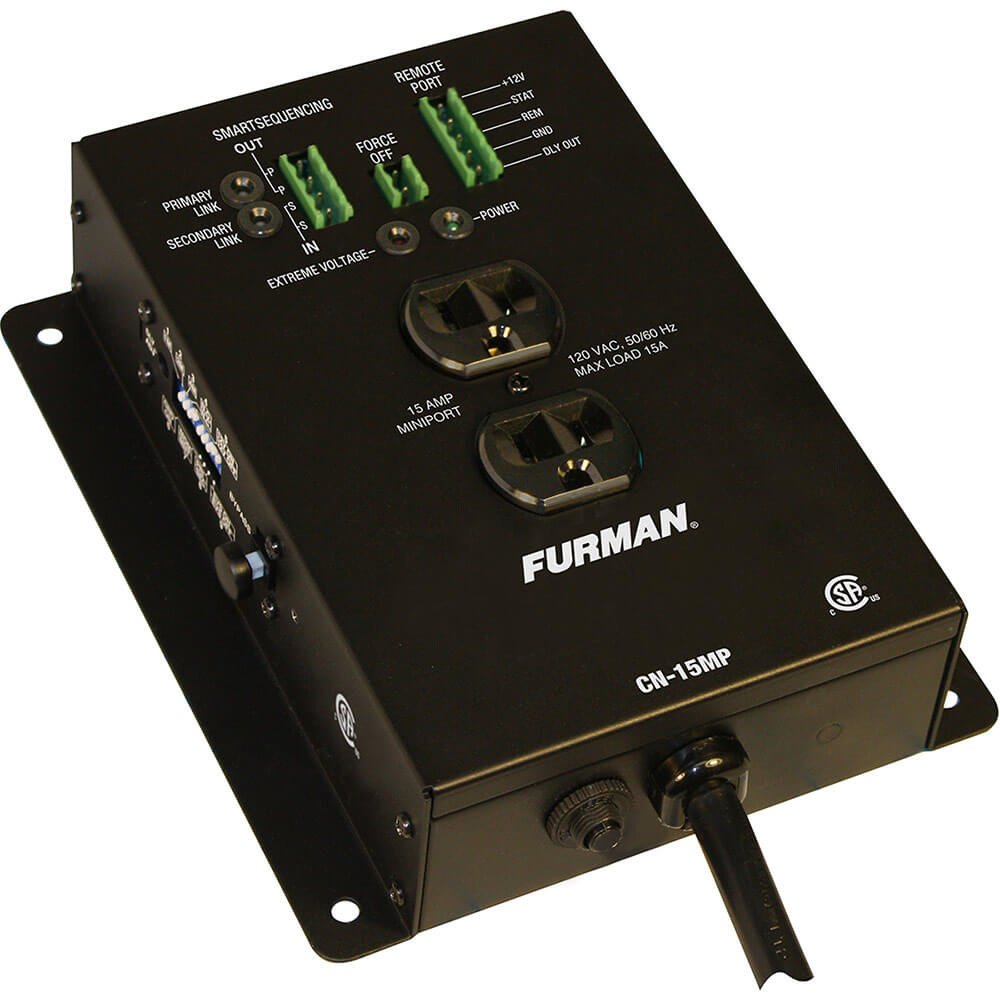

Furman CN-15MP

UPC/EAN #654061028475 MPN #CN-15MP

$499.00

Be the first to write a review

Free shipping in Canada. Conditions

15A MiniPort remote sequencing accessory with IP control and EVS

Furman's Contractor Series MiniPorts extend the benefits of SmartSequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman SmartSequencer, legacy Furman sequencer, third-party sequencers, and/or control and automation systems.

DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or digital link (SmartSequencing from CN-1800S or CN-2400S).

The CN-15MP can shut itself off automatically when triggered by a fire alarm.

Features

SmartSequencing? " SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.

Voltage Protection " Extreme Voltage Shutdown (EVS) safeguards from catastrophic under-voltage (under 80V sustained) or over-voltage (over 145V sustained) conditions. The EVS feature can be selectively enabled or disabled according to the preference of the user.

Diagnostic Lights " Diagnostic lights provide valuable system information including power quality.

15 Amp Output Current " 15 amp maximum current capacity with incorporated 15 amp thermal circuit breaker.

DIP Switch Customization " DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

Specifications

AC Voltage Input Range 90-139VAC, 50/60Hz

Maximum AC Current Rating 15 amps (Thermal breaker)

AC Cord 3/14AWG, 10 feet, black, fixed, NEMA 5-15P plug

AC Receptacles 2 NEMA 5-15R's (1 duplex)

AC Undervoltage Protection EVS, 77VAC+/-3VAC

AC Overvoltage Protection EVS, 140VAC+/-5VAC

AC Overvoltage Reset Modes Manual and Auto-reset (configurable)

Operating Temperature Range 5C (40F) to 40C (105F) degrees

Humidity Range <90% rH (Relative Humidity)

Circuit Breaker Pushbutton, 15A

Front panel diagnostic indicators (LED) Power, Extreme Voltage, Primary Link, Secondary Link

Side Panel DIP Switch Features (with security cover) 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off GND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual

Side Panel Potentiometer allows fine tune delay adjustments

Remote Terminal +5-30VDC In, 12VDC (12mA) Out

SmartSequencing Phoenix-type 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop " 1000' nominal)

Remote Terminal Phoenix-type 5-Pin Connector With Screw Terminals; +12V, STAT, REM, GND, DLY_OUT (Class 1 Wiring)

Force Off Phoenix-type 2-Pin Connector With Screw Terminals, FORCE OFF (Class 1 Wiring)

RS-232 Compatible Yes, indirectly, when connected via SmartSequencing to a Furman Smart Sequencer with an RS-232 port

Voltmeter Available with SmartSequencing, ± 2VAC accuracy

Ammeter Available with SmartSequencing, ±1A accuracy

Power Consumption (No Load) 10 Watts

Safety Agency CSA, RoHS Compliant
