Focusrite RedNet-R1
UPC/EAN #815301004172
MPN #REDNET-R1
$1375.00 (Open Box)
Save $124.00, New $1499.00
The Focusrite RedNet-R1 is the first Dante, Pro Tools | HDTM and Thunderbolt TM interface system with a desktop monitor controller
RedNet R1 is designed for professionals who need to adapt their audio configurations quickly to suit the ever-increasing demands of the studio environment, and interact with their audio system like never before. Inputs from one of eight channels (from 32 possible sources) can be mixed and routed to up to 12 monitor output channels, formatted from mono through to 7.1.4 surround, providing the flexibility to monitor in a range of common setups including Dolby Atmos and other immersive audio workflows. Alternatively, completely custom setups of up to 12 outputs can be configured for bespoke speaker configurations.
RedNet R1 can be set up to control groups of outputs from the multitude of sources and destinations available to Red interface users. From Pro Tools? | HD and other DAWs, analogue inputs and outputs, ADAT and S/PDIF connections, and from entire Dante audio ecosystems, audio can be switched and summed cross platforms, simultaneously and interchangeably. Top-panel control includes level, reference level preset selection, dim, mute and a variety of solo modes. There's an A/B switch for switching between monitoring presets, and up to four fold-down presets allow fast switching for checking downmixes.
RedNet R1 also features Dante-enabled talkback, an internal mic preamp for connecting an external talkback mic, built-in microphone and a high-powered headphones output, so you can monitor audio inputs and outputs, and interact with talent and other users on the system. Up to four talkback destination groups are available when used with a Red interface (when used with other Dante devices, a single talkback group is available).
Two LCDs display highly accurate level metering of the outputs, sources and headphone outputs, and provide visual cues for navigating menus. RedNet Control software is used to quickly set up both simple and complex monitoring and routing configurations. Other features include a quarter-inch jack socket, which accepts a footswitch for talkback management, LFE muting and more. RedNet R1 can be powered via Ethernet to reduce cabling complexity (using the PoE standard), or by the supplied DC power supply.
Features
The first Dante, Pro Tools | HD and Thunderbolt interface system with a monitor controllerSwitch and sum a maximum of eight channels, each of up to 12 sources per channel, from 32 available audio sourcesSupports up to 12 monitor output channels formatted from mono through to 7.1.4 surroundFlexible monitor controls include level, preset level selection and lock, plus dim, mute and a variety of solo modesA/B switch for switching between monitoring setupsUp to four fold-down presets allow fast switching for checking downmixesTalkback functionality provides four destination groups when used with a Red interface, or a single talkback group when used with other Dante devicesBuilt-in internal microphone, or users can connect their own via the rear-panel XLRTwo LCDs display highly accurate level metering of the outputs, sources and headphone outputs, and give visual cues for navigating menusHigh-fidelity headphone output can take its source from a multitude of analogue or digital locationsRedNet Control software with hardware focused workflow is designed for quickly setting up simple or complex configurationsQuarter-inch jack footswitch input socket for talkback management, LFE muting and morePowered via Ethernet (using the PoE standard), or using the supplied DC power supply
Specifications
INTERNAL TALKBACK
Note: All measurements taken at maximum gain unless otherwise stated, Rs = 150
Gain Range: 0dB to 55dB
Type: Electronically Balanced, Zin = 3k
Max. Input Level: +10dBu ± 0.5dB
EXTERNAL TALKBACK
Note: All measurements taken at maximum gain unless otherwise stated, Rs = 150
Gain Range: 0dB to 55dB
Max. Input Level: +10dBu ± 0.5dB
Frequency Response: 20Hz - 20kHz ± 2dB
THD + N: Less than -98dB (0.0012%) @ -1dBFS
EIN: Less than -128dBu 'A'-Weighted (typical)
Signal-To-Noise Ratio: -111dB 'A'-Weighted (typical), min gain
Common-Mode Rejection Ratio: 50/60Hz CMRR: <-77dB
Type: Electronically Balanced, Zin = 3k
HEADPHONE OUTPUT
Note: All measurements taken at +19dBm reference level, maximum gain, RL = 600
0 DBFS Reference Levels: +11dBm
Frequency Response: 20Hz to 20kHz ±0.5dB
THD + N: -100dB (0.001%) @ -1dBFS, Rs = 150R
Dynamic Range: 108dB 'A'-weighted (typical), 20Hz - 20kHz
Noise In Presence Of Signal (NiPoS): Greater than -97 dBu 'A-Weighted'
Output Impedance: 5
Headphone Impedance: 32 - 600
MICROPHONE/ LINE CROSSTALK
Mic Input To Headphone Output: Less than -122dB; 20Hz - 20kHz (all other channels at 0dBFS)
Headphone Output To Mic Input: Less than -84dB; 20Hz - 20kHz (all other channels at 0dBFS)
HEADPHONE CROSSTALK
Left To Right: Less than -85dB; 20Hz - 20kHz (all other channels at 0dBFS)
Right To Left: Less than -85dB; 20Hz - 20kHz (all other channels at 0dBFS)
DIGITAL PERFORMANCE
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
Clock Sources: Internal or from Dante Network Master

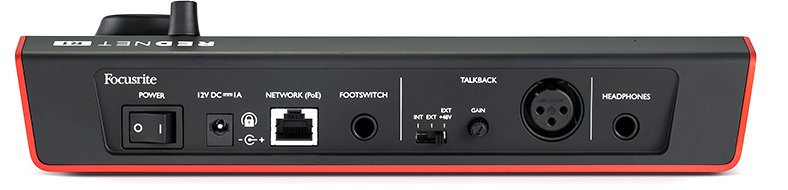

REAR PANEL CONNECTIVITY, POTS & SWITCHES
External Talkback Mic Input: 1 x XLR (F)
Foot Switch: 1 x 1/4" stereo jack
OUTPUTS
Headphone Outputs: 1 x 1/4" stereo jack
POTS & SWITCHES
Power Switch: 1 x Switch
Talkback Gain Pot: 1 x Pot
Talkback Switch: 1 x Tri-State Switch (External Talkback + 48V, External Talkback and Internal Talkback)
PSU & NETWORK CONNECTIONS
PSU (PoE And DC): 1 x PoE Input and 1 x DC 12V Locking Barrel Input Connector
Network: 1 x Standard RJ45 connector

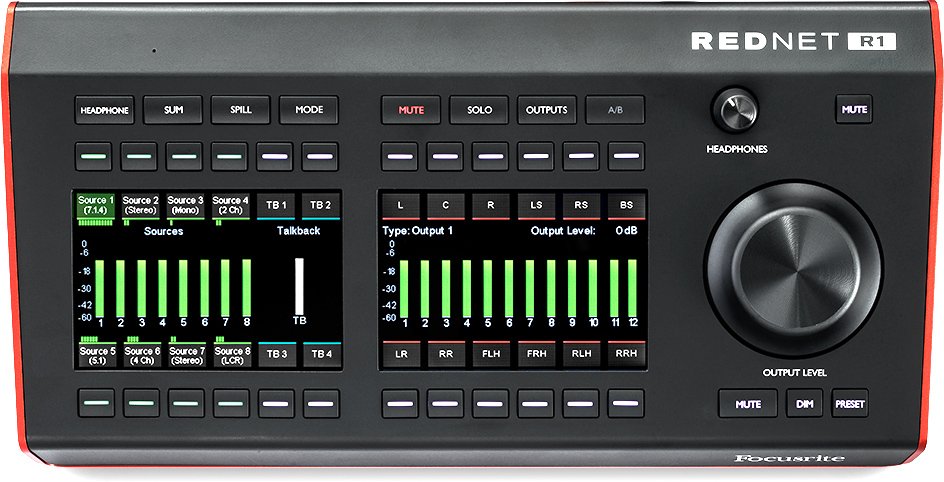

TOP PANEL INDICATORS
LCD Screens: 2 x Screens (Control, Status, Metering & Menus)
Control Functions: 2 x Continuous Pot (Level & Dim). 1 x Pot (Headphone Output). 24 x Multi-Function Switches (Sources, Talkback, Monitor Outputs & Menu Items). 12 x Single-Function Switches (Headphones, Sum, Spill, Mode, Mute, Solo, Outputs, A/B, Cut x 2, Dim & Output Lock)
POWER
Power Over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
DC Power Supply: 1 x 12V 1.2A DC Power Supply
Power Consumption: PoE: 10.3W - DC: 9W (When using supplied DC PSU)
HEAT PERFORMANCE
Operating Temperature: Operates at up to an ambient temperature of 40 degrees Celsius
