RedNet D16RMKII is a 16x16 AES3 I/O With Dual PSUs
RedNet D16R is a 1U, 16x16 AES3 interface for any Dante audio-over-IP network. Featuring network and power supply redundancy, RedNet D16R is the ideal choice for providing AES3 I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio. Perfect for bridging between digital consoles, power amplifiers or any other AES3-equipped audio equipment and any Dante network, RedNet D16R has SRC (Sample Rate Conversion) on each input pair allowing plug-and-play operation with any AES3 source.
Two rear-panel DB25 connectors wired to the AES59 standard provide eight pairs of AES3 I/O, while an additional pair of XLR connectors allows flexibility in cabling choice for one pair of I/O. Additional RCA connectors allow the connection of consumer S/PDIF equipment. All external audio inputs include sample rate conversion, further reducing cabling and clocking complexity. Word Clock I/O on BNC connectors allows external devices to clock to RedNet D16R, or alternatively allows RedNet D16R to act as a network clock grand master slaved to external input. Power is supplied through a pair of locking IEC power inlets, and network connections are provided with a pair of locking Neutrik etherCON connectors; providing redundant operation or daisy-chained operation.
16x16 AES3 I/O for Dante audio-over-IP networksUp to 24-bit, 192kHz sampling rates with sample rate conversionAES67 compliantDual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliabilityFlexible input options: DB25, XLR, RCA Word Clock I/O and DARS input for increased flexibilityCombined digital I/O to AES59 standard on DB25 connectorsComprehensive front-panel metering and indicatorsRemote monitoring software with powerful graphic user interfaceBrainworx bx_console Focusrite - exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
Input Sample Rate Converters
Sample Rate Range: 32 to 216 kHzGain Error: -0.3dBDynamic Range: > 138dB (-60 dBFS method)THD + N: < -130dB (0.00003%); 0 dBFS inputLatency: 11 to 45 samples (network and input sample rate dependent).
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bitClock Sources: Internal, Word Clock, DARS, AES input 1-2, AES input 9-10 or from Dante Network Master.

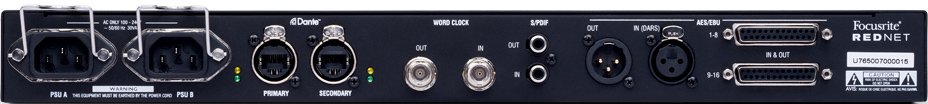

Rear Panel Connectivity
2 x 2 S/PDIF Channels (reduces AES/EBU input channels)Input and Output: 2 x DB-25 connectors (AES59 Combined I/O / Tascam Digital)Alternate Input (optional DARS): 1 x Female XLR (replaces DB-25 channels 1-2)Alternate Output: 1 x Male XLR (duplicates DB-25 channels 1-2)S/PDIF
Channel Count: 2 x 2 S/PDIF Channels (reduces AES/EBU input channels)Input: 1 x RCA phono socket (replaces DB-25 channels 3-4)Output: 1 x RCA phono socket (switchable, duplicates any DB-25 channel pair)PSU: 2 x IEC Inputs with retaining clipsNetwork: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectorsAES/EBU Channel Count: 16 x 16 AES/EBU channels

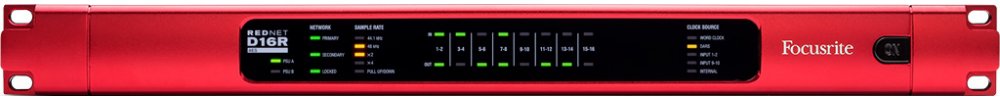

Front Panel Indicators
Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present.Secondary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present.Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode. When in Switched mode, a valid network connection at either Primary or Secondary network port will cause this LED to illuminate.Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode. Not used in switched mode.Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master, shows lock to indicated clock source. Flashing indicates external clock is selected but not connected.Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4.Pull Up/Down: Orange LED. Indicates unit is set to operate on a Dante pull up/down domain.Signal Indicators: 16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS.Clock Source: Orange LED for each: Internal, Word Clock, DARS, Input 1-2 and Input 9-10.
Redundant: Allows unit to connect to two independent networks.Switched: Connects both ports to integrated network switch allowing daisy-chaining of devices.
Height: 44.5mm/ 1.75"Width: 482.6mm/ 19"Depth: 263mm/ 10.35"Weight: 3.84kg
PSU: 2 x Internal, 100-240V, 50/60Hz, consumption 30VA.
GTIN (UPC/EAN) : 815301001195
Manufacturer Part Number : REDNET-D16RMKII
