The Focusrite A16R MKII is a 16x16 Analogue I/O With Independent Level Control
RedNet A16R MkII is a 16-channel analogue interface for Dante® networks, with two channels of AES3 I/O. Precision A-D and D-A conversion provides 119dB of dynamic range, flat from 20Hz - 20kHz (+/- 0.15dB). Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary EtherCON network connectors, RedNet A16R MkII is perfect for critical-path applications in recording, post production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.

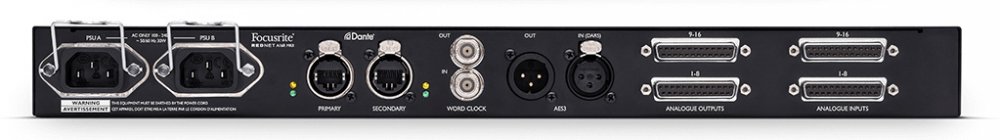

Analogue inputs and outputs are connected through four rear-panel AES59 standard DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MkII, or alternatively allows RedNet A16R MkII to act as a network clock grand master, following an external input.
RedNet A16R MkII is well suited to both permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite Pro products come with a three-year warranty and award-winning customer support.
16 channels of high-quality line-level analogue I/O for Dante Audio-over-IP networksIndividual input/output channel level control and calibration available in +/- 1db increments via digital trim fader with mute and dim functions24-bit precision conversion up to 192kHz119dB dynamic range, flat from 20Hz - 20kHz, +/-0.15dBSoftware-selectable +24dBu or +18dBu level alignmentAES67, AES70 and SMPTE 2110 compliantDual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliabilityWord Clock I/O and DARS input for increased flexibility plus an additional two channels of AES3 I/OAnalogue I/O to AES59 standard DB25 connectorsComprehensive front-panel metering and indicatorsRedNet Control remote monitoring software with powerful graphic user interface
0 DBFS Reference Levels+18 or 24dBu (switchable) (will this need to be restated due to variable level controlFrequency Response20Hz - 20kHz ± 0.1dBTHD+NLess than -100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS inputEIN-96dBu A-Weighted (typical)Signal-To-Noise Ratio120dB A-Weighted (typical)Converter Dynamic Range120dB A-Weighted (typical), 10Hz - 20kHz
0 DBFS Reference Levels Outputs: 18 or 24dBu (switchable)Frequency Response Outputs: 20Hz - 20kHz ± 0.1dBTHD N Outputs: <-100dB (0.001) unweighted, 20Hz - 20kHz; 23dBu inputNoise In Presence Of Signal: -94dBu A-Weighted (typical)Dynamic Range: 118 dB A-Weighted (typical)Converter Dynamic Range Output: 120dB A-Weighted (typical), 10Hz - 20kHz
Input To Output Or Input: <-100dB unweighted, 20Hz - 20kHz; 23dBu inputOutput To Input Or Output: <-100dB unweighted, 20Hz - 20kHz; -1dBFS input
DIGITAL INPUT SAMPLE RATE CONVERTERS
Sample Rate Range: 32kHz to 216kHzGain Error: -0.3dBDynamic Range Inputs: >138dBTHD N Inputs: <-130dB (0.00003)Latency: 11 to 45 samples (network and sample rate dependent)
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bitClock Sources: Internal or from Dante Network MasterExternal Word Clock Range: Nominal sample rate ±7.5
REAR PANEL CONNECTIVITY
Line Inputs: 2 x DB-25 connectorsLine Outputs: 2 x DB-25 connectorsChannel Count: 2 x 2 AES/EBU channelsInput (Optional DARS): 1 x Female XLR (Switchable with analogue input channels 15 and 16 at quad rates)Output: 1 x Male XLR (Duplicate of analogue output channels 15 and 16 at quad rates)Word Clock Input: 1 x BNC 75O port (switchable termination)Word Clock Output: 1 x BNC 75O portPSU: 2 x IEC Inputs with retaining clips.Network: 2 x etherCON NE8FBH, also compatible with standard RJ45 connectors
FRONT PANEL INDICATORS

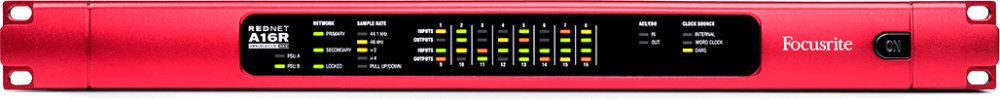

Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are presentSecondary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are presentPrimary Network: Green LED. Indicates that a network connection is present on primary port when in redundant modeSecondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant modeNetwork Locked: Green LED. When unit is network slave, shows valid network lockSample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4Pull Up/Down: Orange LED. Indicates that the unit is set to operate on a Dante pull up/down domainAES/EBU Signal Indicators: 2 I/O signal indicator LEDsClock Source: Orange LED for each
Redundant: Allows unit to connect to two independent networksSwitched: Connects both ports to integrated network switch allowing daisy-chaining
GTIN (UPC/EAN) : 815301001188
Manufacturer Part Number : REDNET-A-16RMKII
