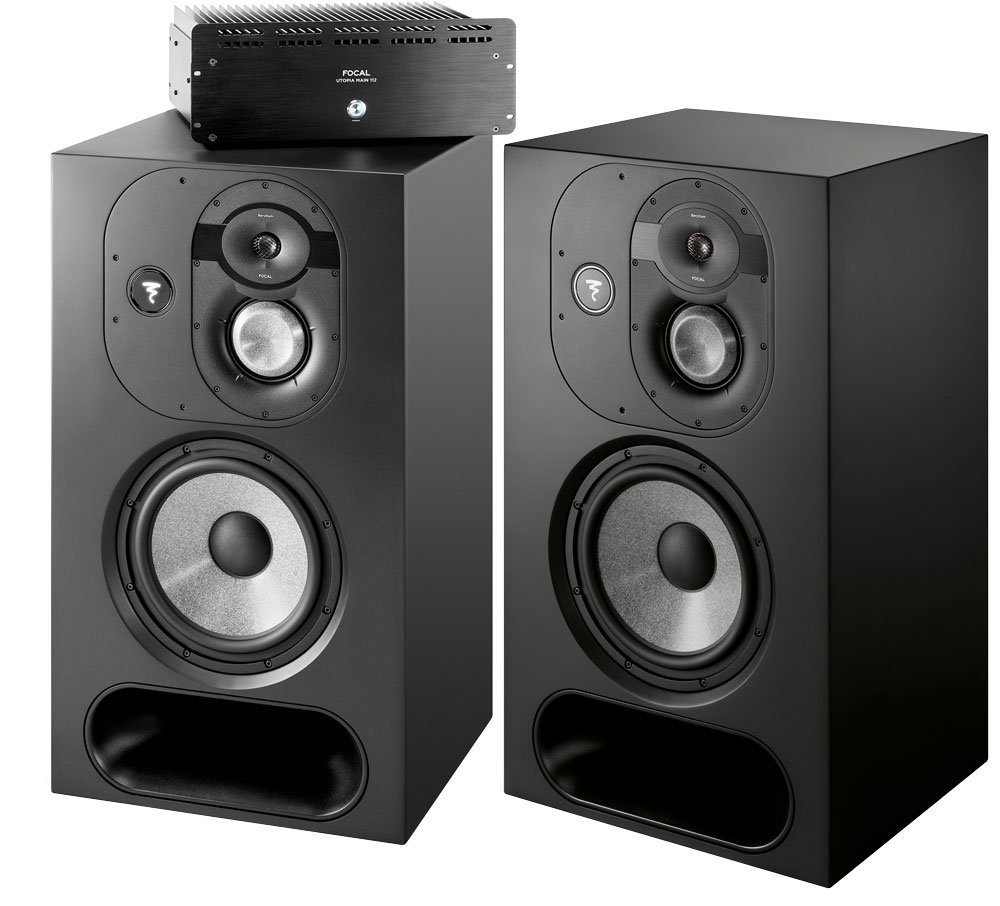

Focal UTOPIA MAIN 112 (Pair)
MPN #FOBSBEUM1124B003
High-efficiency three-way monitor with an 'M'-shaped Beryllium tweeter for precise highs, a 'W' cone midrange for accuracy and a 13-inch woofer for deep low-end performance
Focal has stepped into the realm of main monitoring, with the brand-new Utopia Main range. This range combines over 40 years of Focal's research in driver design and 20 years of innovation in studio monitor development, within its Pro Audio Division. The Utopia Main 112 is the 3-way model, featuring a single bass driver and a single midrange driver configuration, of this incredible range.
Features
All-new 'M'-shaped 'W' membrane midrange driver: extreme rigidity due to its shape and material, with a powerful magnet, to ensure a precise midrange with no resonance and very-low distortion.? 1.5" 'M'-shaped Beryllium tweeter: including the Tuned Mass Damper and Infinite Acoustic Loading technologies, to improve stiffness and rigidity, for excellent transient response with minimum distortion " causing less listening fatigue.
? Current Mode Amplification: the most natural way to amplify a loudspeaker, achieving
the lowest THD levels ever measured. Controlling the current instead of voltage is directly controlling the force on the driver and, therefore, it's response and getting rid of any additional unwanted artifacts.
? Available port plug accessory: for either precision ("sealed") or more energetic bass ("ported").
? On-site fine-tuning using the amplifier's feature board: 2 PEQs, volume trims for each driver,
low-shelf, high-shelf, soffit compensation filter, port compensation filter ("sealed" or "ported"),
front LED deactivation, standby mode deactivation, etc.
? Massive cabinet using 30mm-thick MDF panels, reinforced with a bracing network cleverly
designed to remove any warping including quarter-wavelength resonance reduction systems: maintaining precision even at the highest SPL.
Specifications
Performance
? Frequency response (@ -3dB) 28Hz"40kHz
? Maximum SPL (CEA2034 standard 50"10kHz free-field @ 1m) 120dB
Transducers
? Woofer 13" (33cm) 'W' cone
? Midrange 5" (12.7cm) 'M'-shaped 'W' cone
? Tweeter 1.5" (38mm) 'M'-shaped Beryllium
Loudspeaker
? Construction 1 1/8" (30mm) MDF
? Finish Black
? Dimensions (H x W x D) 37" x 20 7/8" x 18 1/8" (94 x 53 x 46cm)
? Weight 171lb (77.6kg)
Temperature Range
? Operating: 5C " 30C
? Storage: 0C " 50C
Electronic Section
? Input Balanced XLR 10k?
? Bass amplifier stage 500W RMS class-D
? Midrange amplifier stage 180W RMS class-H Current mode
? Treble amplifier stage 90W RMS class-H Current mode
? Nominal power supply (Alternating voltage) ~100 - 120V, 50/60Hz / ~220 - 240V, 50/60Hz
? Nominal power consumption 500W
Fuses
? ~100 - 120V
? ~220 - 240V
Crossover Frequencies
? 330Hz / 2.7kHz
Rack Height
? 4U
Power Management
? Automatic standby mode: After approximately 14 minutes with no signal
? Power consumption in standby mode <0.5W
? Power consumption when the amplifier is off <0.1W
