Compact three-way monitor with exceptional clarity, dynamics, and focus. Features beryllium tweeter, composite membranes, laminar port, and versatile Focus modes

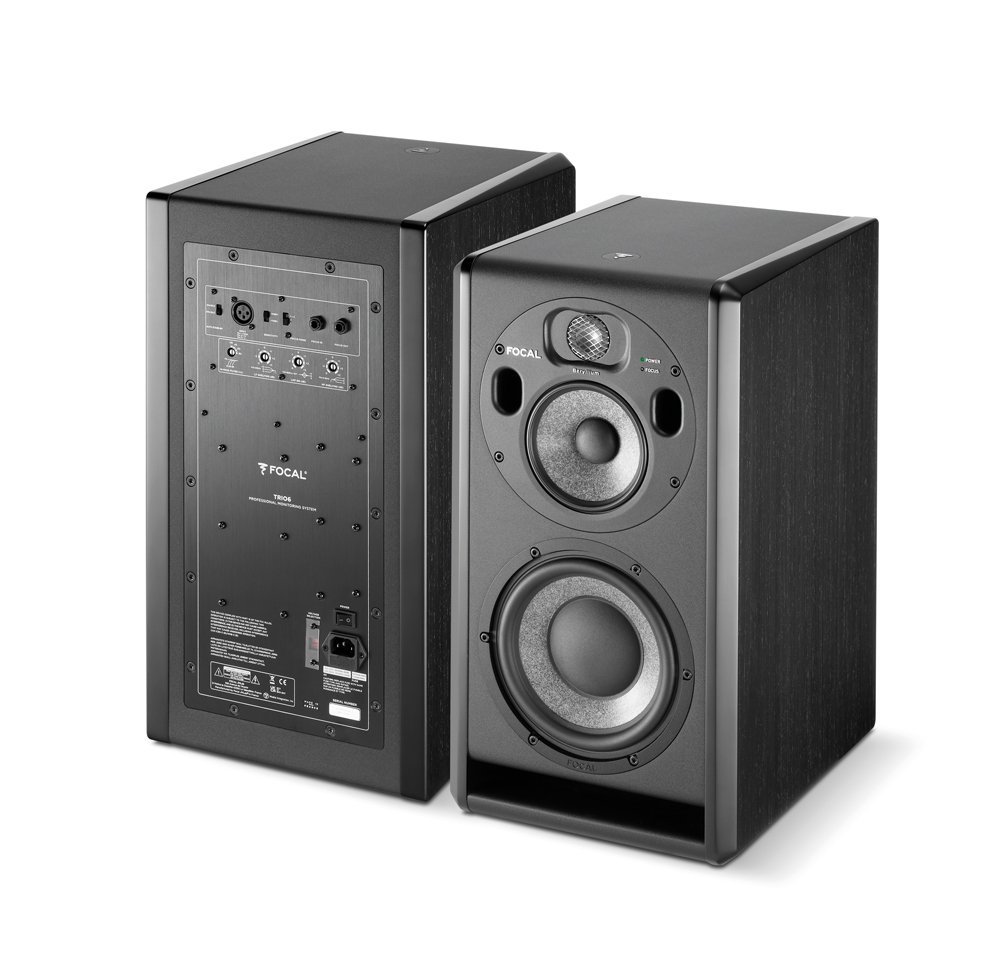

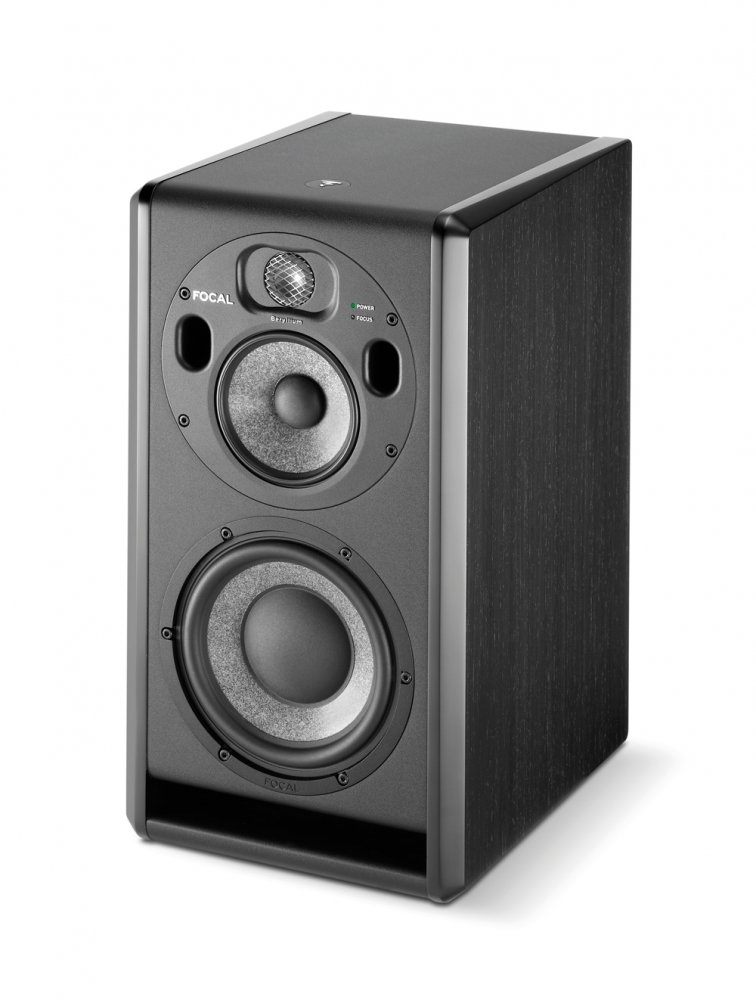

The Focal Trio6 is a versatile 3-way active studio monitor engineered to deliver exceptional audio fidelity for professional recording environments. It features an 8-inch 'W' composite sandwich cone woofer, a 5-inch midrange driver with TMD (Tuned Mass Damper) suspension, and a 1.5-inch Beryllium inverted dome tweeter. This configuration provides a wide frequency response from 35Hz to 40kHz, ensuring precise and transparent sound reproduction across the spectrum.
A standout feature of the Trio6 is its dual Focus mode, allowing the monitor to switch between three distinct configurations: a standard 3-way mode, a 2-way mode utilizing only the midrange driver and tweeter, and a 1-way full-range mode employing just the midrange driver. This flexibility enables audio professionals to assess how mixes will translate across different playback systems, enhancing the versatility of the monitoring process.

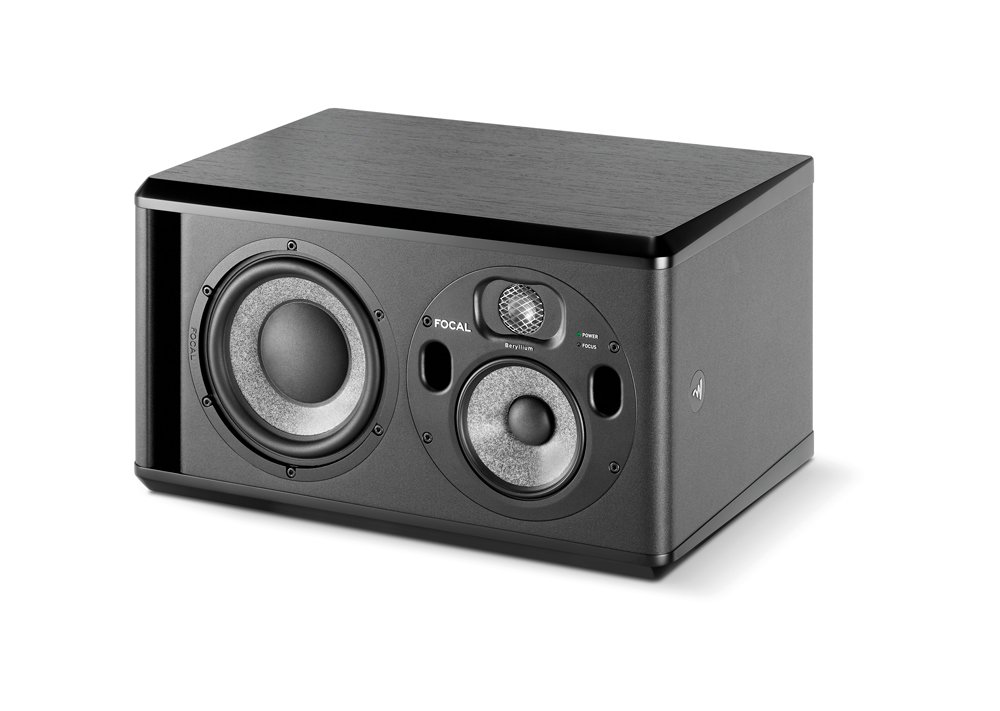

The monitor's design includes a rotatable baffle, facilitating both horizontal and vertical setups to accommodate various studio layouts. Additionally, the Trio6 offers adjustable shelving filters for low and high frequencies, as well as a 160Hz LMF filter to address console reflections, allowing users to tailor the monitor's response to their specific acoustic environment.
Caractéristiques
Three-Way Monitoring: Offers exceptional clarity, definition, dynamics, and soundstage precision.
Double Focus Mode: Functions as three monitors in one, with options for three-way, two-way, or single-way full-range monitoring.
Beryllium Inverted Dome Tweeter: Ensures excellent linearity, dynamics, and minimal directivity.
Acoustic Optimization: Features a specially designed tweeter baffle for superior dispersion control.
Composite "W" Sandwich Membrane: Provides neutral sound with no distortion.
Wide Laminar Vent: Eliminates port noise and distortion for cleaner audio.
Customizable Settings: Includes high-pass filters, low-frequency shelving, high-frequency shelving, and mid-frequency adjustments.
Auto Standby Mode: Comes with an optional automatic standby feature.
Spécifications
General Specifications
Type: 3-way monitoring speaker
Construction: 22 mm MDF
Finish: Black body with natural black veneer sides
Dimensions (H x W x D): 53.7 x 29.2 x 36.9 cm
Weight: 25 kg
Frequency Response
Full range mode (@ -3 dB): 35 Hz - 40 kHz
Focus Mode 1: 100 Hz - 15 kHz
Focus Mode 2: 80 Hz - 40 kHz
Amplification
Bass: 100 W RMS, Class G
Midrange: 100 W RMS, Class G
Treble: 50 W RMS, Class AB
Drivers
Tweeter: 1.5" Beryllium inverted dome
Midrange Woofer: 5" composite "W" diaphragm
Subwoofer: 8" composite "W" diaphragm
SPL (Sound Pressure Level)
Maximum SPL: 115 dB (CEA2034 average 50-10 kHz free field @ 1 m)
Focus Mode 1: 112 dB (CEA2034 average 100-10 kHz free field @ 1 m)
Focus Mode 2: 112 dB (CEA2034 average 100-10 kHz free field @ 1 m)

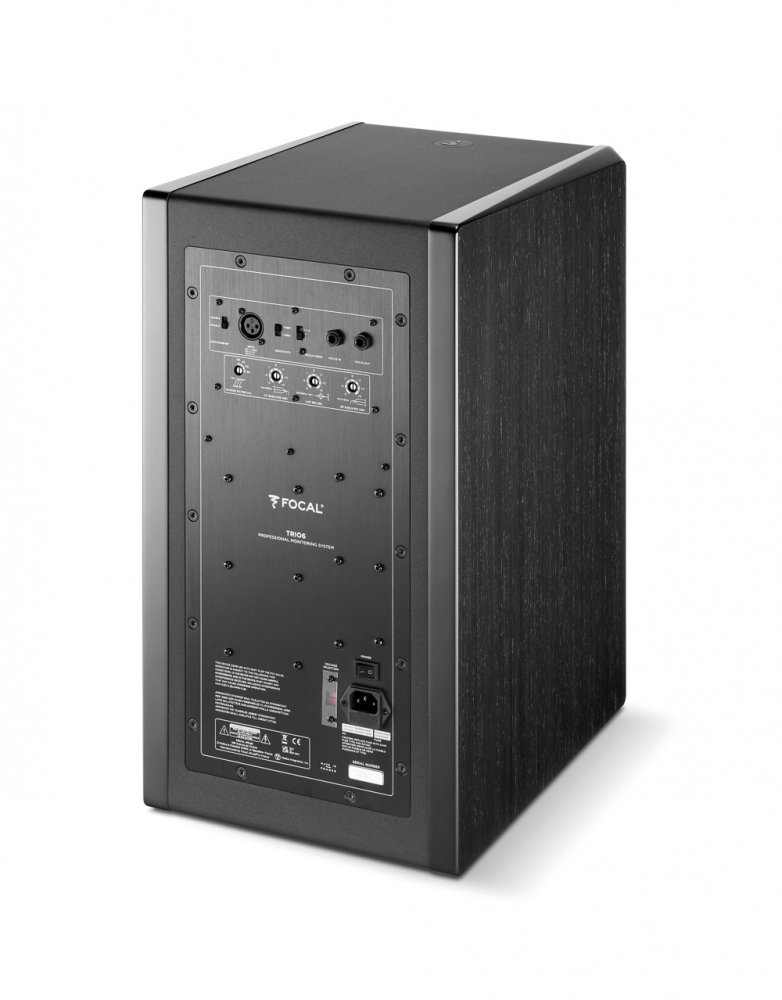

Connectivity
Input: Balanced XLR 10 k?
Controls
Sensitivity adjustment
Auto standby toggle
Focus mode selector
High-pass filter (HPF)
Low-frequency shelving (LF Shelv)
Midrange equalizer (LMF EQ @ 160 Hz)
High-frequency shelving (HF Shelv)
Power and Electrical
Power supply: 100-120 V~ 50/60 Hz or 220-240 V~ 50/60 Hz
Fuses: ~100-120 V: T3.15AH/250 V / ~220-240 V: T1.6AH/250 V
Operating Conditions
Operating temperature: 5C to 35C
Storage temperature: 0C to 50C
Key Features
Dual Focus Mode: 3-way mode: Subwoofer, midrange woofer, and tweeter / 2-way mode: Midrange woofer and tweeter
1-way full-range mode: Midrange woofer only
Large laminar vent for minimal port noise and distortion
Acoustically optimized tweeter baffle for precise dispersion
