Focal Trio6 ST6
UPC/EAN #3544053801674
MPN #FOASBETRI62R003 3
$3869.00 (Demo)
Save $630.00, New $4499.00

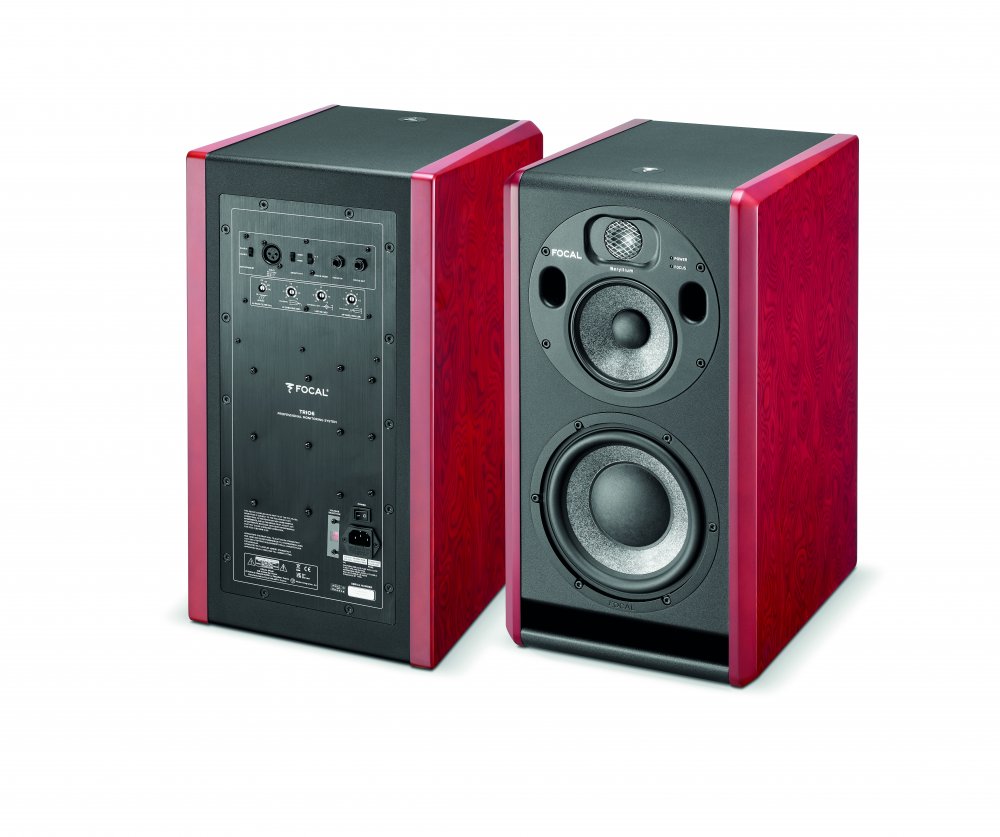

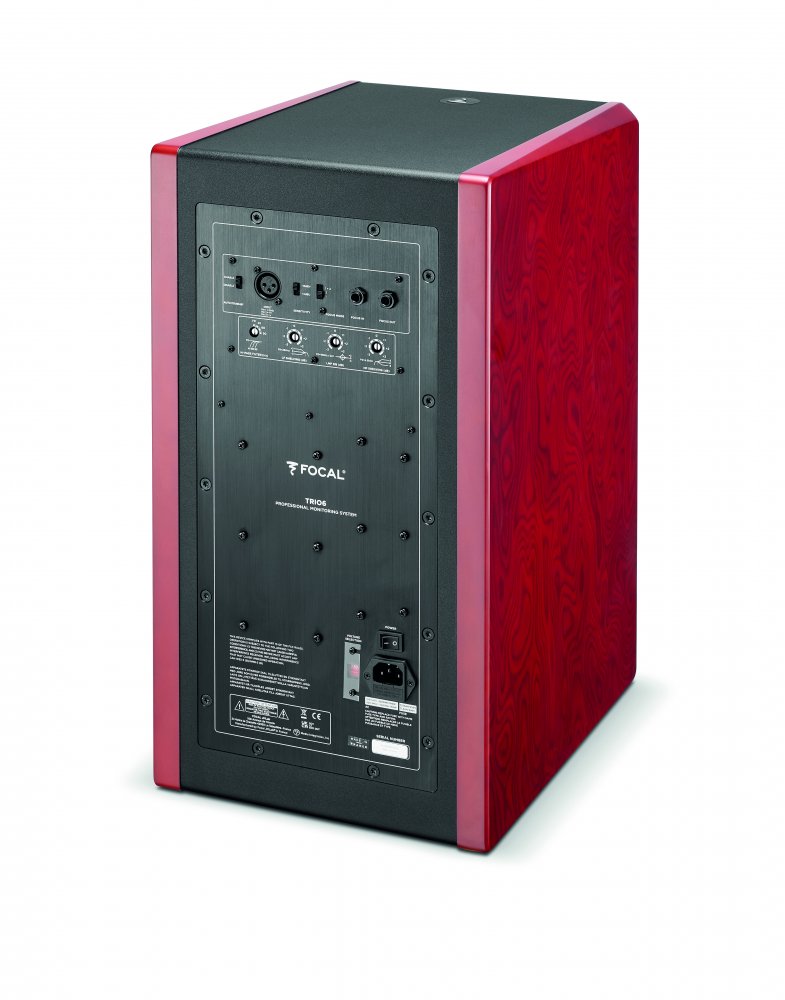

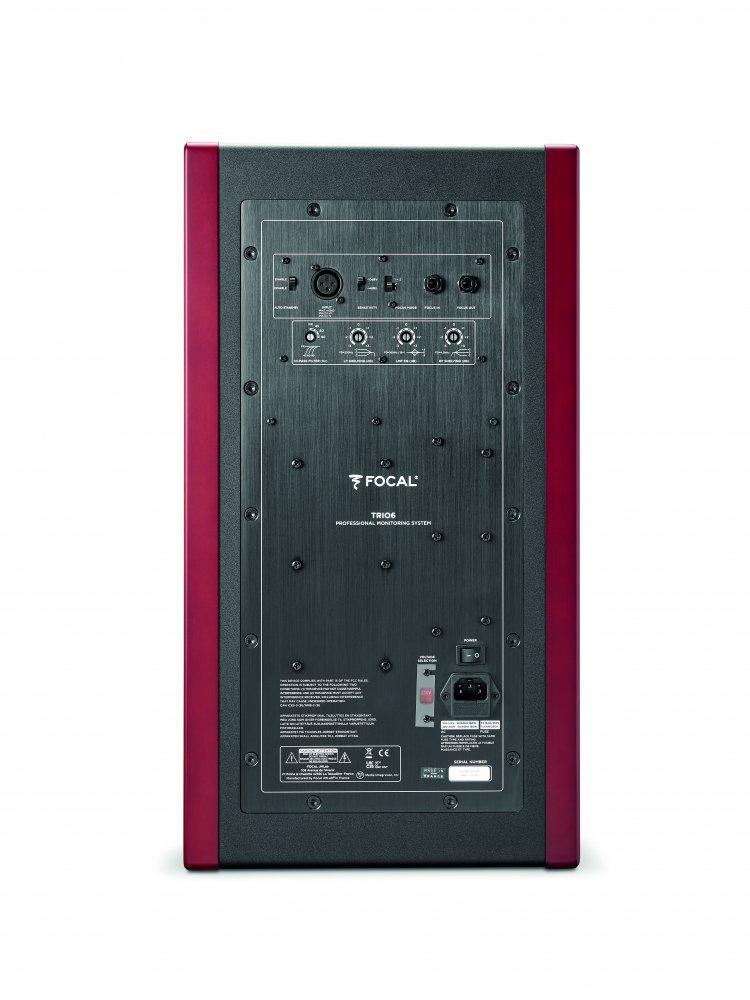

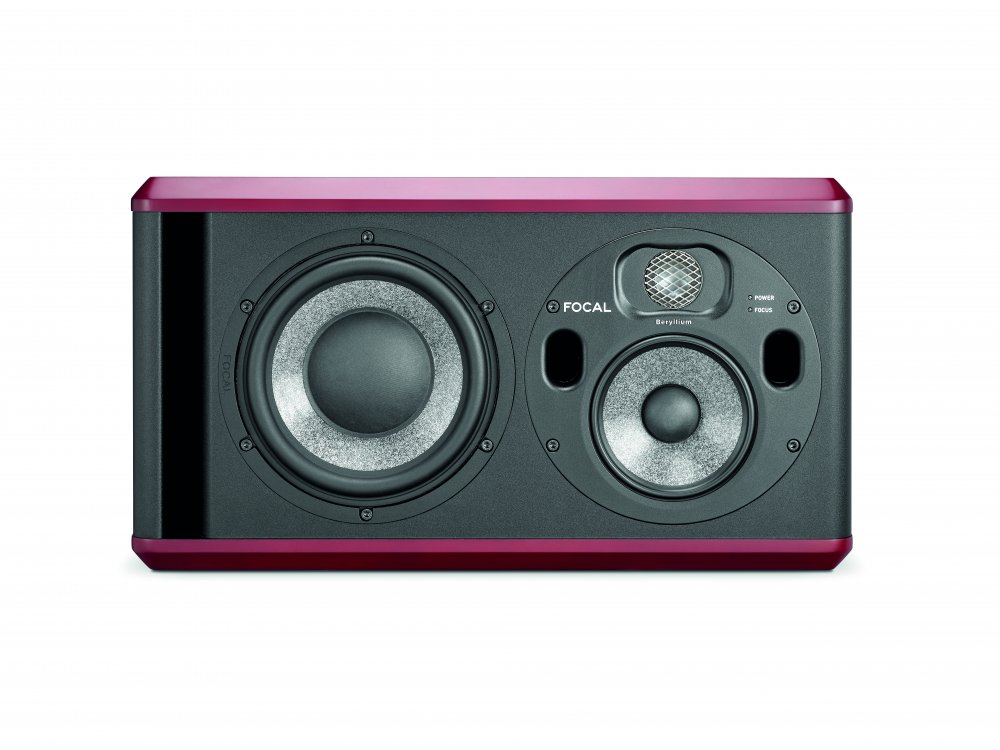

Three-way studio monitor with dual Focus mode, Beryllium inverted dome tweeter, and large laminar port
Trio6 is a three-way studio monitor offering transparency, a level of definition, dynamics and soundstage precision that is unrivalled in this price range. Thanks to its dual Focus mode - either one-way or two-way - Trio6 represents three monitors in one by combining the iconic SM9 Focus mode with the new full-range ST6 Focus mode.
A DETAILED, TRANSPARENT SOUND
Made in France at the Focal workshops, Trio6 is equipped with an 8" subwoofer with a ?W' cone - a patented innovation. Additional features are the 5" midrange woofer incorporating TMD (Tuned Mass Damper) technology, reducing distortion in the 1kHz to 3kHz frequency range by 50%, and a new beryllium tweeter boasting IAL (Infinite Acoustic Loading) to control resonance. Its large laminar port significantly limits port noise and its strengthened cabinet provides even better rigidity and damping, fewer vibrations and therefore less distortion. Trio6 offers remarkable sound neutrality across the full sound spectrum, as well as a precise midrange, impactful bass and excellent dynamics resulting in very low distortion level.
DUAL FOCUS MODE
Trio6 has a dual Focus mode - either one-way or two-way - which creates three monitors in one by combining the iconic Focus mode from the old SM9 star monitor with the new full-range Focus mode from the ST6 line. This new configuration of speaker drivers is available by simply pressing a pedal - as though you had a second pair of studio monitors with reduced frequency response enabling you to check how the mix would adapt to smaller systems. Sound engineers can then preserve the sweet spot when mixing, save space on the desk or console, and simplify cabling and monitor changes.
SPECIFIC FEATURES
Like Solo6 and Twin6, Trio6 includes a variable highpass crossover, a 160Hz parametric crossover to reduce reflections from the console, and an automatic stand-by mode that can be disengaged using a switch the user can access for better loudspeaker control. With its impressively fluid speaker drivers, its fully analog filtering and its carefully considered design to enhance performance, Trio6 is a versatile work tool that will win the complete confidence of sound engineers, sound designers, composers, beatmakers and producers alike.
Features
Beryllium inverted dome tweeter: very low directionality, excellent linearity and dynamicsOptimised baffle tweeter: excellent dispersion control'W' composite sandwich cone: sound neutrality, no distortionDual Focus Mode: three monitors in one: three-way monitor, two-way monitor (midrange woofer and tweeter alone) and full-range one-way monitor (midrange woofer alone)Large laminar port: no port noises or distortionAuto stand-by mode disengageableSettings: activatable/deactivatable, LF shelving, HF shelving, LMF @ 160Hz
Specifications
Type
3-way monitor
Frequency response (@ -3dB) 35Hz - 40kHz
Focus mode 1 100Hz - 15kHz
Focus mode 2 80Hz - 40kHz
Maximum SPL (Average CEA2034 50-10kHz free field @ 1m)
115dB
Focus mode 1 (Average CEA2034 100-10kHz free field @ 1m)
112dB
Focus mode 2 (Average CEA2034 100-10kHz free field @ 1m)
112dB
Input
Balanced XLR 10k?
Bass amplifier stage
100W RMS, G-class
Midrange amplifier stage
100W RMS, G-class
Treble amplifier stage
50W RMS, AB-class
Nominal power supply
100 - 120V~ 50/60Hz
User controls
Sensitivity, Auto standby, Focus mode, HPF, LF Shelv, LMF EQ, HF Shelv
Fuses
~100-120V, 50/60Hz
Bass
8" 'W' cone
Midrange
5" 'W' cone
Treble
1.5" Beryllium
Shielding
No
Construction
7/8" (22mm) MDF
Finish
Dark red natural veneering side panels, black body
Dimensions (H x L x D)
21 1/8"x11 1/2"x14 1/2" (53.7 x 29.2 x 36.9cm)
Weight
55.12lbs (25kg)
Temperature range
During use: 5-35C
During storage: 0-50C
