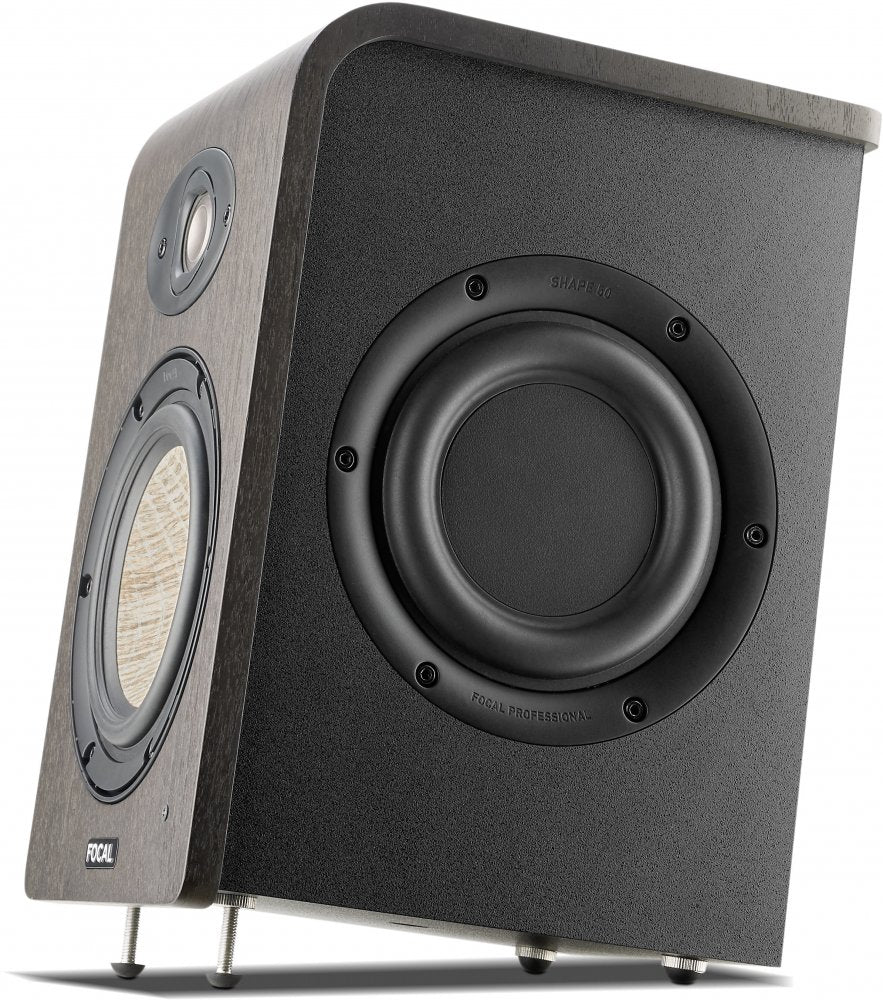

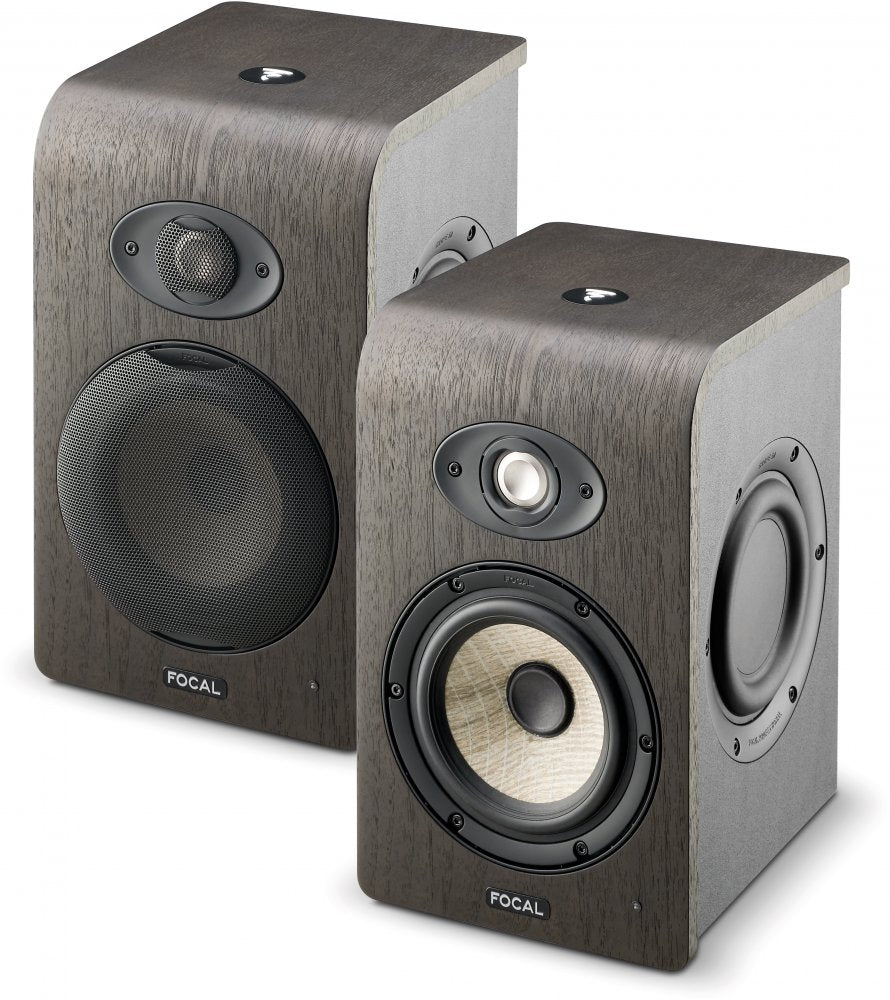

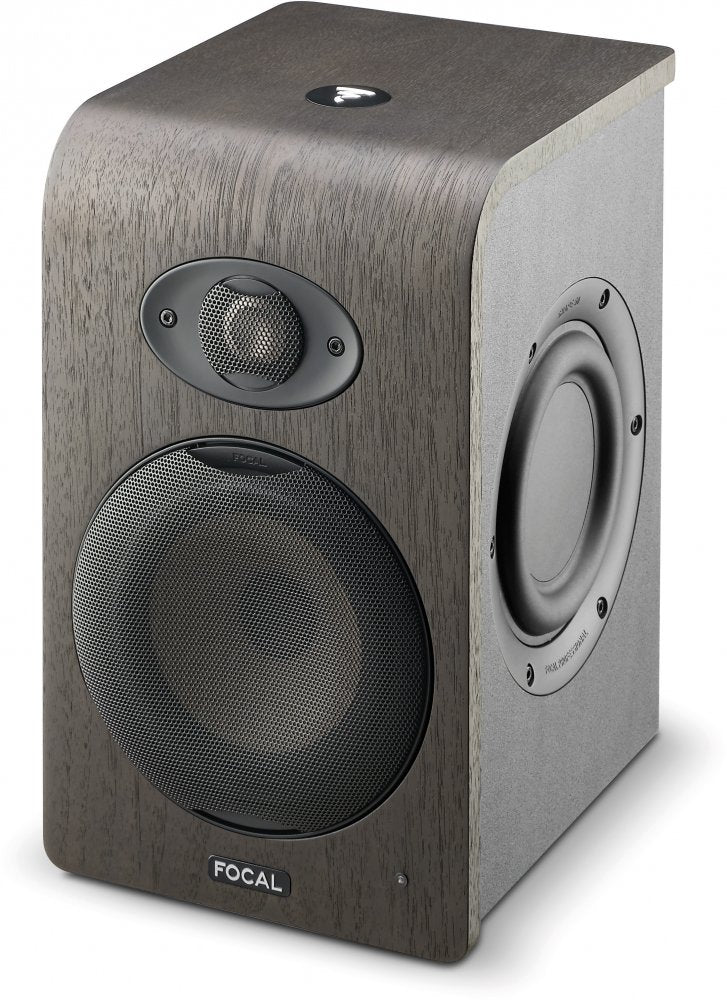

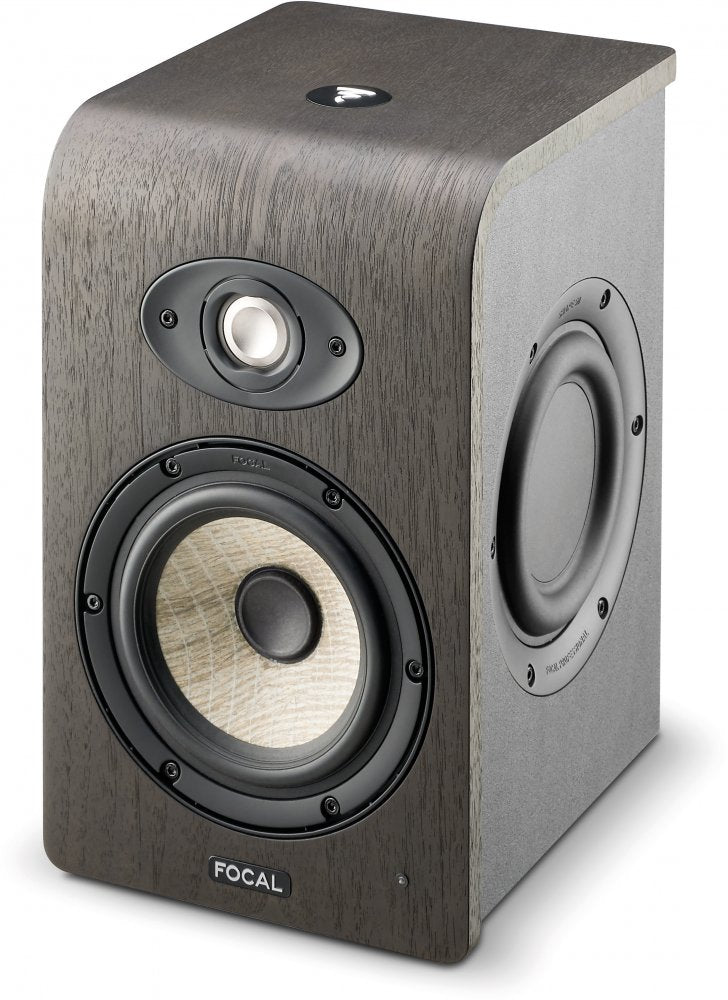

Focal Shape 50
UPC/EAN #3544059801524
MPN #FOASPFSH500N503
2-way studio monitor with a 5" flax membrane woofer and 1" aluminum-magnesium tweeter, 50 Hz - 35 kHz range, 106 dB SPL, compact design with passive radiator
Thanks to this design and to the numerous settings, this monitor is ideal for rooms measuring less than 130ft2 (12m2).
The three monitors are all made in France and integrate five innovations to maximise acoustic transparency. Designed to meet the needs of nearfield monitoring, Shape monitors combine an ingenuous design and numerous settings optimised for the acoustics of small listening rooms.
These innovations provide remarkable acoustic transparency. These new work tools distinguish themselves through the wide and extremely precise stereo image. The bass register is articulated and controlled. The lower mid-range and mid-range benefit from extreme neutrality, and without any masking effects, making equalisation of these essential registers much easier. Finally, the new tweeter is what's at the source of the very high definition. It efficiently reveals any hissing, and it's also very precise in the very high end.
Features
Low directivity tweeter for a flexible listening positionDesigned without a port allowing it to be placed near a wallNumerous settings for optimal integrationAccurate control, even in the very high endFlax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper mid-range registersThreads for ceilling and wall mounts (fastening accessories not supplied)
Specifications
System
Frequency response (+/-3dB): 50Hz - 35kHz
Maximum SPL (musical signal): 106dB SPL (peak @ 1m)

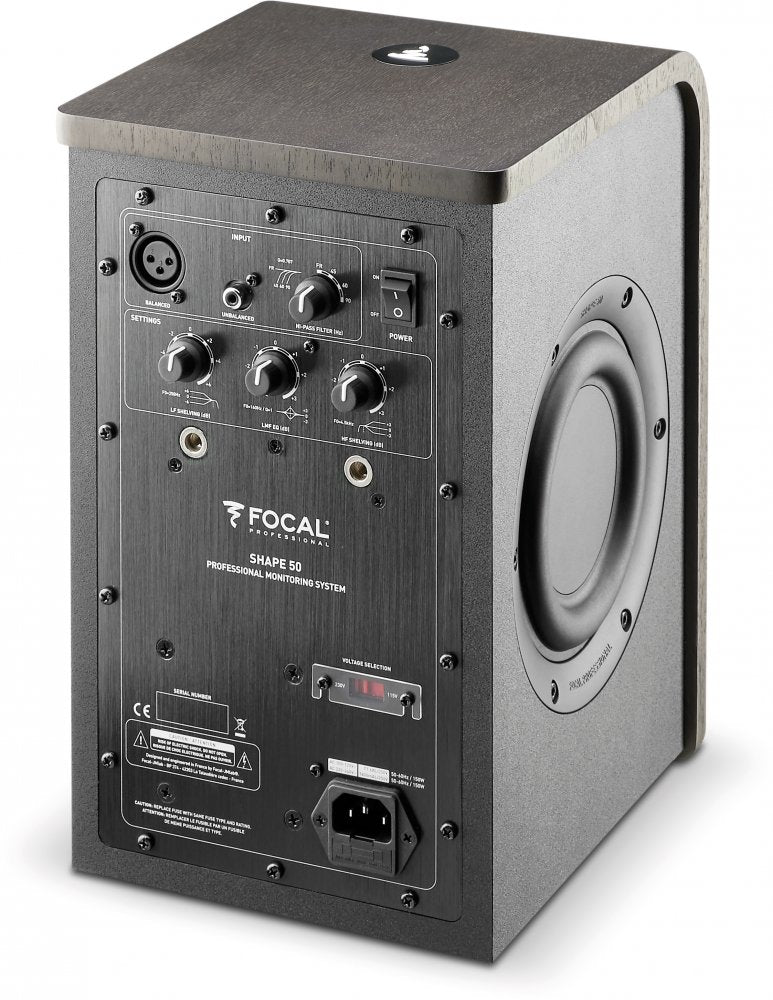

Electronic section
Inputs/Impedance
Type
XLR: balanced 10kOhms
Connectors
RCA: unbalanced 10kOhms with sensitivity compensation
Midrange and low frequency amplifier: 60W, class AB
High frequency amplifier: 25W, class AB
Automatic standby
Standby on
After approximately 30 minutes with no signal
Standby off
Signal detection > 3 mV
Electrical Supply
Voltages
220-240V (T800mAL / 250V fuse)100-120V (T1.6AL / 250V fuse)
Connection
IEC plug and detachable power cord
Settings
High pass filter: Adjustable Full range
45/60/90Hz
Bass (0 - 250Hz): Adjustable, +/-6dB
Midrange/bass (160Hz, Q=1): Adjustable, +/-3dB
High (4.5 - 35kHz): Adjustable, +/-3dB
Power On/Power Off: On/off switch on rear panel
Standby consumption: < 0.5W
Displays and controls: LED for power on/off and standby
Transducers
Woofer: 5" (13cm) Flax Cone
Tweeter: 1" (25mm) 'M' profile Aluminum-Magnesium
Cabinet
Construction: 0.6" (15mm) MDF
Finish: Vinyl, real walnut and black painting
Dimensions with four rubber feet (HxWxD): 12.3 x 7.5 x 9.5" (312 x 191 x 242mm)
Weight: 20.7lb (6.5kg)
Write a review about the Focal Shape 50
![]()
4.0
Jean-Guy Montpetit (studio CréaSon)
Montreal,Qc
April 28, 2019
Précision et claireté
Ces petits haut-parleurs ont beaucoup d'équilibre et de précision pour le mixage. On peut mixer longtemps sans se fatiguer les oreilles et ils offrent une excellente image stéréophonique. J'aurais aimé qu'ils aient juste un peu plus de puissance.
