Flock Audio PATCH LV
Digital patchbay system with analog audio routing, touchscreen control, and customizable presets for seamless studio connectivity and signal management.

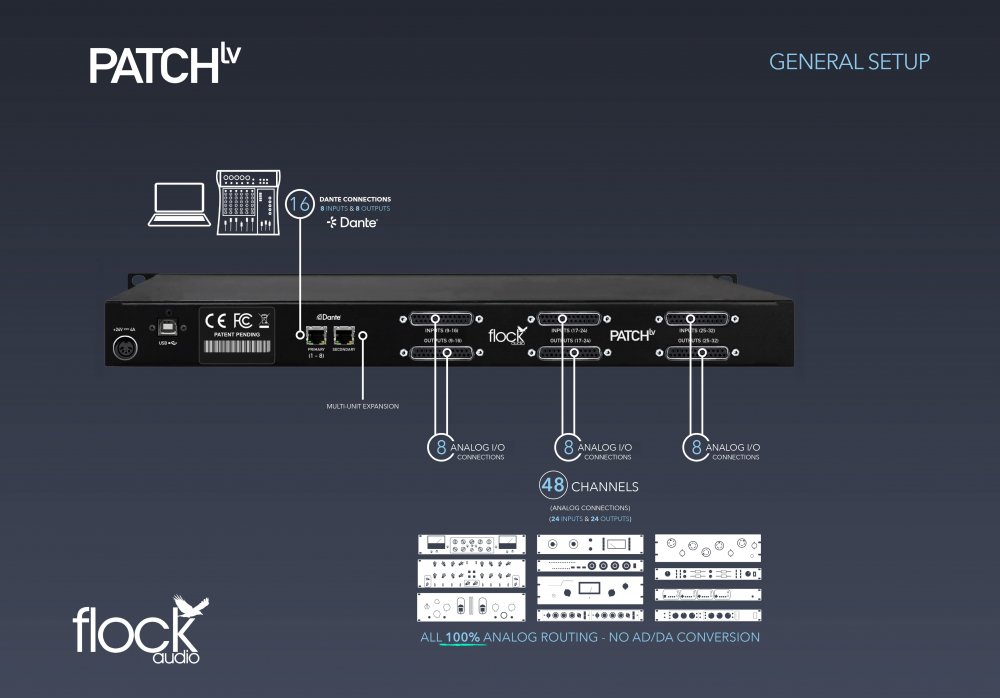

The Flock Audio PATCH LV is an innovative, digitally controlled analog patch system tailored for live sound applications. Designed to meet the demands of front-of-house (FOH) engineers, this cutting-edge system combines the flexibility of digital routing with the pristine quality of analog signal paths. It features 16 channels of Dante-enabled digital connections (8 inputs and 8 outputs) at 192 kHz / 32-bit resolution, alongside 48 analog connections (24 inputs and 24 outputs) for seamless integration into live sound environments. The PATCH LV uses Flock Audio's award-winning matrix technology, ensuring 100% transparent signal paths with no AD/DA conversion.
The PATCH LV also incorporates Flock Audio's intuitive software for OSX and Windows, allowing users to create, store, and recall complex routings in seconds. This makes it easy to manage intricate setups without impedance issues or signal loss. With robust expandability via Dante, the PATCH LV is suitable for larger I/O configurations. Built into a compact 1U rackmount chassis with premium connectivity options like DB-25 connectors, it is both powerful and space-efficient. Whether for concerts or live broadcast events, the PATCH LV brings unparalleled flexibility and sound quality to the world of live audio engineering.
Features
Digital Patch Bay: Manage and route audio connections digitally without manual patch cables.Streamlined Software Control: Control all patching and routing directly from an easy-to-use desktop app.Instant Recall: Save and instantly load custom routing configurations for quick session changes.Compact and Space-Saving: Designed for smaller setups while maintaining powerful patching capabilities.Noise-Free Switching: Silent and seamless switching without affecting audio quality.Flexible Integration: Works effortlessly with outboard gear and various studio configurations.Effortless Setup: Simple installation process for quick and easy use.Durable Build: High-quality design ensures long-lasting reliability in any studio environment.
Specifications
General Specifications

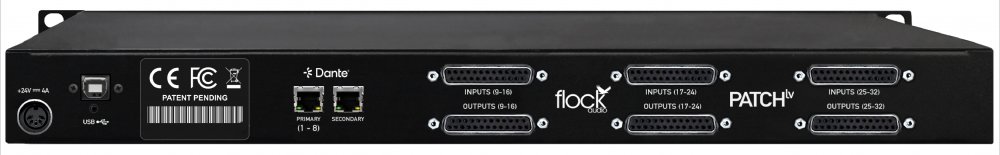

64-point connections in total (8 Inputs/8 Outputs - DANTE Enabled, 192 kHz/32 Bit; 24 Inputs/24 Outputs - Fully Analog PATCH Series Routing)DB-25/D-SUB Tascam Standard Pinout Format Connectors (24 Ins x 24 Outs)PATCH APP Routing Software compatible with macOS and WindowsCreate, store, and recall routings in secondsComplex multing combinations with no impedance issues100% transparent analog signal path (24 Ins x 24 Outs)No AD/DA conversion required
Technology
Patented Flock Audio Matrix Technology with 48 channels (24 Ins x 24 Outs)Multiple unit expansion via DANTE for larger I/O systems
Power and Connectivity
External 5-pin 24VDC locking power supply with IEC cable includedThreaded locking USB connector with 10 ft USB 2.0 (USB-A to USB-B) cable included
Dimensions and Weight
Unit dimensions: 1U rack size, 1.75" (H) x 19" (L) x 8" (D)Weight: 15 lbs
