Eventide PowerMini EXP
UPC/EAN #840694001958
MPN #1228-000
Expansion power supply for PowerMax, four 600mA outputs, two adjustable to 9"18V, includes 24V DC Link cable, seven flex cables, compact and lightweight design

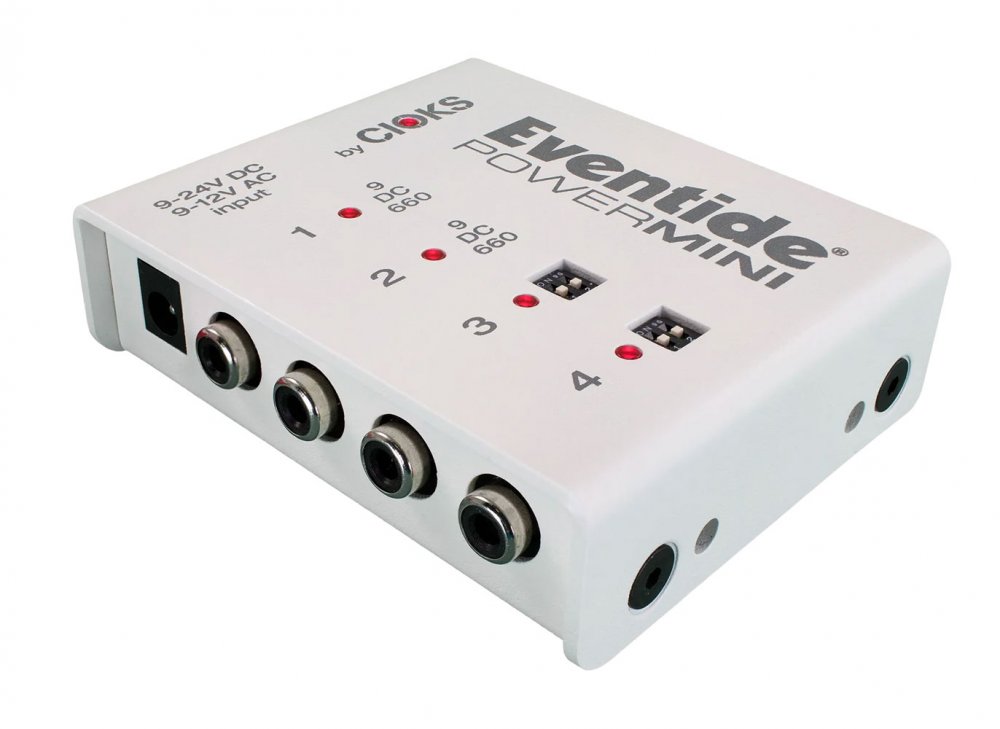

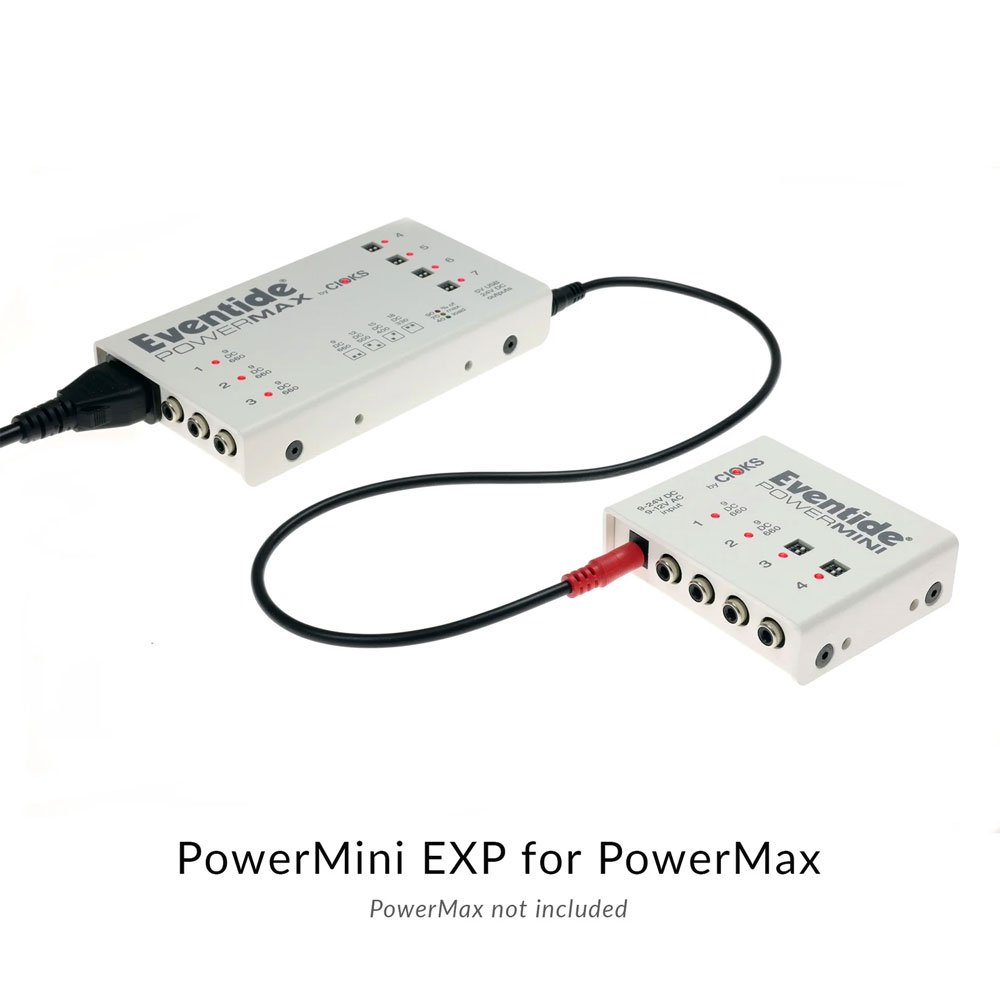

The Eventide PowerMini EXP is a compact, high-performance expansion power supply designed to seamlessly extend the capabilities of an existing Eventide PowerMax system. By connecting to the PowerMax via its 24V courtesy outlet, the PowerMini EXP delivers four additional isolated outputs, each capable of supplying up to 660mA of clean, reliable power-ideal for growing pedalboards that need more flexibility without taking up extra AC outlets.
Two of the outputs offer switchable voltages (9V, 12V, 15V, or 18V), allowing you to power a broader range of pedals, from standard stompboxes to high-voltage digital effects. The PowerMini EXP includes seven Flex cables, a 24V DC Link cable, and mounting hardware, making it easy to integrate into your rig right out of the box. Compact, quiet, and expandable, the PowerMini EXP is the perfect solution for players who need more power without compromising space or performance.
Features
Expansion Power Supply: Designed to extend your Eventide PowerMax system without adding another wall adapter.Seamless Integration: Connects directly to PowerMax via the included 24V DC link cable.Four Isolated Outputs: Clean, noise-free power delivery for up to four pedals.High Output Capacity: Each output provides up to 660 milliamps for demanding pedals.Adjustable Outputs: Two outputs can be switched between 9, 12, 15, or 18 volts.Standard Outputs: Two fixed 9V outputs for everyday pedals.24V Link Cable: Connects PowerMini EXP to PowerMax for easy expansion.7 Flex Cables: Mix of center-negative, center-positive, and daisy-chain cables to power most pedals.Mounting Hardware: Includes screws and hex key for pedalboard installation.Fully Isolated Outputs: Prevents noise, hum, and ground loop issues.Lightweight Build: Compact size designed for tight pedalboards and touring rigs.
Specifications
General Specifications:
Compact isolated power supply expansion moduleDesigned to expand Eventide PowerMax via 24V DC Link connectionFour individually isolated DC outputsOutputs 1 and 2 fixed at 9V DCOutputs 3 and 4 switchable to 9V, 12V, 15V, or 18V DCAll outputs rated at 660 mAOptimized for low noise and high fidelity pedal performanceIdeal for extending pedalboard power capacity without additional wall powerWarranty: 5 years worldwide coverage
Power Input:
Powered via 24V DC Link cable from PowerMaxDoes not include standalone AC power supplyNot intended for standalone use
Power Outputs:
Outputs 1"2: 9V DC at 660 mAOutputs 3"4: 9V, 12V, 15V, or 18V DC at 660 mA
Physical Specifications:
Dimensions 2.9 in x 3.5 in x 1.0 inWeight 0.507 lbs / 220.9 grams
Included Accessories:
24V DC Link cable, 50 cm (EIAJ to red 5.5 x 2.1 mm center positive plug)Mounting hardware with 2 screws and hex keyProduct sheet with drill guideFlex and DC Link cable guide7 Flex cables: 2 x 1030 black 30 cm center negative type 1, 2 x 1050 black 50 cm center negative type 1, 2 x 4050 green 50 cm center positive type 4, 1 x 1533 black 3-way daisy chain 50-30-30 cm center negative type 1
Compatibility:
Requires PowerMax or other compatible 24V DC supply for operationNot compatible with standard wall adapters as a standalone unit
