Eventide H9000
UPC/EAN #840694001163
MPN #1172-000
Multi-Effects Processor, Four quad core ARM processors: 16 DSP engines, Analog audio I/O: 8 channels, USB audio: 16 channels, AES/EBU, ADAT, S/PDIF: Up to 8 channels
21st Century flagship processor with full front panel control capable of 32-channels of 24-bit/96kHz processing. Modular DSP and Modular I/O. Comes standard with 4 Quadcore processing cards, 8 channels of hi-quality analog, ADAT, S/PDIF and AES I/O. Emote remote control application for Mac, PC and iOS as well as plug-in control via AU, VST, or AAX. Over 2000 programs included.
Next Generation Harmonizer
Eventide's flagship multi-effects processor, the H9000, continues our unbroken tradition of delivering industry-leading signal processing power to the pro audio community. The culmination of nearly fifty years of R&D, the H9000 comes loaded with 1600 unique algorithms from recreations of beloved classics to Eventide's latest and greatest effects. The wealth of included effects will offer users many years of exploration and inspiration.
Catch the Wave
The H9000 is riding the crest of a wave that's about to sweep over the audio industry - multi-core general purpose ARM processors. Compared to conventional DSP chips, ARM processors deliver more processing per dollar and they significantly streamline new algorithm development. The migration to ARM represents an unprecedented investment for Eventide, an investment that far exceeds any other in our long history. Why did we take this step Because ARM chips are engendering new, previously unimaginable audio effects and audio applications.
The H9000's quad-core ARM processors reside on four upgradeable modules. In the future, as new, more powerful ARM chips become available, the H9000's DSP modules can be upgraded. The H9000 is 8 times more powerful than the H8000FW, and 16 times more powerful than Eventide's popular H9 stompbox. It can run 16 simultaneous heavy duty algorithms.
Colossal Audio I/O
Audio I/O includes: 8 channels of pristine analog audio, 16 channels over USB, 8 channels of AES/EBU, ADAT optical and S/PDIF. Plus optional network audio I/O via 3 expansion card slots with up to 32 channels of bidirectional audio each. (Dante and MADI available now, additional expansion cards are under development.)
With up to 96 channels of simultaneous signal processing and a generous complement of analog and digital audio I/O, the H9000 is the perfect platform for surround sound and for processing many tracks of audio simultaneously.
Legendary Sounds, New Paradigms
The H9000 comes loaded with 1600 unique algorithms from the H8000 and the H9 with over 500 presets covering reverb, delay, modulation, pitch shifting, distortion, and more. Multi-channel algorithms include 5.1 halls, chambers, plates, rooms, booths and various ambient spaces.
In addition, the H9000 introduces the concept of FX Chains for connecting any set of four effects with user-defined, flexible routing. FX Chains can be created to act as a channel strip, a guitar 'pedal board,' a modular synth with effects, etc. The H9000's FX Chain paradigm is like a custom channel strip on steroids allowing any four complex algorithms to be combined and routed to taste. FX Chains are invaluable for quickly exploring various combinations of effects to achieve new and inspiring sounds.

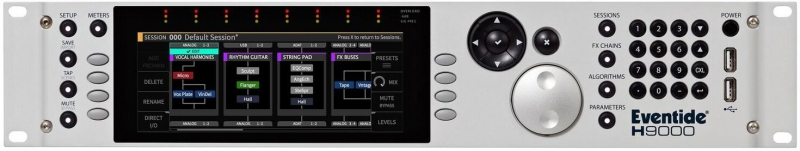

Intuitive, Powerful Interface
The most gratifying comments that we've received about the H9000's interface is that it feels right. Words can't properly convey what makes the H9000 feel good to use, but we can say a lot of attention to detail went into crafting its interface.
The H9000's big wheel is custom machined and has been carefully weighted to give it the right amount of inertia when spun. The H9000's custom designed buttons were chosen for their particular tactile response. And the H9000's large, crisp color display is driven by a dedicated ARM processor to ensure that the H9000 feels fluid and responsive when used.
The H9000's core functionality is encapsulated in the four mode keys SESSIONS, FX CHAINS, ALGORITHMS, and PARAMETERS. User presets of Sessions, FX Chains, and Algorithms can be saved and recalled.
Functions
Functions in the H9000 act much like Macros in Ableton Live; essentially, they are higher-level groupings of parameters that can be adjusted with a single knob. Up to 8 functions can be created in each FX chain.
Scenes
Scenes are a high-level function used to control sequenced program changes in the H9000. This mode can be useful when you are using the H9000 in a live environment such as a concert or theatrical production, and wish to "step through" different pre-configured states in a certain order you have set up in advance. For example, the main vocalist in a concert may need different reverb effects and parameter settings at different times during the show; scenes provide a quick, simple way to achieve this.
Meters
The H9000 has extensive metering capabilities to allow you to monitor every node in your signal's path. A physical eight channel LED meter bridge sits above the display. You can assign the LED meter bridge to provide instant visual status on the inputs or outputs that you choose.
In METER mode, the display lets you monitor the input and output of all of the physical I/O as well as all the FX Chains running on the H9000.
Control Freaks Rejoice!
Whether you use it live or in a studio, the H9000 gives you plenty of external control options.
MIDI In, Out and Thru. MIDI Thru allows you to daisy chain MIDI controlled devices.2 1/4" TRS Inputs - Connect up to four foot pedals or four auxilliary switches or a combination.4 USB Ports - Two on front, Two on back. Connect USB MIDI controllers, save and restore presets from a USB thumb drive, enable WiFi using the supplied WiFi dongle.
Direct I/O
Direct I/O allows you to use your H9000 as a network attached I/O box, making the H9000's pristine analog converters available for highest quality analog I/O. Even when you do not require any of the external processing the H9000 can provide, the 8 analog input and outputs, along with their different routing options, allows the H9000 to work as a network-attached patch bay.
Word Clock
The H9000 can serve as your digital system's master clock or slave to a master clock at sample rates from 44.1kHz to 96kHz.
Presets in Your Pocket
Plug a standard USB thumb drive into any of the USB ports to save or restore your presets. This feature makes your presets portable allowing you to load them into any H9000 in any rack anywhere.
Network Connectivity via LAN or WiFi
Connect your H9000 to your network with an ethernet cable or wirelessly using the supplied USB dongle for connecting to our remote control app, emote, for software updates, for adding new algorithms and more.
emote - H9000 Remote Control Software
The H9000's remote control application, emote, is available for users working 'in the box' or over an audio network. A version of emote, with limited functionality, is currently available as a stand-alone application for Mac and as a plug-in for ProTools, AU and VST.
Two Variants
The H9000 comes in two variants: the H9000 and the H9000R. The blank front panel H9000R requires the full-featured version of emote.
Features
Four quad core ARM processors: 16 DSP enginesAnalog audio I/O: 8 channelsUSB audio: 16 channelsAES/EBU, ADAT, S/PDIF: Up to 8 channelsNetwork audio options: 32 channels per expansion card. Three expansion slots for optional audio connectivity. Dante and MADI availableHardware Meters: 8 assignable LED meters - front panel version onlyemote: Remote control software app for Mac/Windows and plug-in for DAWsFX Chains: Innovative approach for setting up and managing complex effectsDirect I/O: World-class digital audio interfaceComprehensive Live Controls: MIDI, Expression Pedals, Auxiliary Switches and USB controllersPreset portability: Store and recall presets using USB thumb drivesNetwork control & software updates: LAN and WiFi connectivity
Specifications
Analog Audio I/O

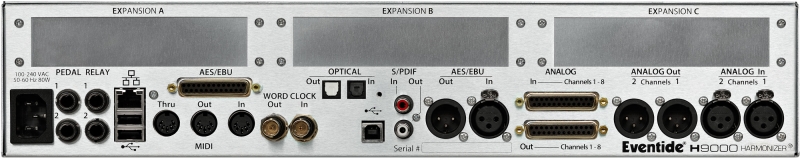

Physical Connections
Stereo I/O via XLR8 Channel I/O via DB25 (Tascam standard)
Audio Specs
SNR (A Weighted)
44.1 kHz: >120dB48 kHz: >114dB96 kHz: >114dB
THD
44.1 kHz: < 0.002%48 kHz: < 0.002%96 kHz: < 0.002%
*The H9000's XLR analog audio output jacks are male. Pin #1 is ground. Pin #2 is +phase (hot) and pin #3 is -phase.
Digital Audio I/O
Sample Rates: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Digital Inputs/Outputs
16 Channels of USB audio. 44.1 kHz - 96 kHz. USB can be used in conjunction with any other Digital I/O.AES DB-25: 8 channels of AES 24-bit at 44.1 kHz - 96 kHz. Tascam standard.AES XLR: 2 channels of AES at 44.1 kHz - 96 kHzS/PDIF RCA: 2 channels at 44.1 kHz - 96 kHzS/PDIF Optical: 2 channels (Only 44.1 kHZ and 48 kHz)Optical (Toslink): 8 channels of ADAT (Only 44.1 kHZ and 48 kHz)
Network Audio I/O
Expansion slots: 3
Dante support: Yes
MADI support: Yes
Control I/O
Remote Control Inputs
Up to two foot pedals, or four 5V control inputs, or six foot switches, or combination.Stereo 1/4" connectors. The sleeve is ground reference, the ring is +5 volts (source), and the tip is an analog signal from 0 to 5 volts. Connect either foot switches, foot pedals, or control voltage sources.
Remote Control Outputs
2 isolated relay closures, rated at 30Vdc 1A. Relay #1 is connected between ring and sleeve, while Relay # 2 is connected between ring and tip. These connections are electrically isolated from the H9000.
MIDI Connections
5 pin DIN output and thru7 pin DIN input with output capability
Physical
Size
Inches: 3.5h x 19w x 12.5dMetric: 8.9h x 48.3w x 31.7d
Weight: 14 pounds (6.4kg) net
