EVENTIDE  |  SKU: 18432

BD600+

80 sec. profanity delay with PANIC mode or HD synchronization with MicroPrecision mode: 20 sec. delay adjustable in 1µ sec. increments, with AES I/O


$5,538.99 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The BD600+ offers an unprecedented 80 seconds of the highest quality revenue and license-protecting delay - twice as much as other delays. You have the flexibility to customize the delay buffer length from four seconds to the full 80 seconds. Dump can be customized in 1/2 second increments up to 10 seconds. Each time the DUMP button is pressed, only one segment is deleted. For example, if a unit is set to the full 80 seconds of delay buffer, and is set up to provide 8-second dumps, you will have ten separate dump segments. Pushing the DUMP button the first time cuts out one 8-second segment. You still have 72 seconds of delay protection. If this is followed by more trash-talk, push the DUMP button again and you still have over a minute of delay protection. The "sneeze" button momentarily "edits" audio entering the delay, allowing the host to sneeze, cough, or make a short comment without being heard on air - and without dead air. Your station cannot afford to work without a net. With the BD600+, you will never worry about running out of delay memory.

MicroPrecision Delay mode allows up to 20 seconds of delay adjustment in real time in 100 nanosecond increments. For HD radio stations, the BD600+ provides a high-quality subsample adjustable delay for synchronizing analog and digital is the holy grail for maintaining a seamless experience for listeners. MicroPrecision Delay can be adjusted on-air, and ramped in and out for clean transitions without audible artifacts.

The BD600+ adds more delay protection, improves fidelity, and expands remote options, while maintaining the user interface and yellow DUMP button familiar to all radio engineers. It is the culmination of thirty years of designing and manufacturing highly reliable delays for broadcast. Featuring 80 seconds of delay, 24-bit digital and analog I/O, plus a host of new features, the BD600+ is the new world standard.

Features

Microprecision delay mode for HD synchronization

80 seconds of delay protection

USB Remote Control

"Panic" allows WAV file play back during delay rebuild

24-bit AES/EBU digital I/O, with optional wordclock sync

24-bit analog XLR I/O

User-defined "dump" length segmentation

"Sneeze" button for momentary edit

Remote control capability

Easy-to-wire euroblock for remote hookup (on base unit)

RS-232 I/O

Programmable I/O

Remote option offers 16 bi-polar opto-isolated inputs and 16 open-collector outputs

The New Standard for Features


If 80 seconds of delay protection were not enough, the BD600+ has a secondary backup called PANIC.

This plays a .WAV file stored on a compact flash card. While the file - a jingle, ID or other message - is played, delay is being built up in real time, allowing programming to continue in safety as soon as the jingle is over. This can also be used for painless entry into delay.

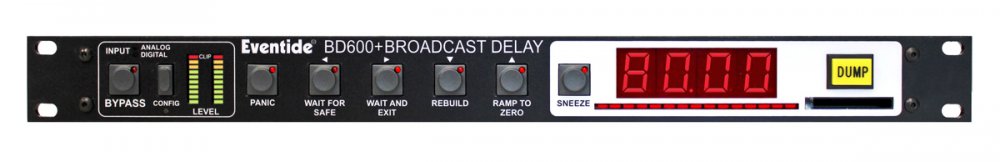

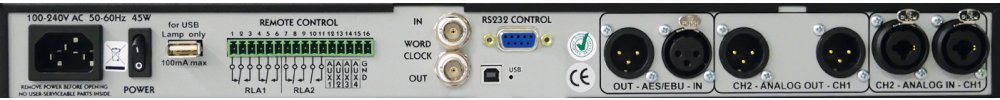

The unit shows not only an exact digital readout of delay time, but also has a "quick read" bar graph which instantly confirms "you're safe" at a glance. The BD600+ is an 80-second stereo delay unit featuring analog XLR-type inputs and outputs, as well as AES/EBU digital audio inputs and outputs. All front panel switches (except "configure") can be remoted, as can the status indicators. Both RS-232 in and out are included; four configurable control inputs and two configurable relay-isolated control outputs are provided via an easy-to-wire Euroblock barrier strip.

Specifications

Analog Input


Audio Input Connectors:
XLR pin 2 hot, true differential balanced, +4 dBm nominal
Input Impedance: 20K ohms bridging
Full Scale Input Level: +26dBu
Dynamic Range: >104dB
THD+N: <0.003 @ 1kHz, -3dBFS
Crosstalk: <-100dB @ 20Hz to 20kHz, -1dBFS

Analog Output


Audio Output Connectors: XLR pin 2 hot, true differential balanced, +4 dBm nominal
Output Impedance: 20K ohms bridging
Fuil Scale Output Level: +65dBu
Dynamic Range: >108dB
THD+N: <0.003 @ 1kHz, -3dBFS in stable delay state
Crosstalk: <-100dB @ 20Hz to 20kHz, 1dBFS
SNR: >108dB

Frequency Response


Live or Bypass: 20Hz-20kHz +- 0.1dB
HD Microprecision Delay mode 10Hz-19kHz +- 0.25dB
Broadcast Profanity Delay mode 10hZ-20kHz +- 0.1dB (while delay is chaning 10Hz-19kHz +- 1.5dB)

Profanity Delay Maximum Length: Can be set to 4, 6, 8, 12, 16, 20, 30, 40, 60, or 80 seconds
Micro Precision Fixed Delay: Can be set from .010 seconds to 9.999,999 seconds in microsecond steps

Remote Control Connectors and Interfaces


Remote Control Inputs:
RS-232 control input and output
USB Remote Control

Basic Remote:
4 configurable inputs (closure to ground)
2 relay-isolated status outputs

Optional Extended Remote:
16 bi-polar opto-isolated inputs
16 open-collector outputs
RS-232 input and delayed output

Compact Flash Interface:
Supports Type I and Type II Compact Flash cards for .WAV sample playback and software update

A/D and Digital Signal Characteristics


Sample Rates: 48kHz, 44.1kHz, Word Clock, AES/EBU
Digital Inputs/Outputs: 2 Channels of 24-bit AES/EBU

Dimensions


Inches: 1.75h x 19w x 10.5d
CM: 4.5h x 48.3w x 26.7d
Weight: 9 pounds (4.1 Kg); Shipping weight 14 pounds (6.5 Kg)
Power: 40 watts, 100-240 VAC, 50/60Hz
