Empirical Labs EL-FTC
MPN #EL-FTC
$249.95
Save 12.3%, MSRP $285.00

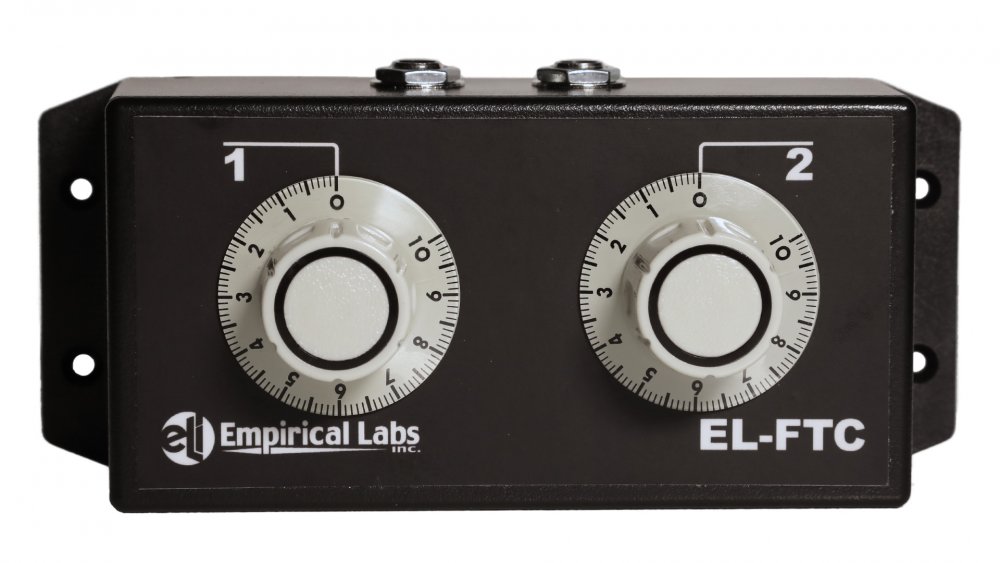

Empirical Labs FATSO and FATSO EL7X Threshold Controller
Expand the range of your FATSO and fine-tune the relationship between the Compression and Saturation circuits with the EL-FTC FATSO Threshold Controller. The EL-FTC plugs directly into the Sidechain Inserts on the back of the FATSO, giving you instant access to a world of tonal possibilities.
Specifications
Frequency Response " 2 Hz to 60 kHz in clean audio mode (+0, -3 dB).
Dynamic Range " 110 dB from maximum output (20 %THD soft clipping) to minimum output. Greater than 100 dB signal to noise.
Distortion " Ranges between .06% and 20% depending on mode and settings.
I/O " DC Coupled input and outputs.
Compressor Time Constants " Attack range 1ms " 60ms. Release range .05sec " 3.5 seconds. Attack and Releases are fixed by the compression type selected.
Power Consumption " 15 Watts Max.
Metal Chassis " single height 1.75? high, 10? deep, 19? wide.
Shipping info " Box dimensions 22.5? x 18.5? x 3 1/4?.
