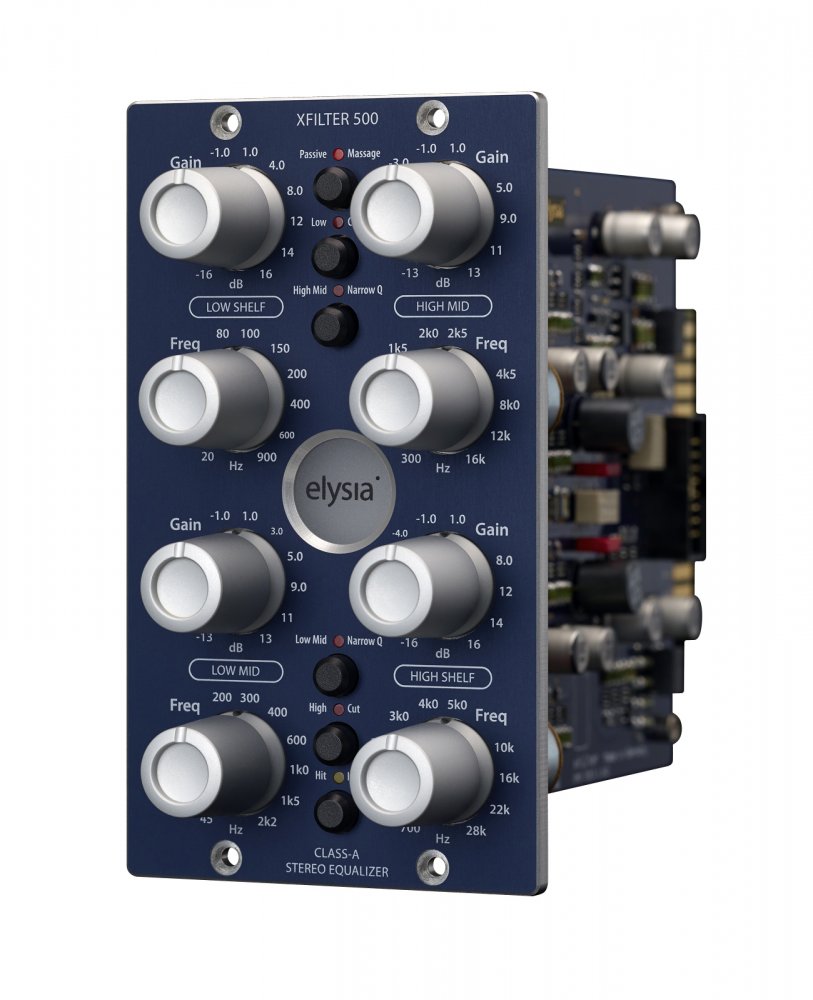

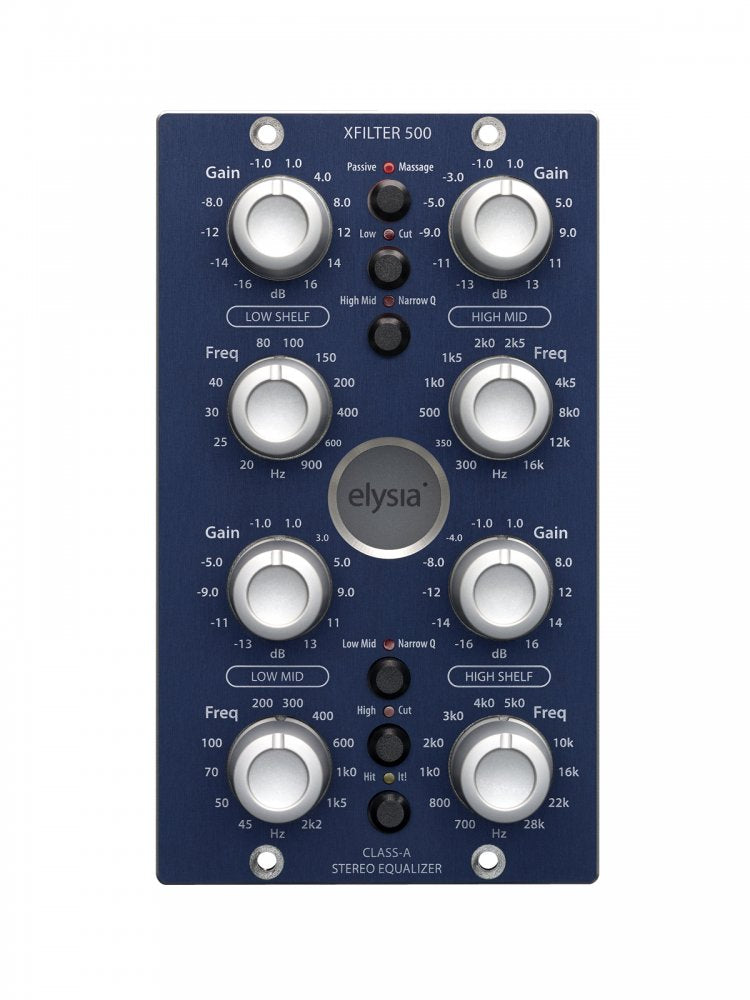

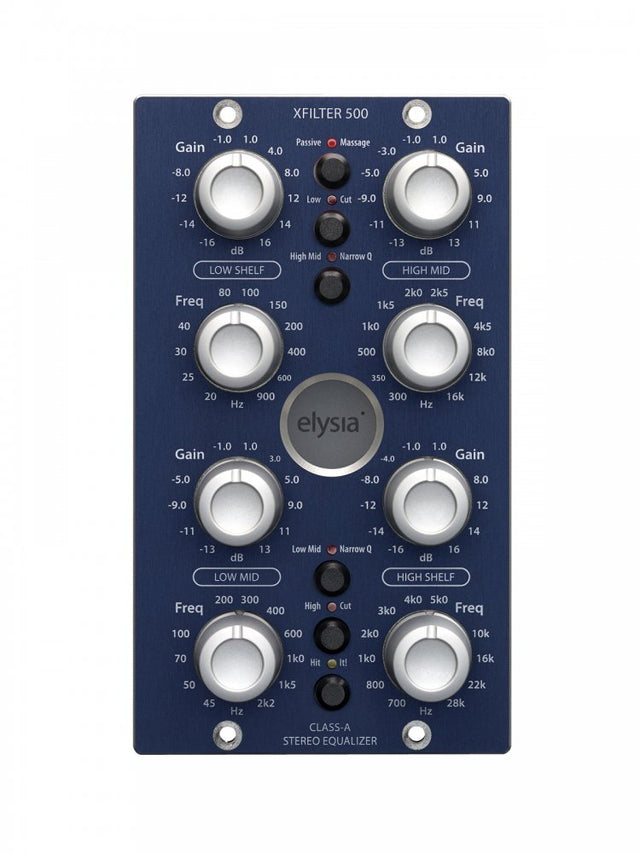

The Elysia xfilter 500 is a true linked stereo EQ in the 500 series format that gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package.
The xfilter 500 is built with a precise stereo image based on computer-selected, stepped potentiometers and low tolerance film capacitors.
This EQ is serious about flexibility. It offers high and low shelf bands which can be switched into high and low cut filters with resonance, two mid peak filters with wide and narrow Q, plus additional passive LC stages with shielded coils for a glorious top end.
With its exceptionally open sound, straight transient projection and solid punch, the xfilter is the perfect match for your xpressor - or any other piece of delicious outboard gear!
100% Class-A Topology
Discrete input, output and mix stages plus the complete audio path running in constant class-A mode are the basis for an exceptionally transparent, wide and open sounding EQ.
True Stereo Operation
As one of the few exceptions in the market, the xfilter 500 processes both of its channels with just one set of controllers - a true stereo linked EQ.
Resonance High & Low Cut Filters
The shelving filters can be switched into high and low cut filters with an additional resonance peak. Not ordinary, but extremely useful.
Switchable Filter Quality
The quality of the peak filters can be switched from a wide to a narrow Q factor which remains independent from the setting of the gain controller.
Additional Passive High-Band
The beautiful sheen only passive filters can deliver... the xfilter 500 has it all. An additional LC filter with shielded coils gives you the 'Passive Massage'.
All potentiometers on the xfilter 500 have 41 steps, which is a great help for recalling your previous sessions fast and precisely.
Every single dual and quad layer pot we buy is measured with custom computer routines, and only the good ones go into production.
Special Low Tolerance Capacitors
The special series of film caps used for the xfilter 500 performs twice as good as the industry standard in terms of component tolerance.
Ground Layer Shield
One of the four layers of both PCBs is a full copper plane which helps to reduce interferences caused by electric fields.
Frequency response: < 10 Hz - 400 kHz (-3.0 dB)
@ 0 dBu, 20 Hz - 22 kHz: 0.0018 %@ +10 dBu, 20 Hz - 22 kHz: 0.005 %
20 Hz - 20 kHz (A-weighted): -98 dBu
20 Hz - 22 kHz: 120 dB
Input: +21 dBuOutput: +21 dBu
Input: 10 kOhmOutput: 68 Ohm
Total: 210 mAPer slot: 105 mA
Manufacturer Part Number : Xfilter500
January 7, 2016
Parfait pour un sum bus!!
J'ai acheté cet EQ pour mon summing bus et je ne l'ai jamais plus deconnecté de là! Même sans faire d'EQ, il donne un "shine" à mon mix, c'est incroyable, un très bel outils avec pleins de petits "Features" qui permettent de sculpter le son à la perfection!! J'adore le "low cut and boost at the frequence!!", vraiment pratique et efficace. Read more
Le high cut aussi combiné avec le "passive massage" est super efficace!!
