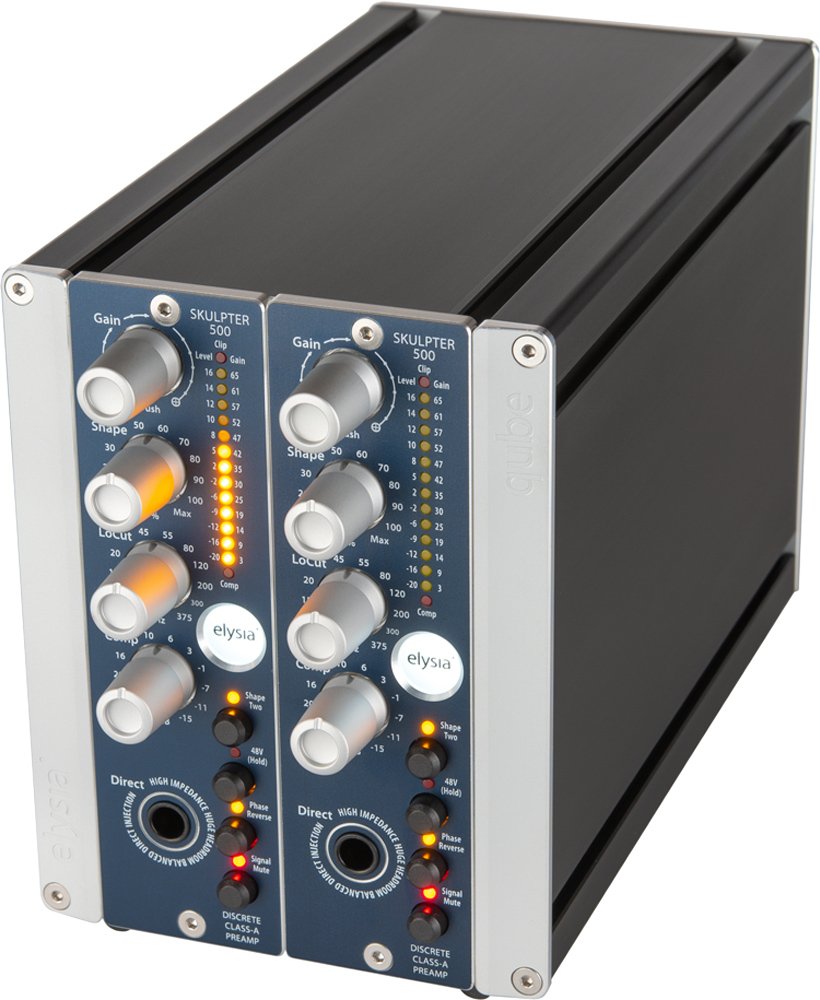

Elysia Skulpter2 qube
MPN #994060055
Ultraportable preamp including 2x Elysia Skulpter 500
A fine fusion cuisine box with the double power of our creative talent the elysia skulpter 500. This is not only boring Preamp x2. The elysia skulpter is a flexible recording toolbox that meets the whole flavor of creativity including high-class sound-shaping possibilities with filter and saturation stages plus compressor. It's highly recommended to put this qube in front of your DAW for all your excellent instrument and vocal recordings. With only a few tweaks you will get the highest audio quality for your music
Way more than just a preamp, the skulpter 500 is a complete recording solution - everything you'll ever need in front of your DAW.
Features
100% Discrete Class-A Topology
Pristine audio path and signal processing.
Audiophile Gain Staging
Single resistors controlled by a relays cascade.
Dual Sound Shaper
Mojo machine with filters and harmonics.
Intelligent Onboard Dynamics
Smart controlled musical compression.
Variable Low Cut Filter
Flexible low frequency clean up.
Balanced DI
Instrument input with massive headroom.
Multifunction Meter
Level, gain, compression and clipping.
Stepped Controllers
Exact and repeatable settings.
Specifications
Total gain range: 3 - 65 dB in 1.5/2 dB steps
Frequency response
@ 3 dB gain: 10 Hz - 170 kHz (-3 dB)@ 29 dB gain: 10 Hz - 170 kHz (-3 dB)
THD+N
@ +6 dBu out level, 3 dB gain, 20 Hz - 22k Hz: 0.007%@ +6 dBu out level, 29 dB gain, 20 Hz - 22 kHz: 0.007%
Noise floor
@ 3 dB gain, 20 Hz - 20 kHz (A-weighted): -97 dBu@ 29 dB gain, 20 Hz - 20 kHz (A-weighted): -93 dBu
Common Mode Rejection Ratio
@ +6 dBu out level, 29 dBu gain, 1 kHz: 87 dB@ +6 dBu out level, 29 dBu gain, 10 kHz: 69 dB
Maximum level
Mic Input: 19 dBuDI Input: 19 dBuOutput: 21 dBu
Impedance
Mic Input: 13.6 kohmDI Input: 1 megohmOutput: 62 ohm
Power Consumption
Total: 116 mA
