Electro Voice ETX18SP
UPC/EAN #800549769341
MPN #ETX-18SP-US

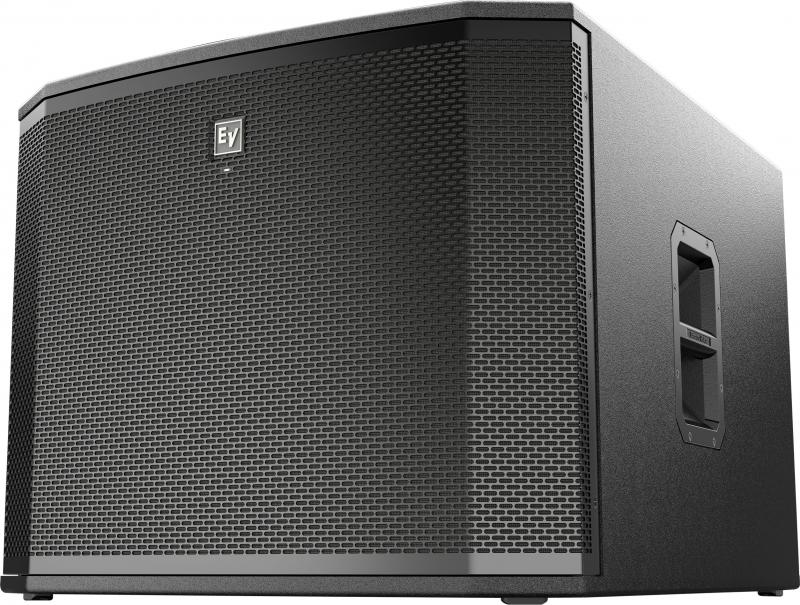

The ETX18SP is a 18" Powered Subwoofer. Designed, engineered, tested and assembled for ultimate reliability by Electro-Voice.
The ETX Powered Loudspeaker family builds upon the industry-leading innovation and 85-year heritage of Electro-Voice audio engineering to offer the most advanced professional-grade products for an array of applications.
A versatile high-end choice for live entertainment venues, rental companies, pro musicians and DJs, and installed sound, the family offers technologies from EV concert/touring systems. Three two-way models, a three-way model and two subs are available.
The ETX Powered Loudspeaker family extends the awardwinning industrial design introduced by Electro-Voice in 2013. Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set the family apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EVengineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
Features

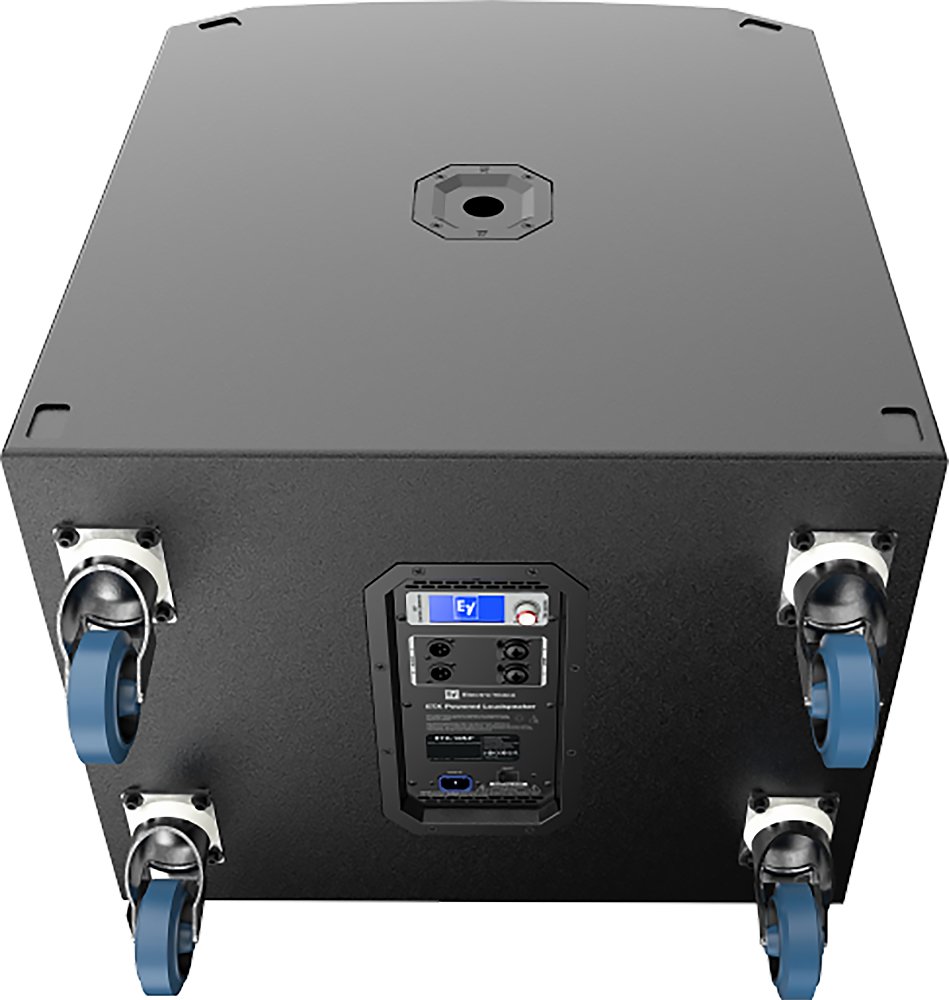

18-inch DVX woofer for extended low-frequency response1800 W Class-D power amplifier with integrated FIR-Drive DSP135 dB peak SPLSpecial DSP preset for true cardioid performance across the full operating bandwidthCombo pole cup (insert and threaded) for use with the ETX two-way modelsRemovable casters
Specifications
Power Rating: 1800 W

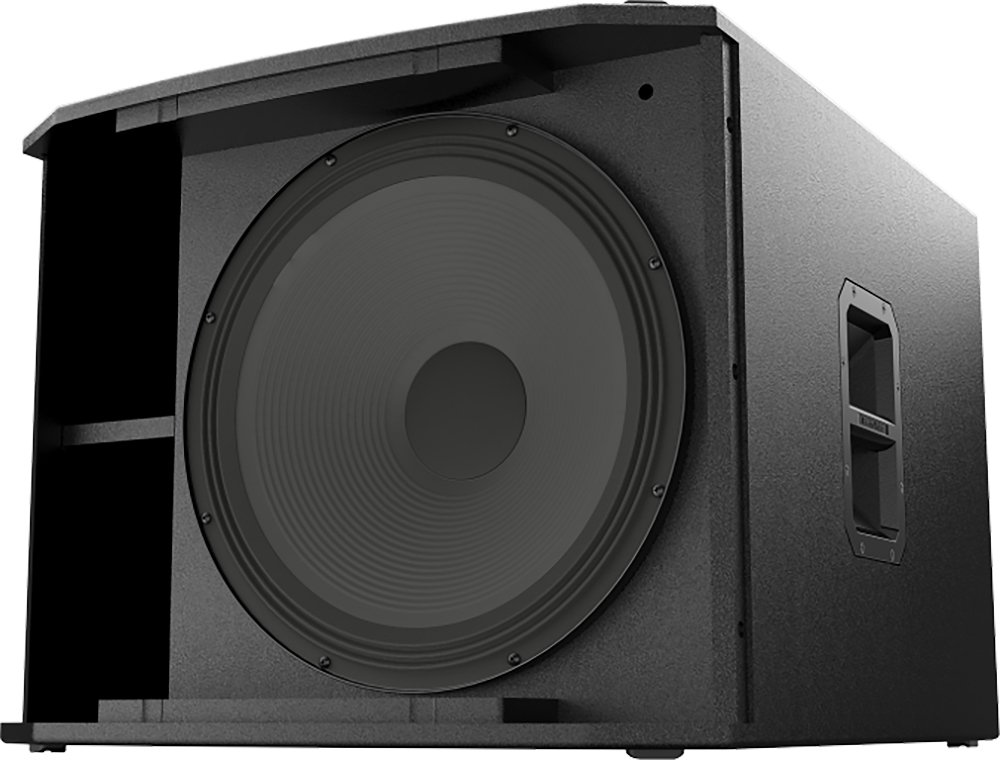

LF Transducer: DVX3180A 457 mm (18 in)
Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz

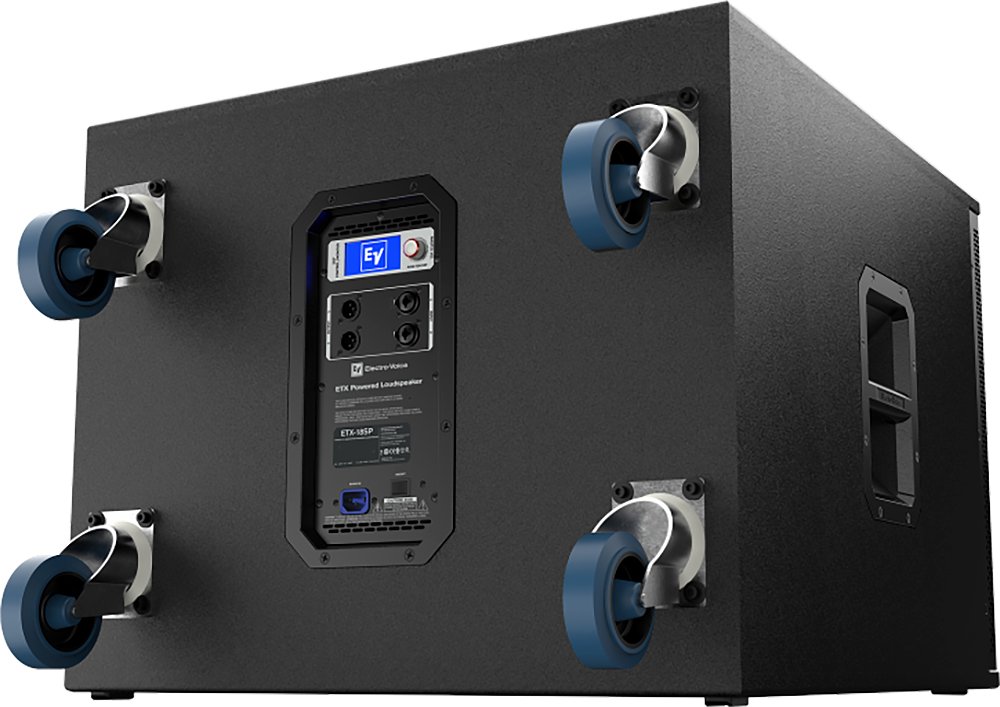

Connectors: (2) XLR/TRS Combo Jack and (2) XLR link Output
Enclosure: 18 mm, 13-ply birch plywood with EVCoat
Grille: 16AWG steel with powdercoat
Dimensions (H x W x D): 550 mm x 675 mm x 910 mm (22 in x 27 in x 36 in)
Dimensions (H x W x D): without casters 550 mm x 675 mm x 777 mm (22 in x 27 in x 31 in)
Net Weight: 51.8 kg (114.2 lb)
Shipping Weight: 58.9 kg (129.9 lb)
Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³
¹ Half space measurement using the music DSP preset and 150 Hz low pass.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum amplifier output.
³ Current rating is 1/8 power.
