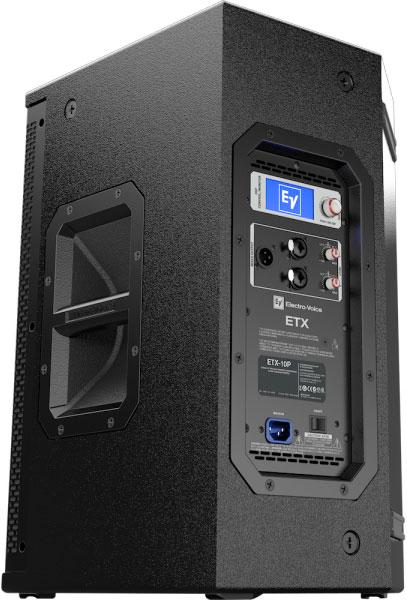

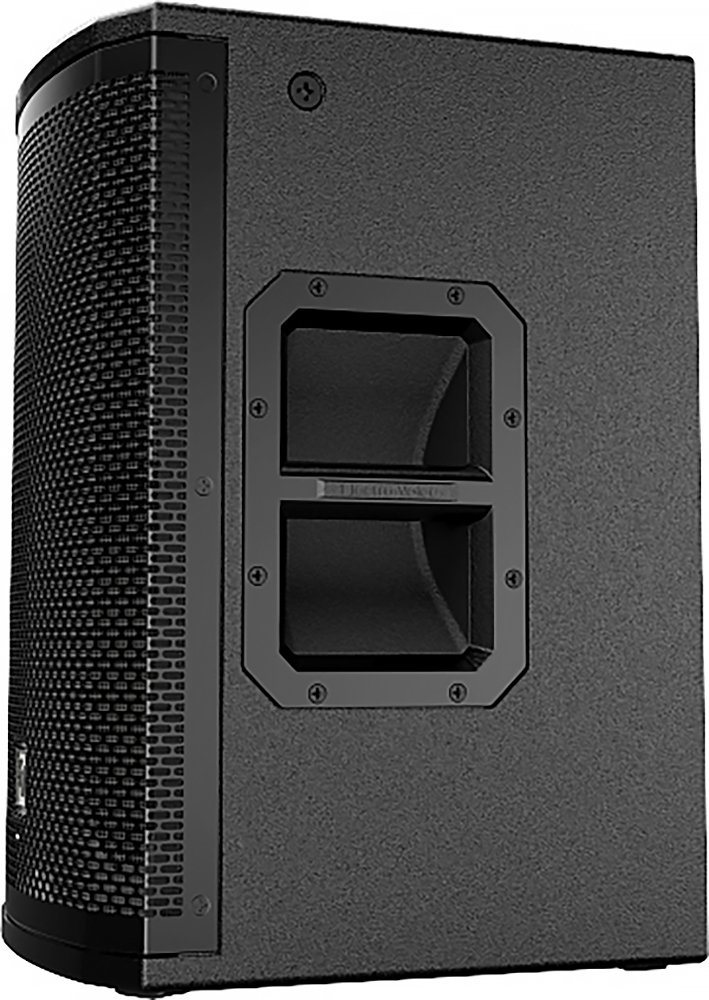

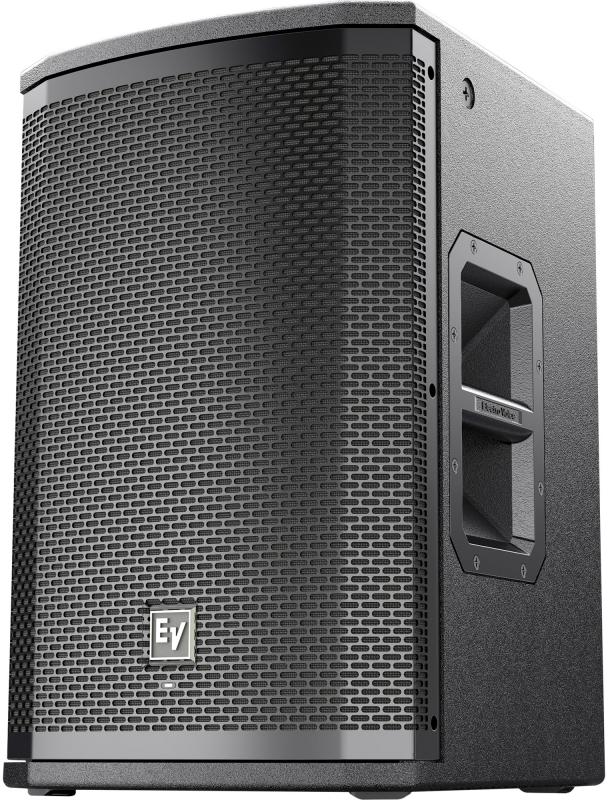

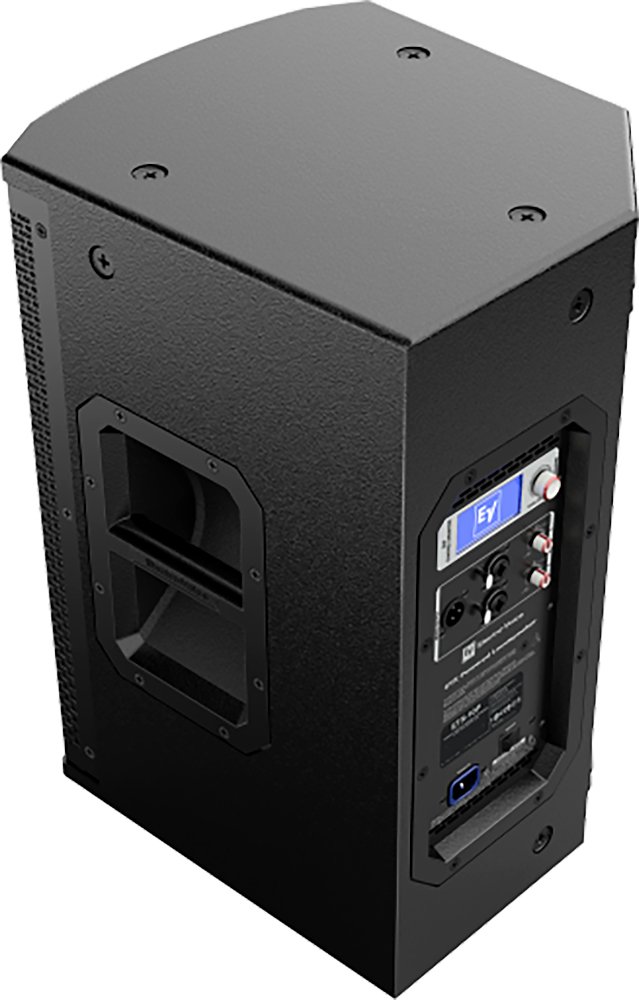

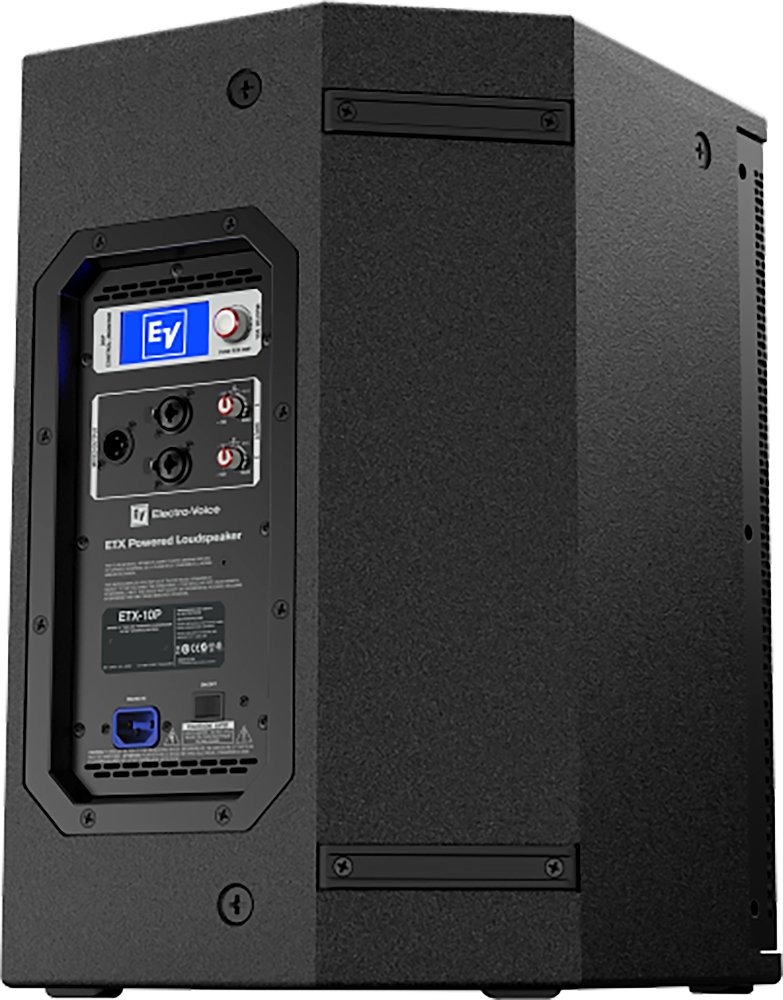

Electro Voice ETX10P
UPC/EAN #800549769297
MPN #ETX-10P-US
The ETX10P is a 10" Two-Way Powered Loudspeaker. Designed, engineered, tested and assembled for ultimate reliability by Electro-Voice.
The ETX Powered Loudspeaker family builds upon the industry-leading innovation and 85-year heritage of Electro-Voice audio engineering to offer the most advanced professional-grade products for an array of applications.
A versatile high-end choice for live entertainment venues, rental companies, pro musicians and DJs, and installed sound, the family offers technologies from EV concert/touring systems. Three two-way models, a three-way model and two subs are available.
The ETX Powered Loudspeaker family extends the awardwinning industrial design introduced by Electro-Voice in 2013. Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set the family apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EVengineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
Features
10-inch LF SMX woofer1.25-inch HF titanium compression driver2000 W Class-D power amplifier with integrated FIR-Drive DSP134 dB peak SPL
Specifications
Frequency Response (-3 dB): 85 Hz - 20 kHz¹
Frequency Range (-10 dB): 65 Hz - 20 kHz¹
Maximum SPL: 134 dB peak²
Coverage (H x V): 90 x 60
Power Rating: 2000 W
LF Transducer: SMX2100 254 mm (10 in)
HF Transducer: DH3-B 1.25-in titanium compression driver
Crossover Frequency: 1700 Hz
Connectors: (2) XLR/TRS combo jack and (1) XLR link output
Enclosure: 18 mm, 13-ply birch plywood with EVCoat
Grille: 16AWG steel with powdercoat
Suspension: (8) M10 suspension points
Dimensions (H x W x D): 526 mm x 330 mm x 365 mm (21 in x 13 in x 14 in)
Net Weight: 20.3 kg (44.8 lb)
Shipping Weight: 22.9 kg (50.5 lb)
Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³
¹ Full space measurement using the music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
