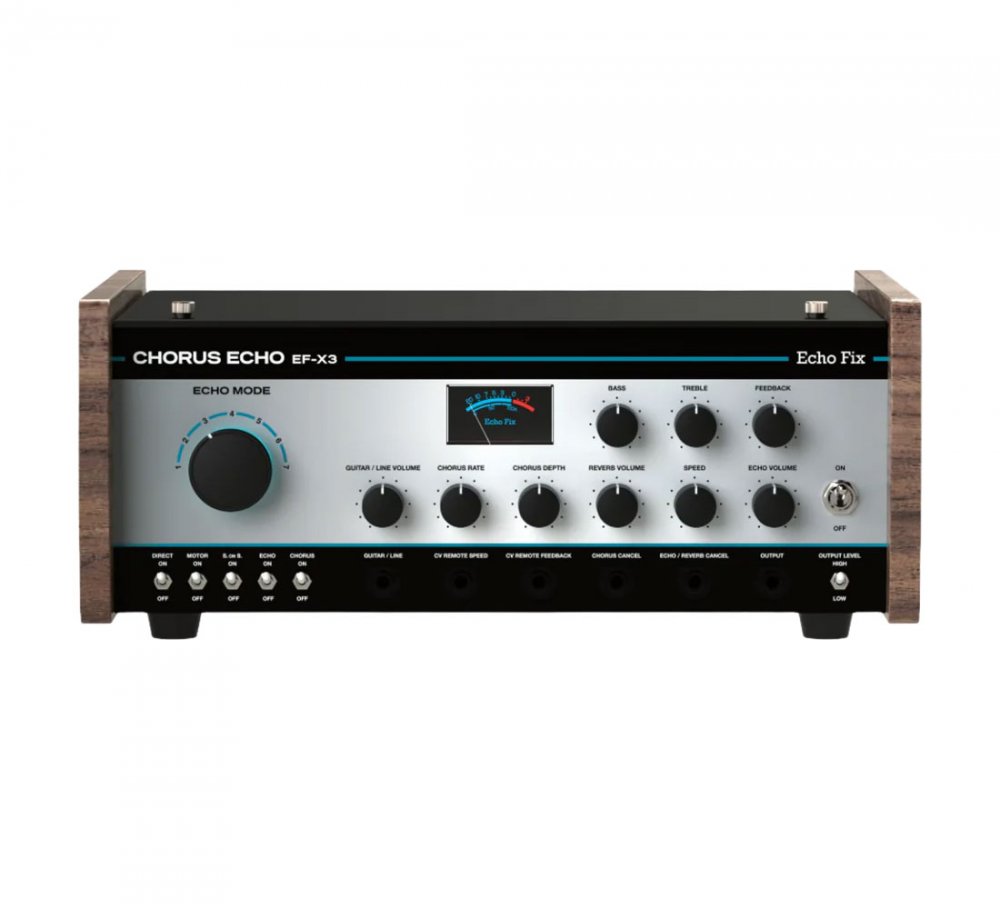

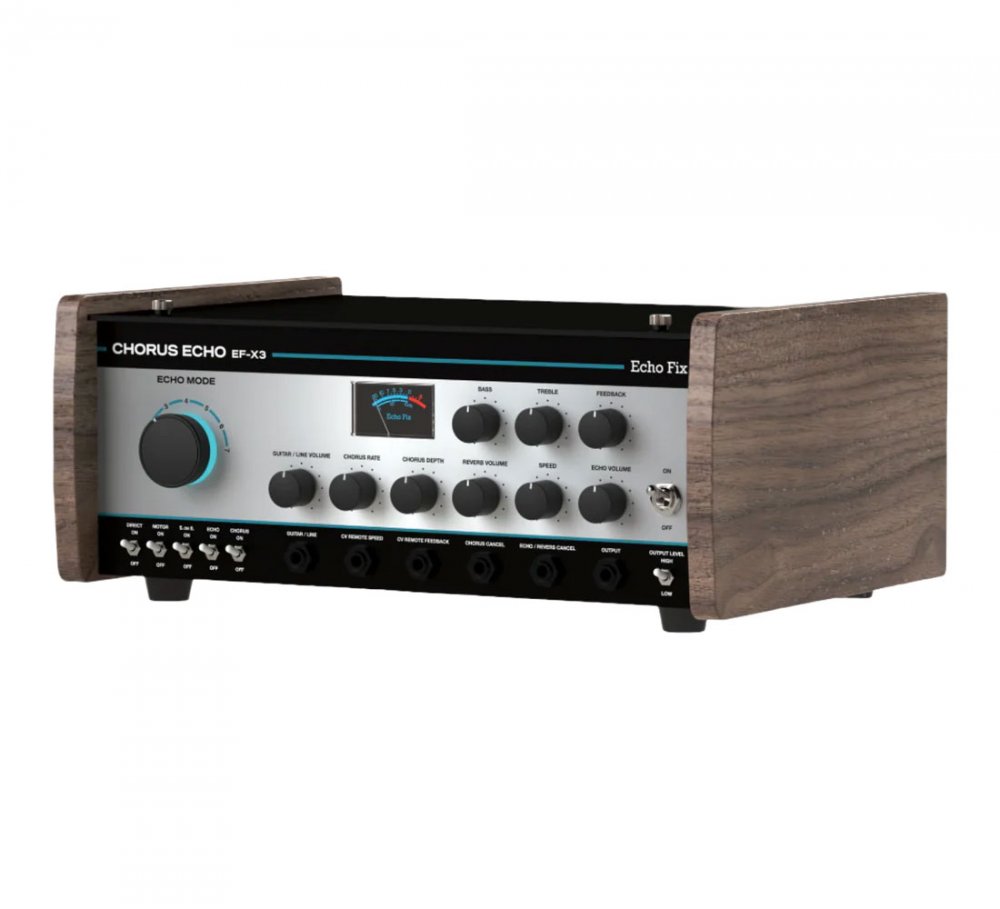

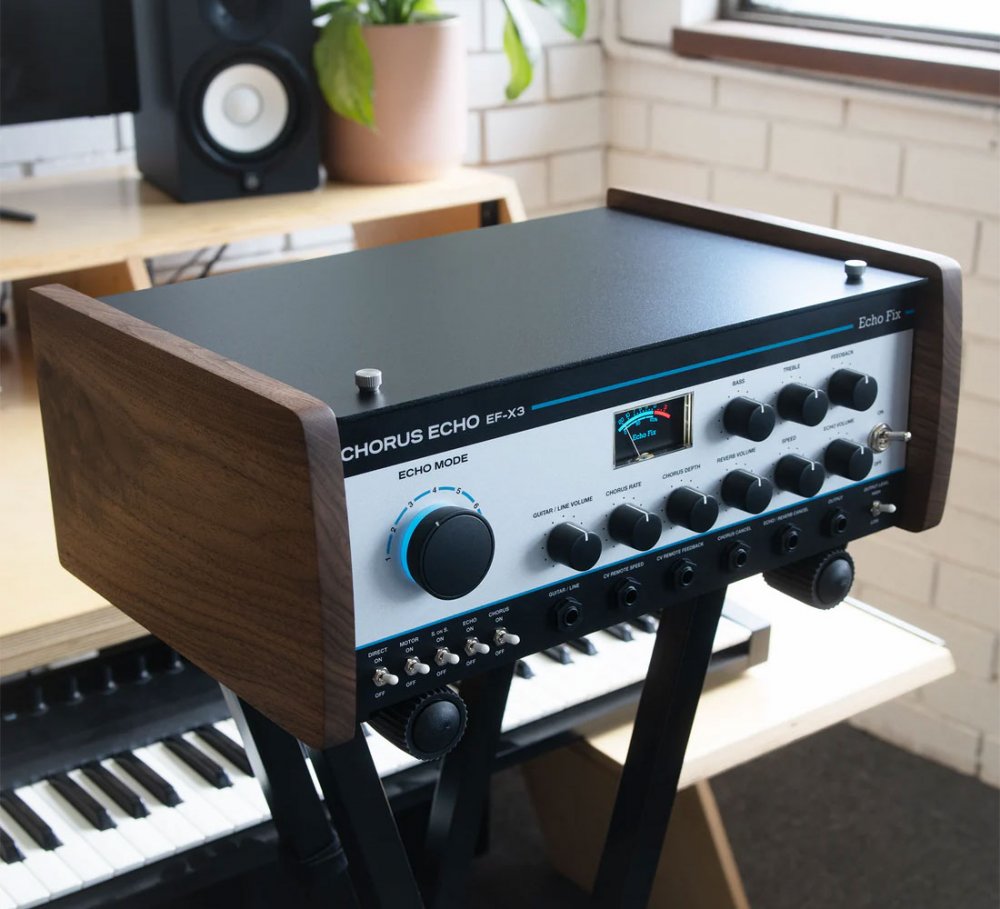

Silver front-panel EF-X3 Chorus Echo with analog BBD chorus, spring reverb, stereo playback outputs, and vintage tape delay tone. Built in Australia for unmatched reliability.
The Echo Fix EF-X3 Desktop with Silver Front Panel delivers the iconic sound and feel of a true analog tape echo, enhanced with modern reliability. Featuring a 100% analog signal path, it offers lush BBD chorus, authentic spring reverb, and multi-head tape delay for warm, organic textures. With individual playback head outputs for stereo ping-pong effects and a dedicated Sound-On-Sound head for extended delay, the EF-X3 is as creative as it is musical. Built in Australia with a rugged metal lid and a clean Silver finish, it's a perfect balance of vintage character and contemporary design for studio or stage.
Caractéristiques
Silver scratch-resistant front panel with wood side panels for a classic studio finish.
100% analog signal path featuring BBD analog chorus and spring reverb.
Individual playback head outputs for external panning and true stereo ping-pong delays from mono sources.
Independent SOS (Sound On Sound) head with up to 1.2 seconds of delay time.
Auto tape stop conserves tape and motor life (switchable at rear).
Four playback heads + SOS head with 7 selectable head mode settings.
CV control (0"5V) for motor speed and feedback using compatible expression pedals.
Vintage guitar/line FET preamp with front-panel high/low output level switch.
Bass and treble EQ for precise tone shaping of the echo signal.
Motor ON/OFF switch for real-time tape slowdown effects.
Direct WET output for reverb and chorus on rear panel.
Remote footswitch capability for muting echo, chorus, and reverb.
Balanced inputs/outputs, removable metal lid, and worldwide-compatible 100"240V power supply.
Includes two tape loops, quick-start accessories, and backed by a 2-year warranty.Silver scratch-resistant front panel with wood side panels for a classic studio finish.
100% analog signal path featuring BBD analog chorus and spring reverb.
Individual playback head outputs for external panning and true stereo ping-pong delays from mono sources.
Independent SOS (Sound On Sound) head with up to 1.2 seconds of delay time.
Auto tape stop conserves tape and motor life (switchable at rear).
Four playback heads + SOS head with 7 selectable head mode settings.
CV control (0"5V) for motor speed and feedback using compatible expression pedals.
Vintage guitar/line FET preamp with front-panel high/low output level switch.
Bass and treble EQ for precise tone shaping of the echo signal.
Motor ON/OFF switch for real-time tape slowdown effects.
Direct WET output for reverb and chorus on rear panel.
Remote footswitch capability for muting echo, chorus, and reverb.
Balanced inputs/outputs, removable metal lid, and worldwide-compatible 100"240V power supply.
Includes two tape loops, quick-start accessories, and backed by a 2-year warranty.
Spécifications
General Specifications
100% analog signal path
Built-in analog BBD chorus
Real spring reverb tank
4 playback heads + Sound-On-Sound (SOS) head
Direct outputs for each playback head for external stereo ping-pong effects
Auto tape stop circuit to prolong tape and motor life (switchable)
Durable construction with high-quality components
Silver front panel with classic Echo Fix design
Includes 2 tape loops and worldwide power supply
Echo Functionality
4 tape playback heads with 7 selectable combinations
Sound-On-Sound head can be used independently or alongside other heads
Independent SOS switch for extended 1.2-second delay
Tape speed adjustable from 4 IPS to 15 IPS
Echo tone shaping via bass and treble EQ controls
Motor ON/OFF switch enables real-time tape slowdown effects
Chorus & Reverb
Analog BBD chorus with rate and depth control
Classic analog spring reverb tank
Rear-panel WET output for isolated reverb and chorus signal
Remote footswitch support for reverb, chorus, and echo muting
Audio Inputs and Outputs
Balanced XLR input and output (rear)
Individual playback head outputs (Heads 1"3)
Vintage-style FET preamp with front-panel input (line/guitar level switchable)
High/Low output level selector for output gain control
Control & Modulation
CV input for motor speed modulation (0"5V)
CV input for feedback level (0"5V)
Compatible with expression pedals or external voltage controllers
