Earthworks M23

UPC/EAN #827517000558 MPN #M23

$650.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

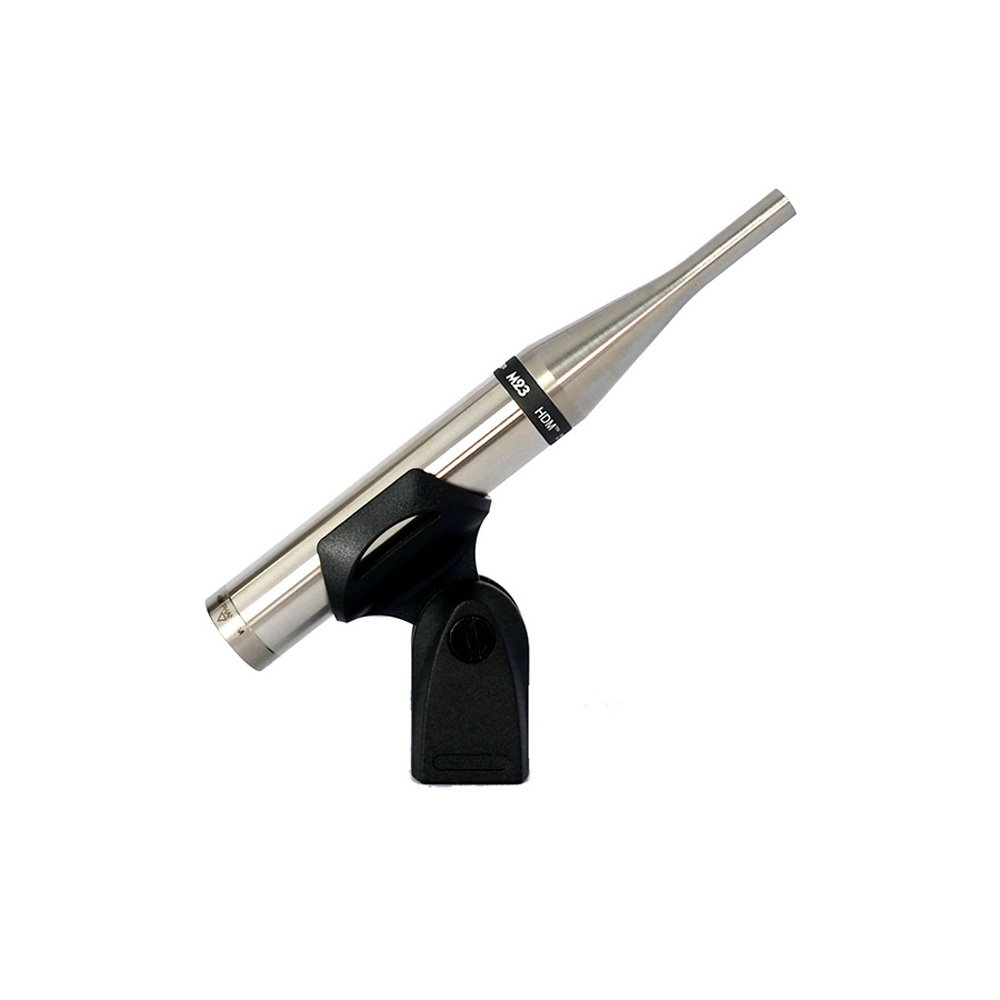

Omnidirectional small-diaphragm condenser measurement microphone, 3Hz to 23kHz , mic clip & ADP1 adapter included

The M Series has become the accepted standard for affordable, reliable reference and measurement microphones that are accurate in the time domain and frequency response. They are remarkably stable with respect to temperature and atmospheric conditions and are optimized for clean, very fast impulse performance providing accurate wideband response with virtually no handling noise.

The M23 is a precision engineered 23kHz omnidirectional measurement microphone ideally suited for acoustical measurements including loudspeaker design and quality control, sound system setup and troubleshooting, room acoustics, or any application where an accurate free-field measurement microphone is required.

Features

30kHz flat frequency response

Ideally suited for acoustical measurements including loudspeaker design and quality control, sound system setup and troubleshooting, room acoustics, or any application where an accurate free-field measurement microphone is required

Improved version of the SMAARTMIC? previously offered by EAW

Omnidirectional polar pattern

Flat frequency response, fast impulse response and exceptional polar characteristics

Used by SMAART?, MLSSA?, Spectrafoo?, TEF? and RTA in addition to acoustic measurement systems manufactured by dbx, DEQX and others

Meets or exceeds ANSI Type 1 and applicable IEC 61094 requirements

Requires 48V Phantom Power

Each M Series microphone is delivered with its own calibration chart providing its individually measured open-circuit sensitivity and the frequency response curve

Electronic Calibration File available

Operating Temp Range: -10 deg C to +40 deg C ( 14 deg. F to 104 deg. F)

Storage Temp Range: -20 deg C to +50 deg C ( -4 deg. F to 122 deg. F)

Re-calibration recommended every five (5) years

Specifications

Frequency Response: 3Hz -23kHz

Polar Pattern: Omnidirectional

Sensitivity: 34mV/Pa (-29dBV/Pa)

Power Requirements: 24-48V Phantom, 10mA

Max Acoustic Input: 140dB SPL

Output: XLR (pin 2+)

Output Impedance: 65 balanced (between pins 2 & 3)

Min Output Load: 600 between pins 2 & 3

Noise: 20dB SPL equivalent (A weighted)

Dimensions L x D: 165mm x 22mm (6.5 x .860 inches)

Weight: .36 lb. (160g)
