Dynaudio LYD 5

UPC/EAN #5706937614789 MPN #LYD-5

$679.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

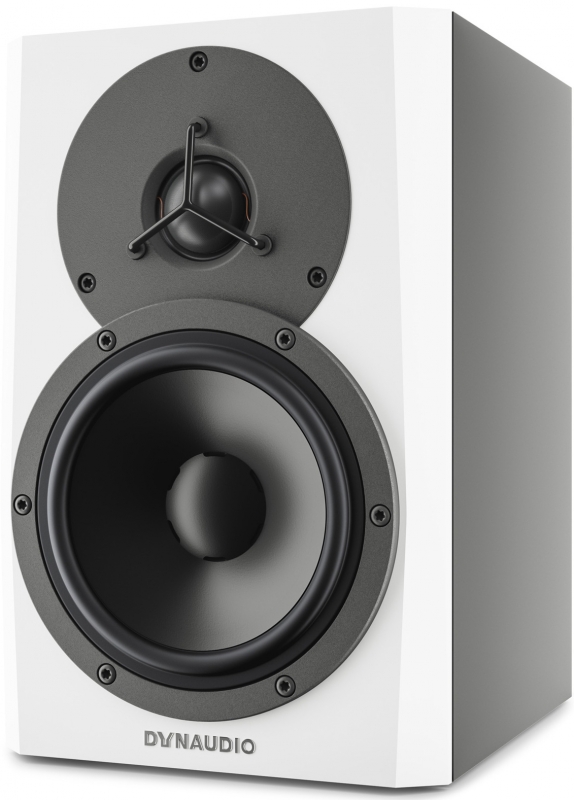

Nearfield monitor with 5" woofer and soft dome tweeter, 50W LF and 50W HF class D amp w/bass extension, white finish

Since the dawn of Dynaudio, craftsmanship has been an integral part of our legacy, and while LYD is a redefinition of our previous monitors, we have not disowned this characterizing trade. The 28 mm Soft Dome tweeter and three differently-sized MSP drive units - depending on model - used for LYD are still handcrafted in our Danish factory near Skanderborg.

Each handmade drive unit is well-cared for: fuelled individually by state-of-the-art Class-D amplifiers featuring 96kHz / 24-bit signal paths that make sure they have enough power to reproduce sound faithfully.

With our extensive research and know-how, we wanted to offer choices and opportunities for musicians, producers, and artists; options that enabled them to mix and edit their music with precision. To do so, we included an advanced DSP with two tuning presets for different setups, Sound Balance filters for adjusting the frequency response, and Bass Extension for moving the bass cut-off to the preferred position.

Features

Nearfield Monitor with 5" Woofer

Bi-amped speaker design with 2 x 50W and state-of-the-art Class-D amplification

Bass extension to extend or curtail the low end frequency response

Two different tunings: one for free standing and one designed for speakers within 50 cm of wall

Sound balance to influence the overall response of the speaker

Made in Denmark

Specifications

Speaker

Max SPL (1m, pair): 106dB

Principle: Bass reflex

Crossover Frequency: 5.2kHz

Tweeter: 1inch Soft dome

Mid: N/A

Woofer: 5 inches

Dimensions (W x H x D): 170 x 260 x 211mm

Weight: 5.7kg

Sensitivity (85dB @ 1m, free field)

+6dB: 50mV

0dB: 100mV

-6dB: 200mV

Amplifier

Power (Tweeter/Woofer): HF 50W/LF 50W

Type: Class D

Power consumption standby:

Power consumption max.: 100W

Input voltage: 90 - 264V AC, 50 - 60Hz

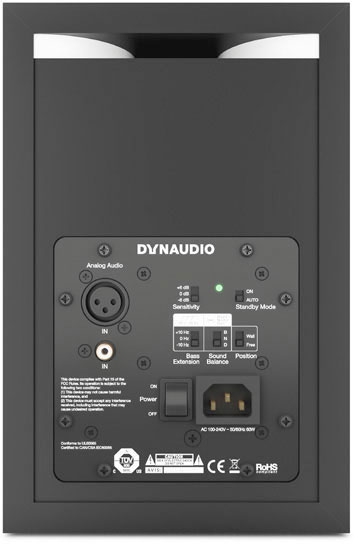

Inputs: XLR balanced/RCA unbalanced

Outputs: N/A

Cut-off frequencies -6dB limits

Bass extension +10Hz: 70Hz - 21kHz

Bass extension 0Hz: 60Hz - 21kHz

Bass extension -10Hz: 50Hz - 21kHz

Free field frequency response: 62Hz - 19kHz
