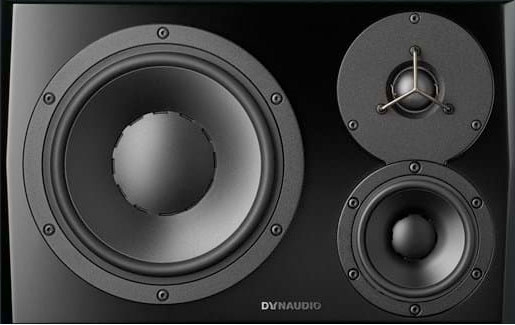

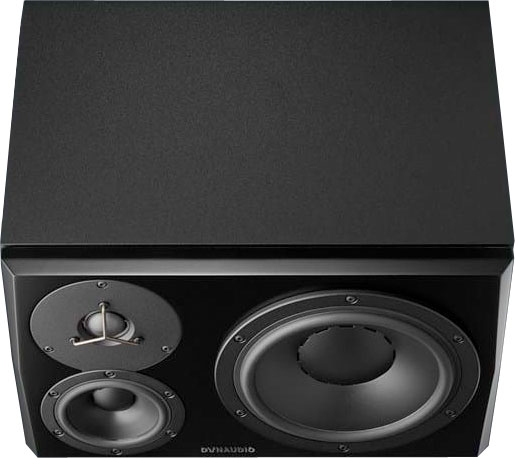

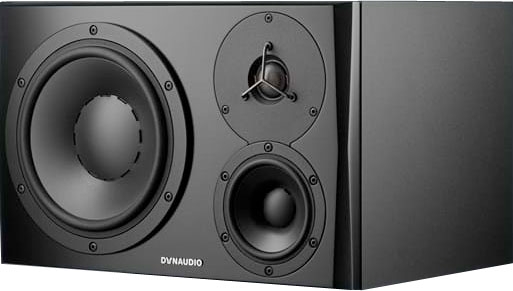

Dynaudio LYD 48B

UPC/EAN #5706937629318 MPN #LYD-48B

$1649.00

Save 14.5%, MSRP $1929.00

Financing available

∗ This special bundle includes ∗

(1x) Mogami Platinum Studio XLR - XLR 12' *

Be the first to write a review

Free shipping in Canada. Conditions

Mid & nearfield three way monitor with 8" woofer, 4" mid driver and soft dome tweeter, black finish

The 3-way LYD 48 achieves its unerring accuracy thanks to a new soft-dome tweeter and Dynaudio's proprietary Magnesium Silicate Polymer midrange and woofers.

Each of its three drivers are fueled by a powerful, state-of-the-art Class-D amplifier that features a 96kHz / 24bit signal way.

Finally, with its advanced DSP, LYD 48 lets you extend or curtail the low-frequency response by 10Hz where needed, while Position and Sound Balance ensure optimal performance in any environment.

Available in the sleek white and black design, as the original LYD range, but it is also available in a classic all-black version.

Features

Speaker
- Max SPL (1m, pair): 112dB
- Principle: Bass reflex
- Crossover Frequencies: 460Hz / 5.5kHz
- Tweeter: 1inch Soft dome
- Midrange: 4 inches
- Woofer: 8 inches
- Dimensions (W x H x D): 369 x 234 x 328mm
- Weight: 12kg

Specifications

Sensitivity (85dB @ 1m, free field)

+6dB: 50mV

0dB: 100 mV

-6dB: 200 mV

Amplifier

Power (Tweeter/Midrange/Woofer): 50W/50W/80W

Type: Class D

Power consumption standby:

Power consumption max.: 100W

Input voltage: 90 - 264V AC, 50 - 60Hz

Inputs: XLR balanced/RCA unbalanced

Outputs: N/A

Frequency response -6dB limits

Bass extension +10Hz: 60Hz - 21kHz

Bass extension 0Hz: 50Hz - 21kHz

Bass extension -10Hz: 40Hz - 21kHz

Free field frequency response: 50Hz - 19kHz
