Drawmer MQ-2
MPN #MQ-2
Stereo 7-band proportional Q EQ with one-knob adaptive compression, harmonic Crush feature, ±10dB cut/boost, bypass, and flexible signal path for warm analogue tones

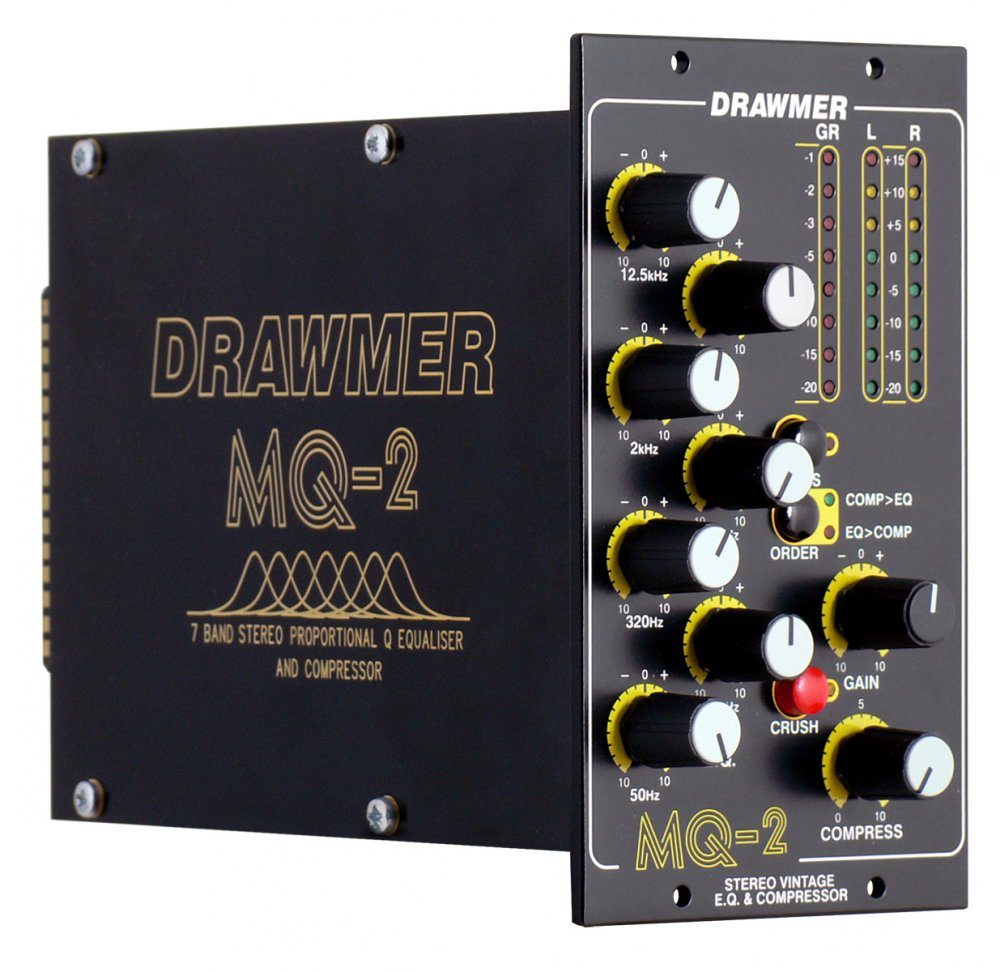

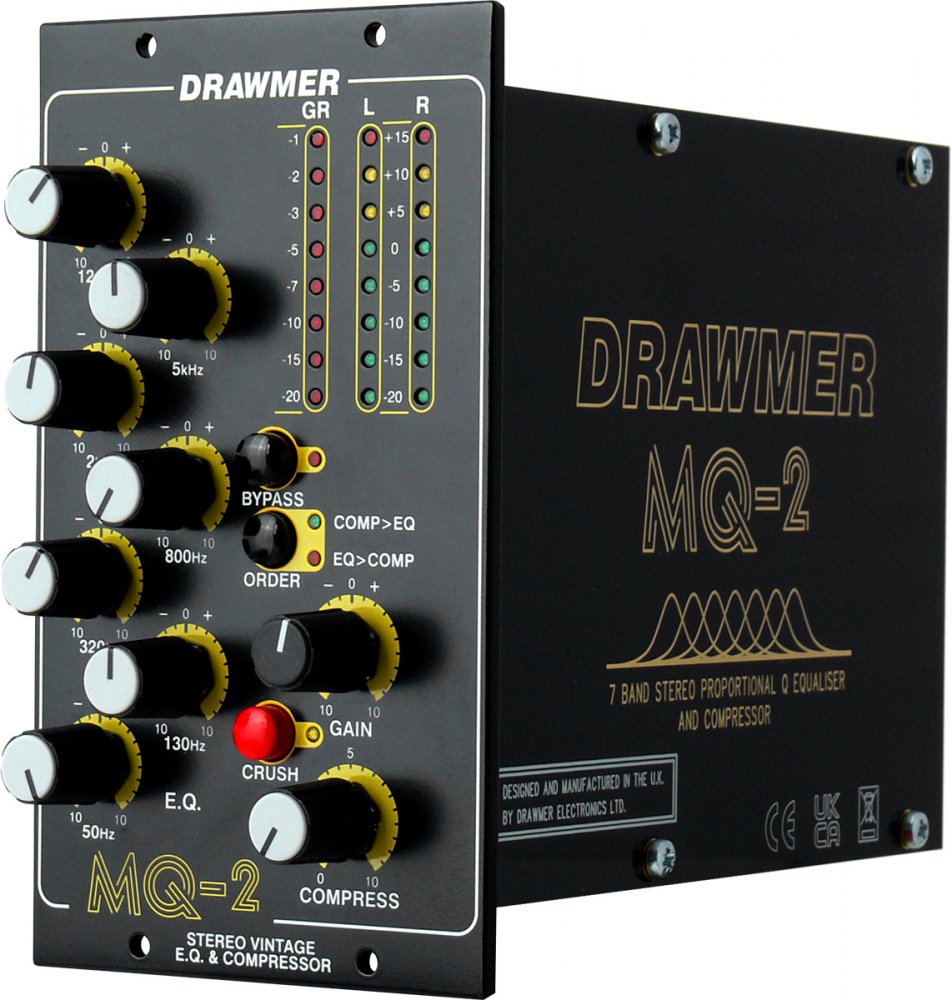

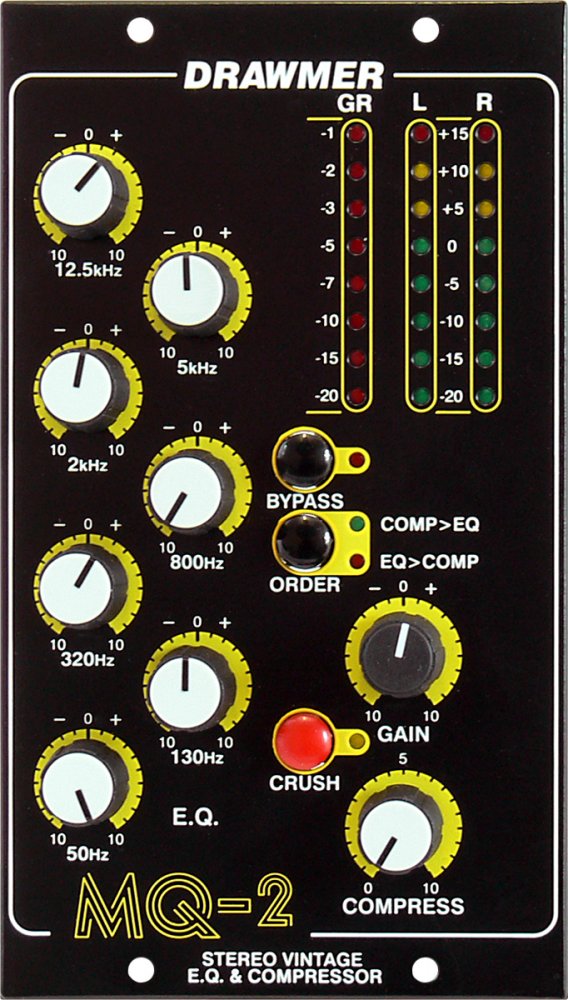

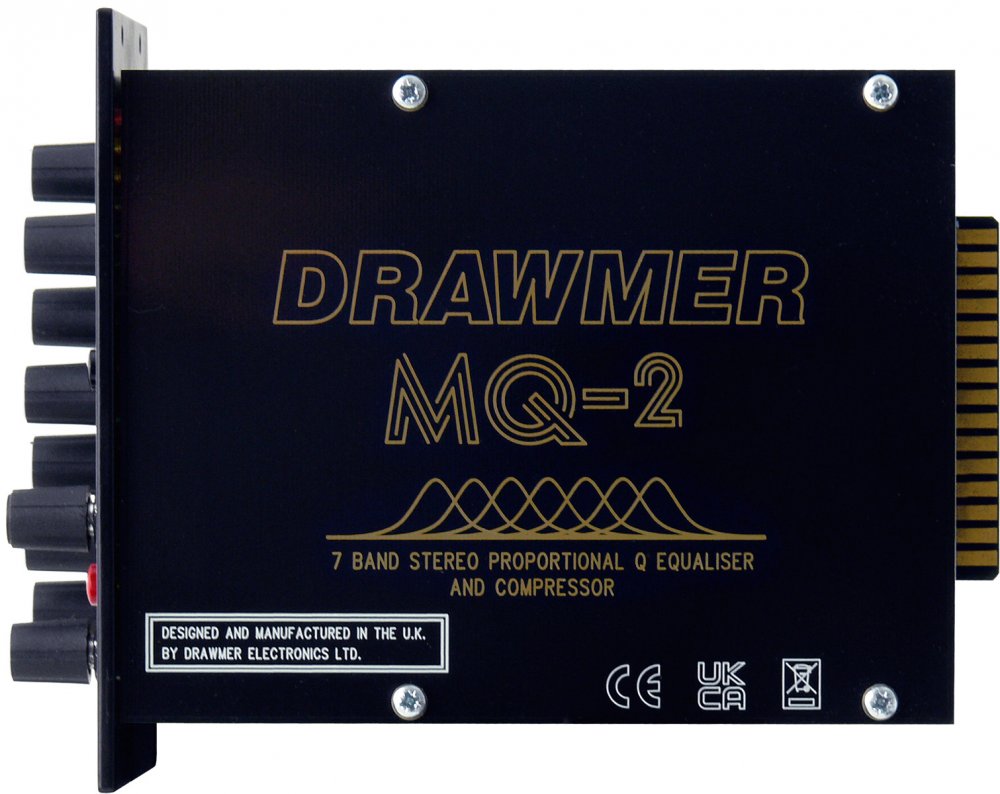

The Drawmer MQ-2 Stereo Vintage EQ & Compressor is a professional-grade audio processor designed to deliver rich, warm, and dynamic sound. Inspired by the iconic "Motown EQ" of the 1960s, this stereo device features a 7-band proportional Q parametric equalizer and a program-dependent one-knob compressor. Its fully analog circuitry offers seven musically tuned bell curves with a variable cut/boost range of ±10 dB, designed to bring out the best in your sound across the frequency spectrum. The MQ-2 also incorporates a "CRUSH" feature that adds harmonic saturation for classic analog warmth and character, ideal for enhancing bass, midrange, and treble elements in your mix.
With intuitive controls and stereo-linked processing, the MQ-2 simplifies achieving professional sound quality. Features like switchable EQ/Compressor signal paths, hardwired bypass, and flexible output gain adjustment provide versatility for various audio setups. Housed in a robust design for 500-series racks, it's an excellent choice for studios seeking vintage-inspired tonal control and sonic enhancement.
Features
Stereo 7-Band Equalizer: Provides precise control with seven proportional Q parametric bands inspired by the Motown EQ from the 1960s, offering musical frequency adjustments from sub-bass to brilliance.One-Knob Compressor: Simple program-dependent compression control that automatically adapts to the input signal for effortless level management.CRUSH Feature: Adds harmonic saturation and analogue warmth to the signal, enhancing bass, mids, and highs with vintage-style character.Flexible Signal Path: Allows swapping the order of EQ and compression to achieve different tonal qualities.Analog Warmth: 100% analog circuitry delivers a rich, warm sound that enhances audio quality with classic tonal characteristics.Integrated Bypass: A hard-wired bypass switch for direct A/B comparisons without processing.Output Control: Adjustable gain settings ensure optimal output levels while preserving signal integrity.Compact 500 Series Design: Fits into two slots of a 500 series rack for streamlined studio integration.
Specifications
General Specifications
Stereo 7-band proportional Q parametric Equaliser for 500 series.Fully analogue signal processing.Inspired by the 1960s Motown EQ.Designed and manufactured in the UK.
Equaliser
Frequency bands: 50 Hz, 130 Hz, 320 Hz, 800 Hz, 2 kHz, 5 kHz, 12.5 kHz.Cut/Boost range: ±10 dB per band.Fixed frequency settings for musicality.
Compressor
Single-knob operation.Program-dependent compression with auto-adjusting attack and release.Compression range: 0 to 10 (variable).Integrated "CRUSH" feature for harmonic saturation and analogue warmth.
Signal Path
Switchable order: EQ>COMP or COMP>EQ.Hard-wired bypass switch for signal comparison.Output gain control range: -14 dB to +14 dB.
Meters
Gain Reduction Meter: 8-segment LED bar graph, range 0 to 30 dB.Left & Right VU Meters: 8-segment LED bar graph, range -20 dB to +15 dB.
Installation
Requires two 500-series slots.Align module connectors with rack slots before securing.Compatible with standard 500-series racks.
Additional Features
Harmonic saturation via "CRUSH" button enhances low, mid, and high frequencies distinctly.Output gain adjustment for optimal signal level.Bypass switch for unprocessed signal monitoring.
