DPA KIT 4060-OC-LMK

UPC/EAN #5713055017705 MPN #KIT-4060-OC-LMK

$815.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

d:screet CORE 4060 Lavalier Microphone Kit - includes Holder, Highboostgrid, Soft-boost grid, Adapter for XLR

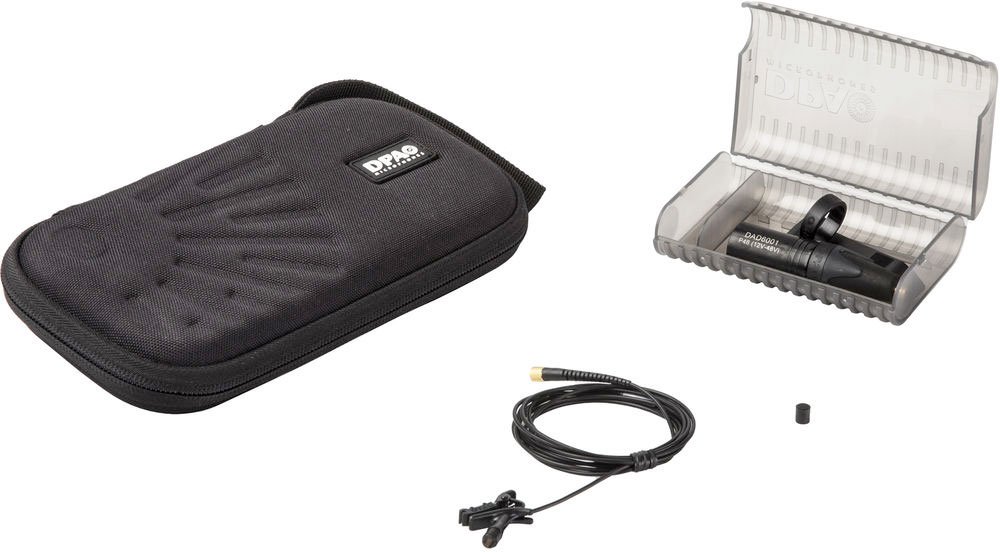

The loud SPL, Black d:screet Core 4060 Microphone Kit from DPA includes a 4060 omnidirectional lavalier microphone, hardwired to a MicroDot connector, a XLR adapter with belt clips, two surface mounts, two magnet mounts, two holders for strings, high- and soft-boost grids, five foam windscreens and a travel case.

Features

Extremely rugged and reliable

Exceptional audio quality

Low noise and high sensitivity

Large selection of accessories

Modular adapter system fits most professional wireless systems

Specifications

Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Effective frequency response: 20 Hz - 20 kHz
Frequency range, ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
Dynamic range - Legacy: Typ. 100 dB
Dynamic range - CORE: Typ. 106 dB
Max. SPL, THD 10%: 134 dB SPL peak
Rated output impedance: 30 - 40
Cable drive capability: Up to 300 m (984 ft)
Power supply (for full performance): For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
Connector: MicroDot
Color: Black
Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter: 5.4 mm (0.21 in)
Microphone length: 12.7 mm (0.5 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40C to 45C (-40F to 113F)
Relative humidity (RH): Up to 90%

Reviews

No reviews. Be the first to write a review

View more products from DPA
