DPA FIO66C03-2
MPN #FIO66C03-2

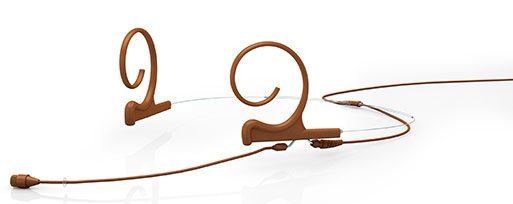

The FIO66X00-2 is a Dual Ear with an Omnidirectional capsule with the lightweight and flexible d:fine Headset system. Long Boom 110mm, Brown colors, 3-pin Lemo connector
This condenser mic is easy and fast to adjust and it offers clean and transparent sound quality with lots of headroom.
Like all of the microphones in the range, the d:fine 66 Headset Microphone offers accurate, natural voice intelligibility and very high SPL capabilities. Users can both speak and sing into the mic with no hint of distortion. The microphone capsule is also optimized for low distortion as well as humidity resistance.
The d:fine 66 Omnidirectional Headset Microphone is available with single- or dual-ear mounts. Single-ear mount variants are the quickest to put on and often the best choice when miking needs to be fast and easy. Dual-ear mount variants sit more securely around the head and are ideal for active performance situations.
Available in black, beige and brown, the d:fine 66 has been ergonomically designed to fit comfortably and easily around the head. This mic adjusts to fit any ear size and head shape while at the same time it mounts securely and is hardly visible. By rotating the boom and the ear hook, the microphone can be easily used on either the left or right ear.
Features
Pristine audio qualityLightweight and flexibleEasy mounting to both the left and rightMinimal visual impactResistant to humidityModular adapter system fits most professional wireless systems
Specifications
Directional characteristics: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ± 2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz.
Sensitivity, nominal, ± 3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
Dynamic range: Typ. 97 dB
Max. SPL, peak before clipping: 144 dB
Output impedance: From MicroDot: 30 - 40 . From DAD6001: 100 .
Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Output balance principle: Signal balanced with DAD6001-BC XLR adapter
Common Mode Rejection Ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter
Connector: 3-pin Lemo
Color: Brown
Microphone diameter: 5.4 mm (0.2 in)
Microphone length: 12.7 mm (0.5 in)
Polarity: Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
Cable length: 1.25 m (4.1 ft)
Cable color: Brown
Cable diameter: 1.6 mm (0.06 in)
Temperature range: -40 to 45C (-40 to 113F)
Relative Humidity (RH): Up to 90%
