DPA 5006A

UPC/EAN #5713055000219 MPN #5006A

$15440.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

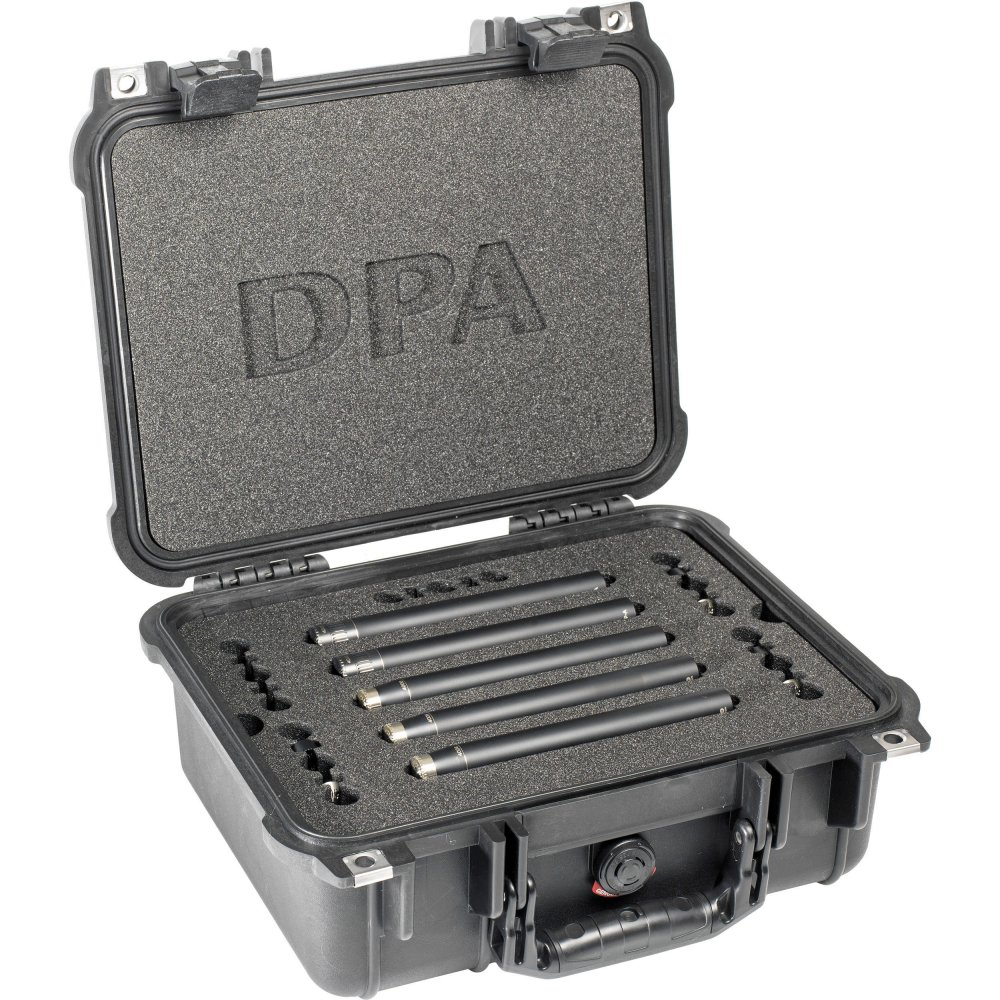

d:mension Surround Kit with 5 x 4006A, Clips, Windscreens in Peli Case

The DPA 5006A is a complete DPA 4006A Surround Kit with five carefully factory-matched omni microphones. Even though the standard tolerances on DPA Reference Standards are extremely low, the surround match is even closer.

The specially selected DPA 4006A microphones are matched within ±0.5 dB on both frequency response and sensitivity from mean of set. The maximum phase response difference is 5.

The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 Hz to 20 kHz (±2 dB) of the microphones make the DPA 4006As the perfect choice for all AB Stereo, Decca Tree or surround main array recordings. The precise reproduction, total transparency and natural-sounding clarity of a DPA 4006A microphone will provide you with a lifetime of satisfying listening.

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory.

Included in this kit
Carefully matched microphones, sturdy Peli case, holders, grids, and windscreens.

Features

Wide pickup area and natural sound

Five carefully matched microphones

Ambience pickup with convenient directionality

Peli? Case transportation and protection

Specifications

Directional pattern: Omnidirectional

Principle of operation: Pressure

Cartridge type: Pre-polarized condenser

Frequency range: 10 Hz - 20 kHz

Frequency range, ± 2 dB: 10 Hz - 20 kHz

Sensitivity, nominal, ± 2 dB at 250 Hz: 40 mV/Pa; -28 dB re. 1 V/Pa

Equivalent noise level, A-weighted: Typ. 15 dB(A) re. 20 µPa (maks. 17 dB(A))

Equivalent noise level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)

S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 79 dB(A)

Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak

Dynamic range: Typ. 124 dB

Max. SPL, peak before clipping: 147 dB

Switchable attenuator: 0 dB / -20 dB

Output impedance: < 200 ohm

Minimum load impedance: 2 kohm

Cable drive capability: 100 m (328 ft)

Output balance principle: Impedance balancing with Active Drive

Common Mode Rejection Ratio (CMRR): > 60 dB

Power supply (for full specifications): 48 V Phantom power (± 4 V)

Current consumption: 2.8 mA

Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

Color: Matte black

Weight: 163 g (5.7 oz)

Microphone diameter: 16 - 19 mm (0.6 - 0.75 in)

Capsule diameter: 16 mm (0.6 in)

Microphone length: 170 mm (6.7 in)

Output voltage, RMS: > 5 V

Polarity: +V at pin 2 for positive sound pressure

Temperature range: -40 C to 50 C (-40 F to 122 F)

Relative Humidity (RH): Up to 90%

Matching tolerance (freqency response, sensitivity): ± 0.5 dB

Phase deviation for kit: < 5
