DPA 4166-OP-F-F34-LE

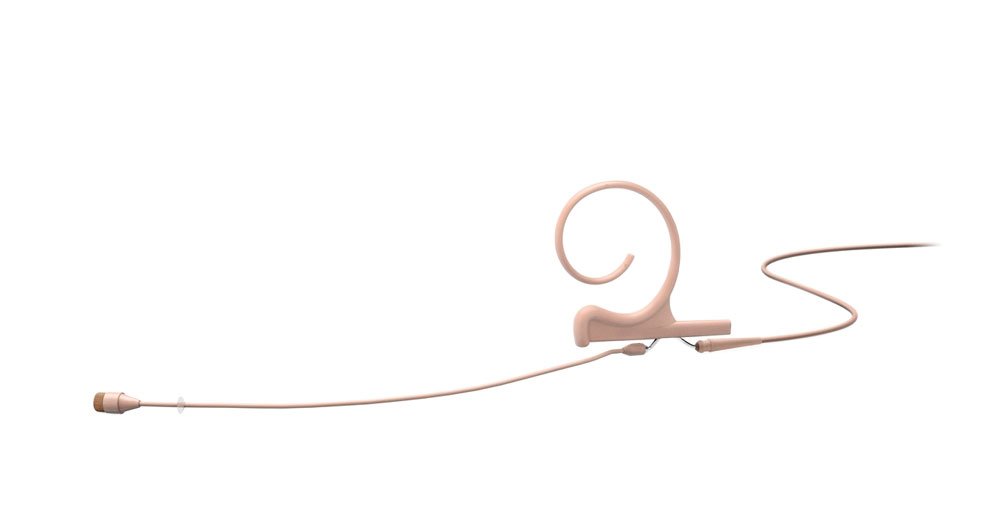

4166 CORE+ Omni Flex Earset Mic, 110 mm Boom, Beige, Mini-Jack
The DPA 4166 CORE+ Omnidirectional Flex Earset Microphone in beige, featuring a 110 mm boom and Mini-Jack connector, combines high-end audio performance with discreet, comfortable design. Tailored for presentations, performances, and broadcast settings, this single-ear earset is lightweight, quick to fit, and blends naturally against light skin tones for minimal visibility.
Powered by CORE+ technology, the microphone ensures ultra-low distortion and delivers clear, natural voice reproduction across the full dynamic range. Its omnidirectional pickup captures consistent, even sound with freedom of movement, making it ideal for active use. The Mini-Jack connector allows for broad compatibility with popular wireless systems, offering a reliable and elegant solution for professional voice applications.
Features
Omnidirectional Pickup Pattern: Captures voice naturally from all directions for clear, transparent sound.CORE+ Technology: Provides distortion-free audio with exceptional clarity and low noise.4060 Capsule Integration: Delivers the trusted sound quality of DPA's industry-standard miniature microphone.110 mm Boom Arm: Offers reliable mic positioning for consistent and stable voice pickup.Beige Finish for Discreet Appearance: Blends with skin tones, making it ideal for on-stage or camera use.Mini-Jack Connector: Compatible with wireless systems that use locking 3.5 mm mini-jack inputs.Lightweight and Comfortable Design: Flexible earset adjusts for a secure fit on either ear with minimal visual impact.Quick Setup and Use: Perfect for fast-paced environments like conferences, theater, or live events.Sweat and Humidity Resistant: Built to perform reliably in active or high-moisture conditions.Modular Cable System: Enables quick replacement or adaptation for different wireless setups.
Specifications
General Specifications
Model: 4166 CORE PlusType: Omnidirectional Flex Earset MicrophoneBoom Length: 110 mmColor: BeigeMounting Style: Single-ear Flex EarsetConnector: Mini-JackCapsule Type: 4060 omnidirectional capsule
Audio Performance
Directional Pattern: OmnidirectionalPrinciple of Operation: PressureCartridge Type: Pre-polarized condenserFrequency Response: 20 Hz to 20 kHzEffective Frequency Range +/-2 dB: 40 Hz to 20 kHz with 3 dB soft boost at 8 to 15 kHzSensitivity: 6 mV/Pa, -44 dB re 1 V/PaEquivalent Noise Level A-weighted: Typically 26 dB(A), maximum 28 dB(A)Equivalent Noise Level ITU-R BS468-4: Typically 38 dB, maximum 40 dBDistortion THD less than 1 percent: 134 dB SPL RMS, 137 dB SPL peakMaximum SPL THD 10 percent: 144 dB SPL peakDynamic Range: Typically 111 dB
Electrical Characteristics
Output Impedance from MicroDot: 30 to 40 ohmsOutput Impedance with DAD6001-BC: 100 ohmsCable Drive Capability: Up to 300 meters with DAD6001-BC XLR adapterOutput Balance Principle: Signal balanced with DAD6001-BC XLR adapterCommon Mode Rejection Ratio: Greater than 60 dB from 50 Hz to 15 kHz with DAD6001-BCPower Supply via Adapter: Minimum 5 V, maximum 10 VPower Supply with DAD6001-BC: P48 phantom power, operational from 12 VCurrent Consumption: Typically 1.5 mA microphone only, 3.5 mA with DAD6001-BC
CORE Plus Technology
Distortion Reduction: Minimizes nonlinearities in capsule and circuitryAudio Fidelity: Enhanced clarity and transparency across the dynamic rangeTHD Benchmark: Less than 0.5 percentCompatibility: Fully compatible with DPA's CORE and legacy systems
Physical Characteristics
Microphone Boom Weight: 0.8 gramsEarhook Weight: 1.1 gramsCable Weight: 6.6 gramsTotal Weight: 8.5 gramsMicrophone Diameter: 5.4 mmCable Length: 1.3 metersCable Diameter: 1.6 mm
Environmental
Operating Temperature Range: Minus 40 to 45 degrees CelsiusRelative Humidity: Up to 90 percentElectromagnetic Compatibility: Fully compliant
Application Suitability
Designed for speech, presentation, broadcast, and theater applicationsLightweight, ergonomic design for discreet, secure wear on either earDelivers pristine vocal capture with minimal visual impactCompatible with wireless systems using mini-jack connectors
