MPN #4088-DP-A-C10-LH
DPA 4088-DP-A-C10-LH

$1264.00

Financing available
Free shipping in Canada. Conditions

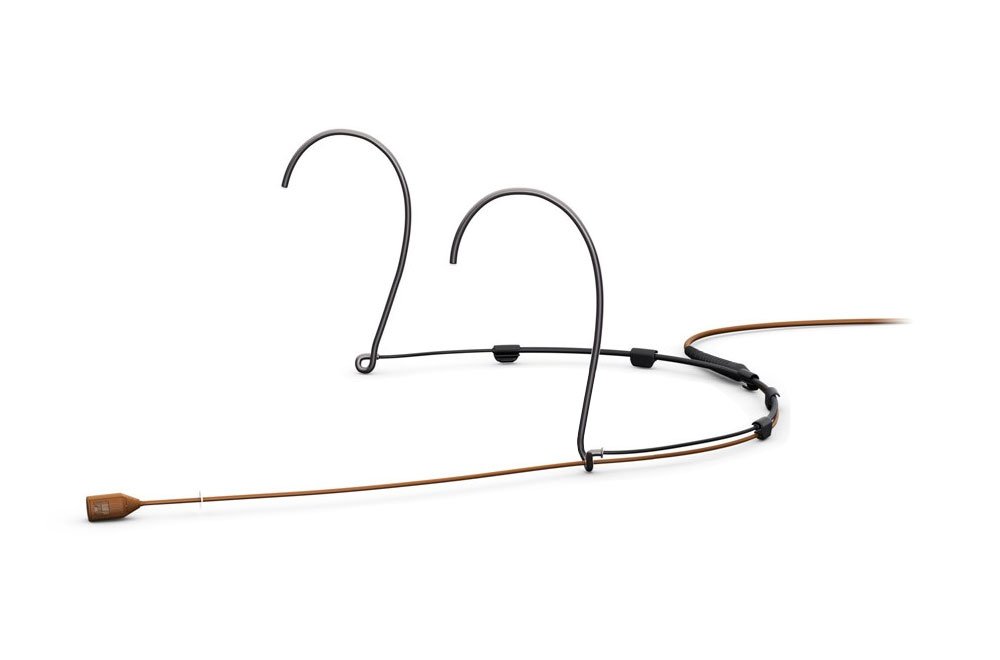

d:fine CORE+ 4088 directional headset mic, brown, TA4F Mini-XLR connector included



The 4088-DP-A-C10-LH is a brown 4088 CORE+ directional headset microphone with a TA4F Mini-XLR connector, offering a discreet, high-performance audio solution for professional wireless systems. Ideal for theatrical productions, live presentations, and house of worship settings, this headset is engineered to deliver focused voice capture while blending naturally with a range of skin tones for low visual impact on stage or camera.

Featuring DPA's acclaimed CORE+ technology, the mic provides a wide dynamic range and ultra-low distortion, capturing vocals with exceptional clarity and accuracy. Its cardioid pickup pattern ensures excellent off-axis rejection, making it highly effective in minimizing background noise and feedback in noisy or reflective acoustic environments. The dual-ear headset offers a stable and comfortable fit, with an adjustable boom that can be positioned on either side. Built to endure professional use, the 4088-DP-A-C10-LH is moisture-resistant and structurally robust, ensuring reliable operation throughout demanding performances.
  • Directional Supercardioid Microphone: Isolates the speaker's voice while reducing ambient noise-ideal for live or high-noise environments.
  • CORE+ Technology for Clear Sound: Delivers low-distortion audio with a wide dynamic range for professional-grade performance.
  • TA4F Mini-XLR Connector: Provides a secure, dependable connection with wireless systems using TA4F input.
  • Durable and Moisture-Resistant: Built with water-resistant materials for consistent reliability during active use or in humid conditions.
  • Adjustable Boom Arm: Reversible design allows the mic to be worn on either side for a custom fit.
  • Discreet Brown Finish: Blends naturally with skin tones-ideal for theater, stage, or on-camera applications.
  • Model
  • 4088 DP A C10 LH

  • Microphone Type
  • Directional headset microphone
  • Cardioid polar pattern
  • Pressure gradient operation principle
  • Pre polarized condenser capsule

  • Frequency Response
  • 100Hz to 20kHz
  • 2 to 4dB soft boost at 10 to 12kHz

  • Sensitivity and Noise
  • Sensitivity 6mV per Pa minus 44dB re 1V per Pa
  • Equivalent noise level A weighted typically 26dB A max 28dB A
  • Equivalent noise level ITU R BS.468 4 typically 38dB max 40dB

  • Distortion and SPL Handling
  • THD less than 1 percent up to 138dB SPL peak
  • Max SPL at 10 percent THD 144dB SPL peak
  • Dynamic range typically 111dB

  • Impedance and Connectivity
  • Rated output impedance 30 to 40 ohms
  • Cable drive capability up to 300 meters with DAD6001 BC XLR adapter
  • Connector type TA4F Mini XLR

  • Power Requirements
  • Wireless systems 5V to 10V through DPA adapter
  • With DAD6001 BC P48 phantom power or will work from 12V
  • Current consumption typically 1.5mA microphone 3.5mA with DAD6001 BC

  • Physical Specifications
  • Weight 14 grams including cable and connector
  • Microphone diameter: 5.4mm
  • Cable length: 1.2 meters
  • Cable diameter: 1.6mm
  • Color: brown

  • Environmental
  • Temperature range minus 40 to 45 degrees Celsius
  • Relative humidity up to 90 percent

  • Design Features
  • Detachable mic boom for left or right side configuration
  • Double vent protection system with drop stopper
  • Water resistant internal construction
  • CORE plus technology for reduced distortion and enhanced clarity
  • Microphone polarity positive pressure gives positive voltage on TA4F pin
