DPA 4088-DP-A-B34-LH
MPN #4088-DP-A-B34-LH

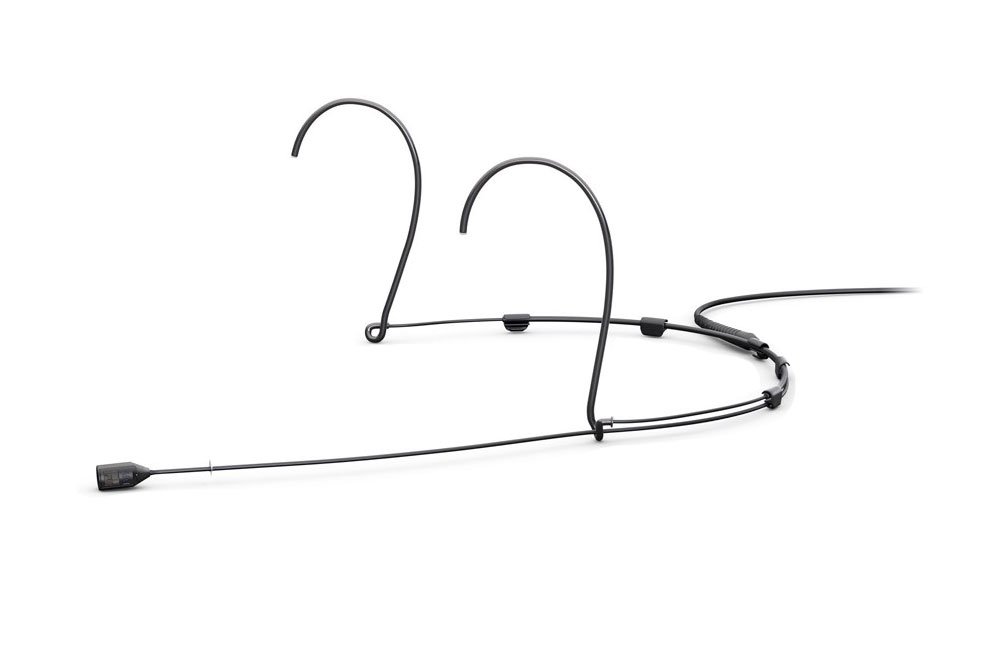

d:fine CORE+ 4088 directional headset mic, black, mini-jack connector included
The 4088-DP-A-B34-LH is a black 4088 CORE+ directional headset microphone featuring a standard mini-jack connector, designed for wireless systems with 1/8" (3.5mm) mic inputs. Engineered for professional applications where voice clarity and ambient noise rejection are critical, this headset is a top choice for presenters, speakers, and performers in live, studio, or corporate AV environments.
With DPA's CORE+ technology, the 4088 delivers clean, detailed sound with a broad dynamic range and extremely low distortion, even at elevated sound pressure levels. Its cardioid pickup pattern focuses tightly on the speaker's voice, reducing feedback and minimizing pickup of surrounding noise-making it ideal for loud or acoustically complex spaces. The dual-ear frame ensures secure and comfortable wear during extended use, and the adjustable boom allows for flexible mic positioning. Rugged, moisture-resistant construction ensures the 4088-DP-A-B34-LH performs consistently in professional, high-stress environments.
Features
Directional Supercardioid Pickup: Focuses on the speaker's voice while minimizing background noise-perfect for live or noisy environments.CORE+ Technology for Precision Audio: Ensures low distortion and consistent clarity across a wide dynamic range.Mini-Jack Connector: Compatible with wireless systems using a standard 1/8" (3.5mm) input.Moisture-Resistant Design: Engineered with water-resistant materials for reliable performance in active or high-humidity settings.Reversible Boom for Custom Fit: Boom arm can be worn on either side for comfort and optimal mic placement.Low-Visibility Black Finish: Professional look suited for theater, broadcast, and presentations.
Specifications
Model
4088 DP A B34 LH
Microphone Type
Directional headset microphoneCardioid polar patternPressure gradient operation principlePre polarized condenser capsule
Frequency Response
100Hz to 20kHz2 to 4dB soft boost at 10 to 12kHz
Sensitivity and Noise
Sensitivity 6mV per Pa minus 44dB re 1V per PaEquivalent noise level A weighted typically 26dB A max 28dB AEquivalent noise level ITU R BS.468 4 typically 38dB max 40dB
Distortion and SPL Handling
THD less than 1 percent up to 138dB SPL peakMax SPL at 10 percent THD 144dB SPL peakDynamic range typically 111dB
Impedance and Connectivity
Rated output impedance 30 to 40 ohmsCable drive capability up to 300 meters with DAD6001 BC XLR adapterConnector type Mini Jack
Power Requirements
Wireless systems 5V to 10V through DPA adapterWith DAD6001 BC P48 phantom power or will work from 12VCurrent consumption typically 1.5mA microphone 3.5mA with DAD6001 BC
Physical Specifications
Weight 14 grams including cable and connectorMicrophone diameter: 5.4mmCable length: 1.2 metersCable diameter: 1.6mmColor: black
Environmental
Temperature range minus 40 to 45 degrees CelsiusRelative humidity up to 90 percent
Design Features
Detachable mic boom for left or right side configurationDouble vent protection system with drop stopperWater resistant internal constructionCORE plus technology for reduced distortion and enhanced clarityMicrophone polarity positive pressure gives positive voltage on Mini Jack pin
