DPA 4080-DC-D-B10

UPC/EAN #5713055019471 MPN #4080-DC-D-B10

$928.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

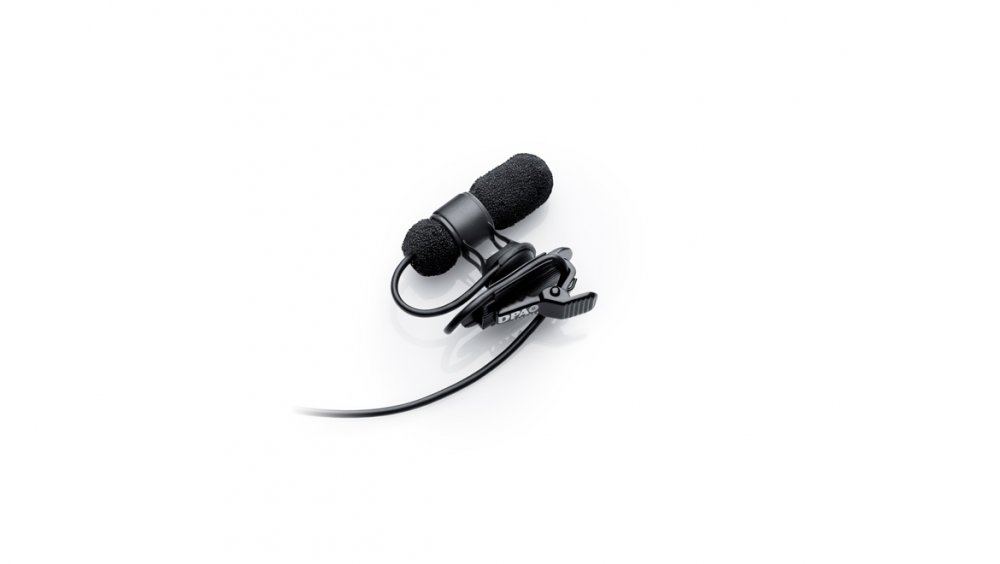

DPA Microphones d:screet Core 4080 Miniature Cardioid Lavalier Microphone, Black with a Hardwired TA4F Connector for Shure Wireless Systems

The 4080-DL-D-B10 Miniature Cardioid Lavalier Microphone with a Hardwired TA4F Connector for Shure Wireless Systems from DPA Microphones is designed for speech reproduction in broadcast, conference, and live applications in the studio or the field. It features a pre-EQ'd 4dB presence boost to help accentuate vocals and the speaking range. The 4080 can be clipped to both left- and right-buttoned shirts and includes black and white pop filters.

Features

Excellent speech reproduction

Discreet, compact design

Fits both left and right buttoned shirts

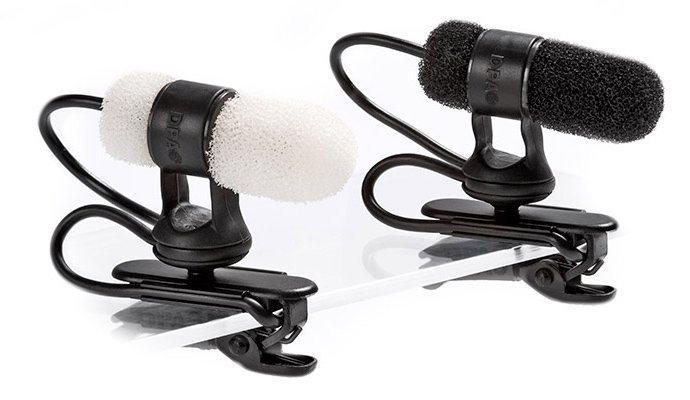

Delivered with both black and white pop filters

Modular adapter system fits most professional wireless systems

Pre-EQ'd 4dB Presence Boost

Specifications

Directional characteristics: Cardioid

Principle of operation: Pressure gradient

Cartridge type: Pre-polarized condenser element with vertical diaphragm

Frequency range, ± 2 dB: 250 Hz - 17 kHz with typ. 4 dB soft boost at 4 - 6 kHz (-5 dB at 100 Hz)

Sensitivity, nominal, ±3 dB at 1 kHz:: 20 mV/Pa; -34 dB re. 1 V/Pa

Equivalent noise level A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))

S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)

Total harmonic distortion (THD): < 1 % up to 123 dB SPL peak, < 1 % up to 120 dB SPL RMS sine

Dynamic range: Typ. 100 dB

Max. SPL, peak before clipping: 134 dB

Output impedance: 30 - 40 ohm

Power supply: For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance.

Connector: Hardwired TA4F

Color: Black

Microphone weight: 15 g (0.5 oz) incl. cable and MicroDot connector

Microphone diameter: 10 mm (0.4 in)

Capsule diameter: 5.4 mm (0.2 in)

Microphone length: 30 mm (1.2 in)

Cable length: 1.2 m (4 ft)

Cable color: Black

Cable diameter: 1.6 mm (0.06 in)

Cable drive capability: Up to 300 m (984 ft)

Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin

In the Box

DPA Microphones d:screet Core 4080 Miniature Cardioid Lavalier Microphone with a Hardwired TA4F Connector for Shure Wireless Systems, Black color

Black Pop Filter

White Pop Filter
