MPN #4066-OP-A-C90-LH
DPA 4066-OP-A-C90-LH

$1072.00

Financing available
Free shipping in Canada. Conditions

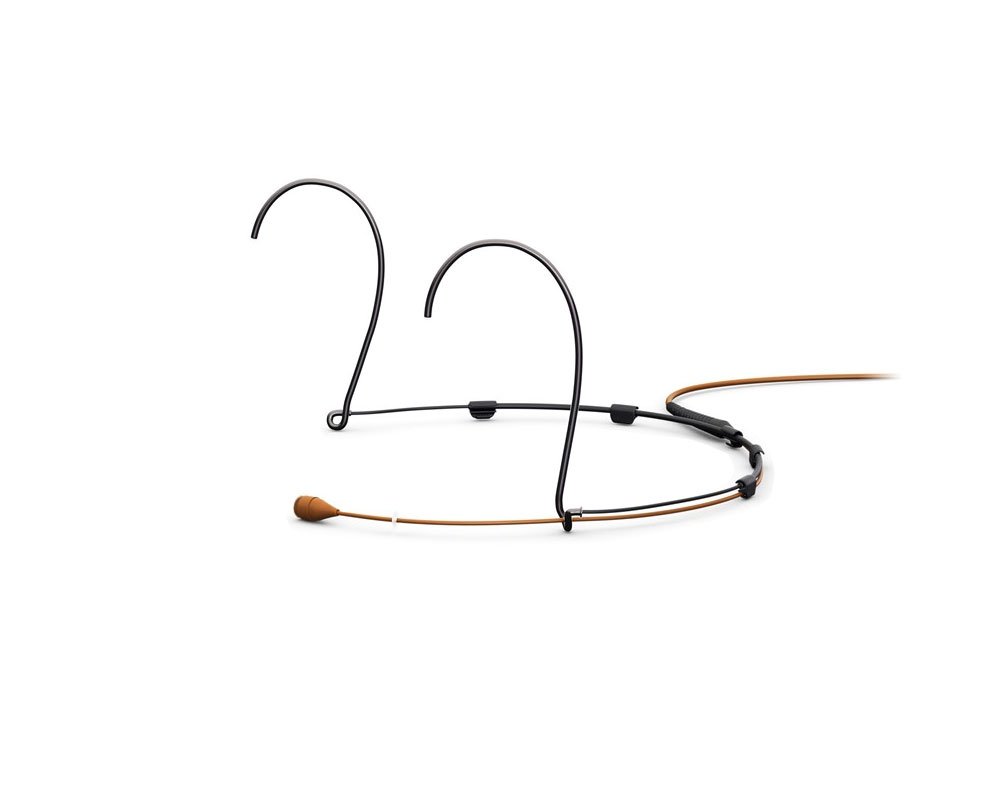

d:fine CORE 4066 omnidirectional headset mic, brown, MicroLock connector included



The 4066-OP-A-C90-LH is a brown CORE+ omnidirectional headset microphone featuring a secure MicroLock connector, offering an exceptional blend of audio fidelity and stage-ready discretion. Designed for wireless systems in theatrical productions, live presentations, and broadcast environments, this model combines professional-grade sound with a finish that blends subtly against most skin tones for low-visibility applications.

Powered by DPA's CORE+ technology, the mic ensures pristine sound with ultra-low distortion and a broad dynamic range, handling even high-volume vocals with ease. Its dual-ear headset frame provides a stable and comfortable fit, while the boom arm can be repositioned for left or right-side use. Built for durability, the 4066-OP-A-C90-LH features a water-resistant capsule, a double-vent protection system, and a rugged MicroLock connector that guarantees a secure and dependable connection throughout demanding performances.
  • Clear, Natural Voice Capture: Delivers transparent sound ideal for speech, performance, and professional presentations.
  • CORE+ Technology for Precision: Maintains consistent audio quality with reduced distortion across all levels.
  • MicroLock Connector: Provides a secure, reliable connection for demanding wireless setups.
  • Moisture-Resistant Build: Features double-vent protection and water-resistant materials for durability in humid conditions.
  • Reversible Boom Arm: Mic boom can be positioned on either side for comfort and flexibility.
  • Low-Profile Brown Finish: Designed to stay discreet in theater, broadcast, and live environments.
  • Model
  • 4066 OP A C90 LH

  • Microphone Type
  • Omnidirectional headset microphone
  • Pressure operation principle
  • Pre polarized condenser capsule

  • Frequency Response
  • 20Hz to 20kHz
  • Soft boost grid 40Hz to 20kHz with 3dB boost at 8 to 20kHz
  • High boost grid 40Hz to 20kHz with 10dB boost at 12kHz

  • Sensitivity and Noise
  • Sensitivity 6mV per Pa minus 44dB re 1V per Pa
  • Equivalent noise level A weighted typically 26dB A max 28dB A
  • Equivalent noise level ITU R BS.468 4 typically 38dB max 40dB

  • Distortion and SPL Handling
  • THD less than 0.5 percent up to 133dB SPL RMS 136dB SPL peak
  • THD less than 1 percent up to 136dB SPL RMS 139dB SPL peak
  • Max SPL at 10 percent THD 144dB SPL peak
  • Dynamic range typically 111dB

  • Impedance and Connectivity
  • Rated output impedance 30 to 40 ohms
  • Cable drive capability up to 300 meters with DAD6001 BC XLR adapter
  • Connector type MicroLock

  • Power Requirements
  • Wireless systems 5V to 10V through DPA adapter
  • With DAD6001 BC P48 phantom power or will work from 12V
  • Current consumption typically 1.5mA microphone 3.5mA with DAD6001 BC

  • Physical Specifications
  • Weight 14 grams including cable and connector
  • Microphone diameter 5.4mm
  • Cable length 1.2 meters
  • Cable diameter 1.6mm
  • Color brown

  • Environmental
  • Temperature range minus 40 to 45 degrees Celsius
  • Relative humidity up to 90 percent

  • Design Features
  • Detachable mic boom for left or right side configuration
  • Double vent protection system with drop stopper
  • Water resistant internal construction
  • CORE plus technology for distortion neutralization across dynamic range
  • MicroLock connector system for secure and flexible attachment
  • Microphone polarity positive pressure gives positive voltage on MicroLock pin
